Universal Stage Series C1 Sport Yellow Wide Standard ABL LED Pod (DIODD6443P)

When you need effective auxiliary lighting that fits where other pods cannot, the Stage Series SSC1 Yellow Sport Wide Pods offer the perfect balance of compact size and functional output. These single-LED pods are designed for maximum versatility, featuring a Wide beam pattern that spreads light across a full 50-degree horizontal field while maintaining a tighter 20-degree vertical spread. This makes them an excellent choice for general illumination, ditch lights, or supplemental lighting on motorcycles and UTVs. By utilizing a high-intensity LED chip paired with custom-engineered Total Internal Reflection optics, the SSC1 Sport captures every lumen and directs it forward with incredible efficiency. The selective yellow output is a tactical advantage in dust, rain, or fog, providing high contrast and reduced glare. To top it off, these pods include a brilliant amber backlight that fully illuminates the internal optic, giving your vehicle a modern, premium look even when the main beam is off.

Features

• Ultra-Compact Versatility: Single-LED form factor enables mounting in tight spots where traditional 3-inch pods simply will not fit.
• Advanced TIR Optics: Custom-molded Total Internal Reflection technology serves as both the optic and the main lens, providing significantly higher efficiency than standard reflector designs.

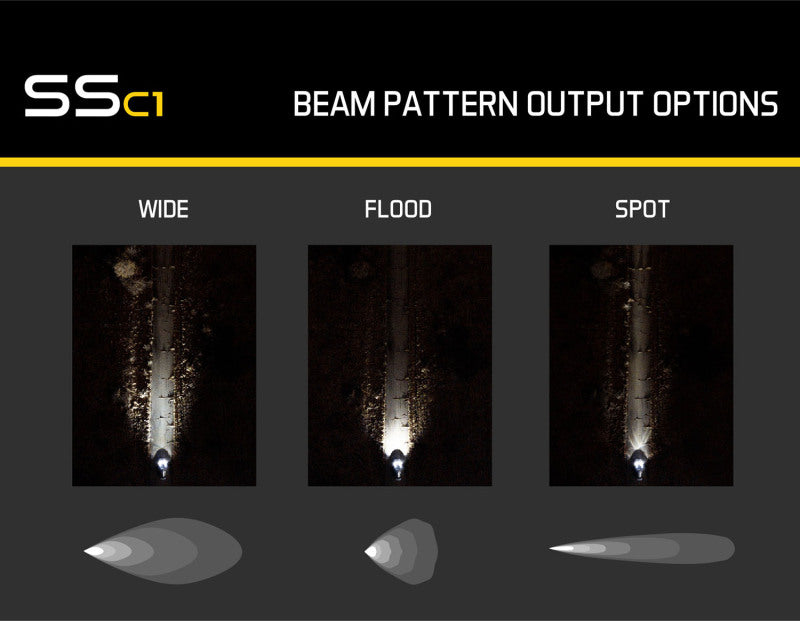

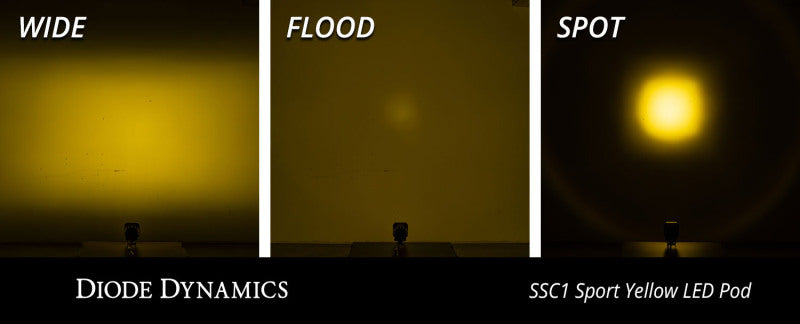

• Functional Wide Pattern: Projects a 50x20 degree beam that fills out the surrounding area with a slight punch, perfect for general illumination and improved peripheral vision.

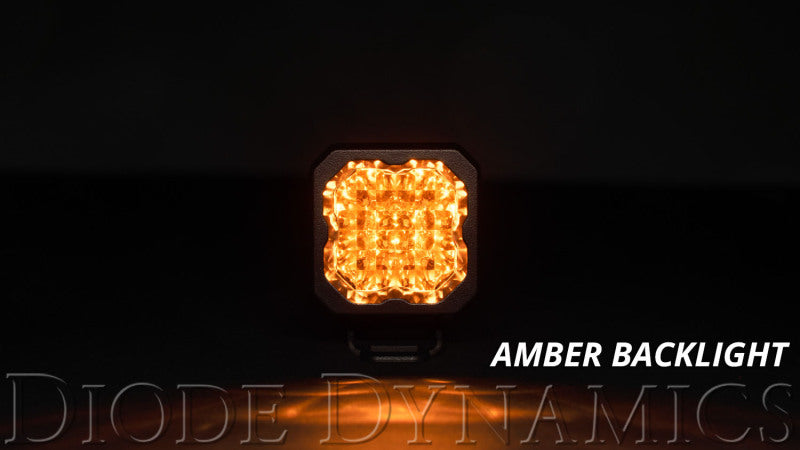

• Amber Backlight Accent: Includes an integrated secondary amber glow that fully illuminates the TIR optic, functioning as a stylish marker light or accent.
• Proven Reliability: Designed and assembled in the USA with a powdercoated aluminum housing and thick polycarbonate lens, torture-tested to withstand extreme off-road conditions.

Specs

• Traffic Pattern : Wide
• Beam Spread : 50 x 20 Degrees
• Color Temperature : 3000K (Selective Yellow)
• Measured Output : 1,000 Lumens
• Peak Beam Intensity : 2,400 Candela
• Wattage : 12.8W (Main Beam), 0.3W (Backlight)
• Current Draw : 1A @ 12.8V
• Operating Voltage : 9-16V
• Materials : Aluminum Casting with Polycarbonate Lens
• Weather Rating : IP69K Waterproof and High Pressure Rated

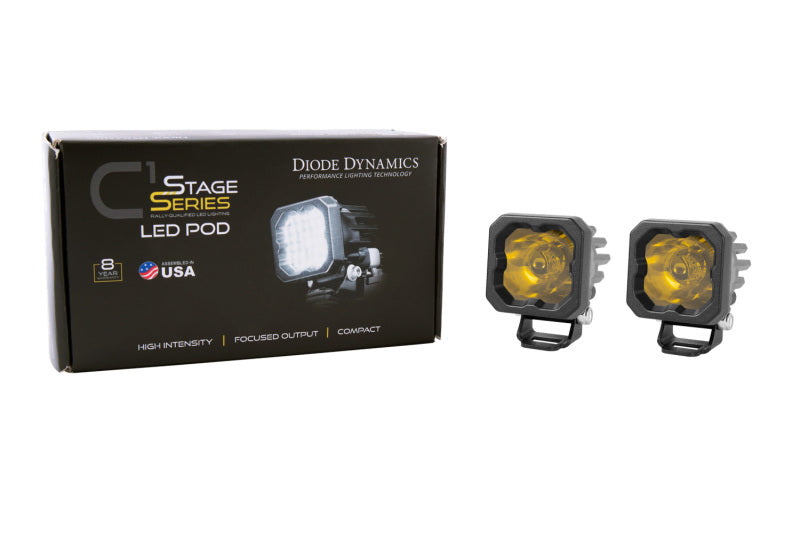

Includes

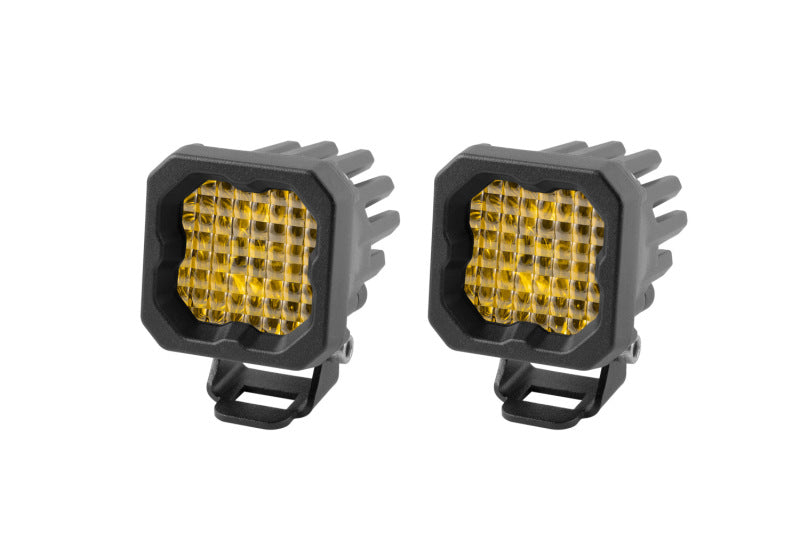

• LED Pods : One Pair of SSC1 2 inch Sport LED Pods
• Brackets : Two Universal mounting brackets and stainless steel hardware
• Pigtails : Two Deutsch-style wire pigtails with bare leads

Notes

• Wide beam pattern is intended for off-road or auxiliary use only
• Amber backlight requires a separate 12V power source tap if not using a dedicated Diode Dynamics harness
