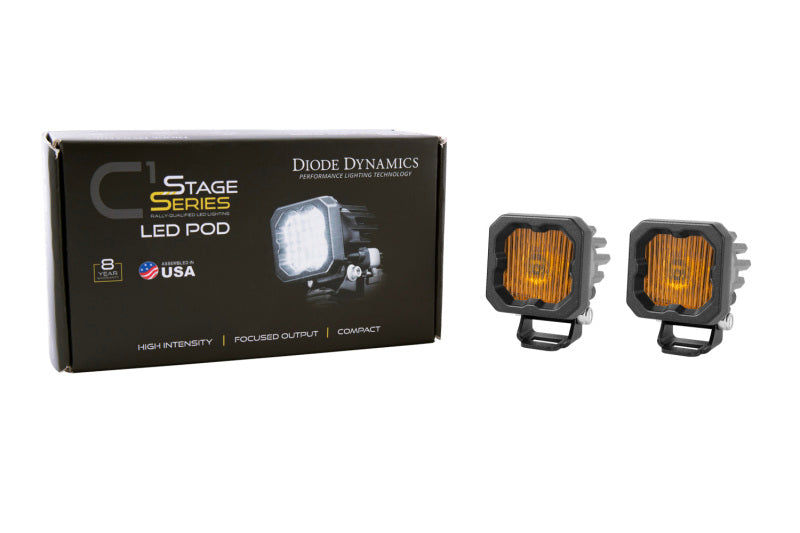

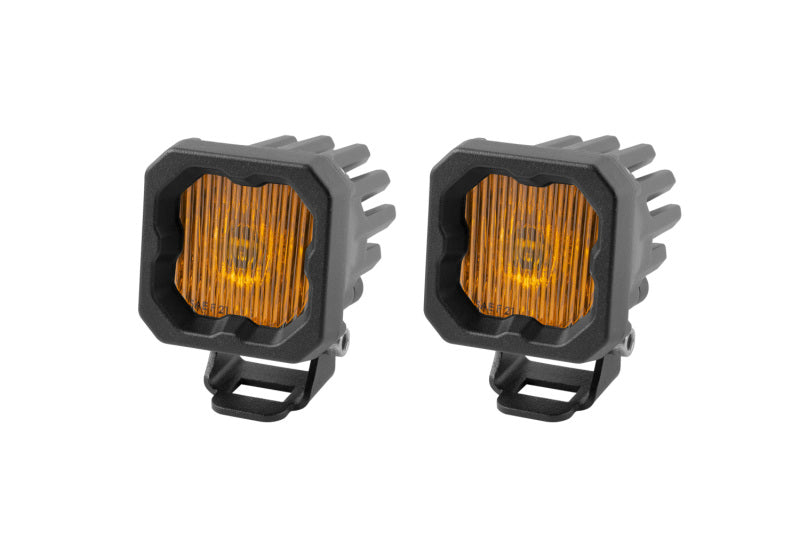

Universal Stage Series C1 LED Pod Yellow SAE Fog Standard ABL Pair (DD6848P)

Description

Introducing the Stage Series C1 LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output, in our most compact, versatile package yet. The SSC1 can be mounted virtually anywhere on your car, truck, motorcycle, or UTV, including spots where larger LED pods won't fit.

Features

• Ultra-compact, single-LED form factor
• SAE-compliant, road-legal output
• Single automotive-grade Osram HX Boost 20-watt LED
• Backlighting in a brilliant amber color
• Integrated Deutsch-style connector
• Designed, torture-tested and assembled in USA

Specifications

• Raw Lumens: 1,980
• Intensity (cd): 4,200 cd
• Color Temperature (CCT): 3000K
• Beam Angle: Fog, 98°x9°
• Power (Watts): Main Beam: 19.2W, Backlight: 0.3W
• Operating Voltage: 9-16V
• Current (Amps @ 12.8V): Main Beam: 1.5A, Backlight: 0.025A
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Osram Boost HX
• Connectors: Deutsch DT Input
• Driver Features: Constant Current
• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive Pin-Fin Heatsink
• Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
• Intrusion Ratings: IP69K Waterproof, High Pressure Rated
