2019-2024 Ram 1500 Stage Series Reverse Light Kit (DIODD7592)

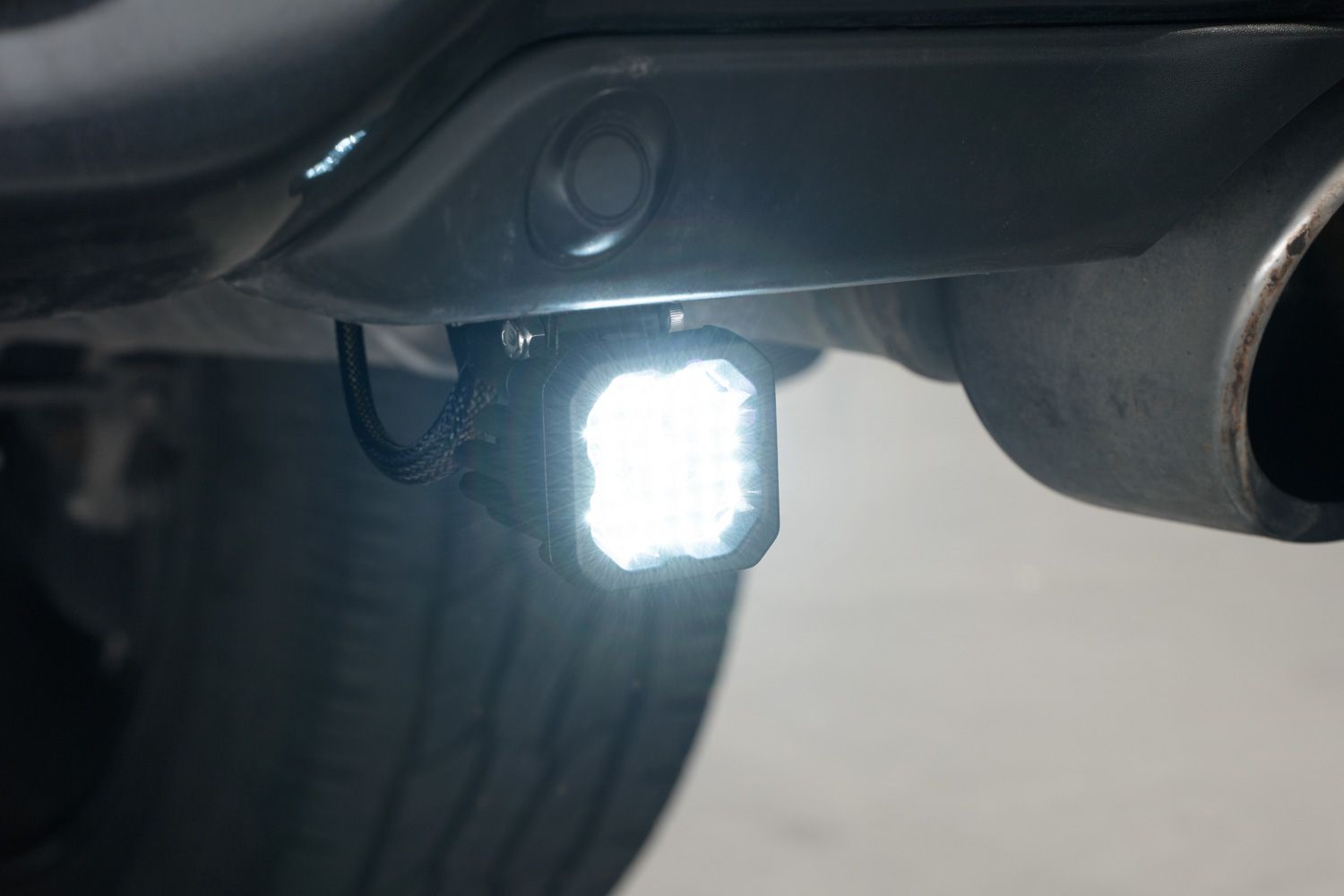

Boost your backup visibility with the Stage Series Reverse Light Kit for the Ram 1500. This kit features two high-power C2 2.0 LED pods that provide significantly more light output than factory reverse bulbs. Designed for seamless integration, the system includes a distinctive red backlight that functions as an additional running light with your tail lights, automatically switching to high-power white output when you shift into reverse. With patented TIR optics and a durable, fanless design, this kit offers professional-grade illumination in an easy-to-install package.

Features

• Custom-engineered TIR optics collect and direct light for maximum efficiency

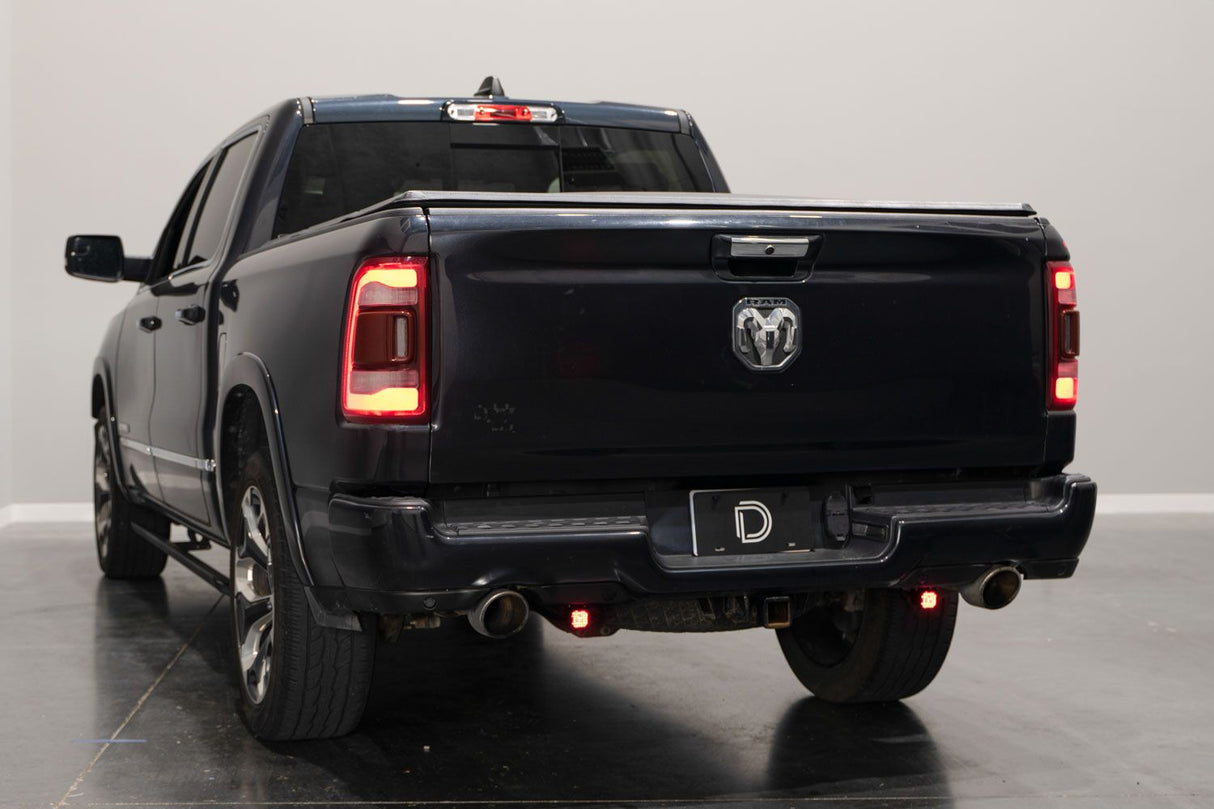

• Provides high-power white reverse light and a vibrant red accent running light
• Flood beam pattern features pillow optics for a true 70x45 degree even spread
• Constant-current inductive circuitry with transient protection for long-term reliability
• Passive pin-fin heatsink design for effective thermal management without noisy fans
• IP69K waterproof and high-pressure intrusion rated for extreme durability
• Completely plug-and-play installation using factory trailer hitch wiring
• Bolt-on mounting requires no cutting or modification to the factory bumper

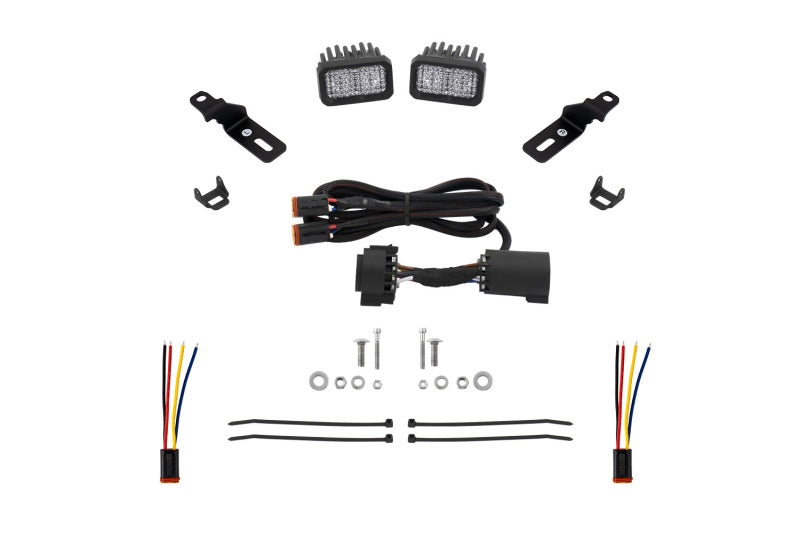

Includes

• Two (2) Stage Series C2 2.0 Sport LED Pods
• One (1) Trailer reverse light wiring harness
• Two (2) Vehicle-specific mounting brackets
• Mounting hardware
• Installation guide

Notes

• This kit is not compatible with trucks equipped with a factory tailgate step in the mounting location.
• On TRX and Rebel trim levels, the mounting brackets must be flipped during installation to avoid interference with the exhaust.
• To manually override and turn on the main beam at any time, an additional universal backup harness is required.
