2019-2025 Ranger and 2022-2025 Frontier Short Bed IBEX A3 Bed Rack Lighting Kit (DD8726)

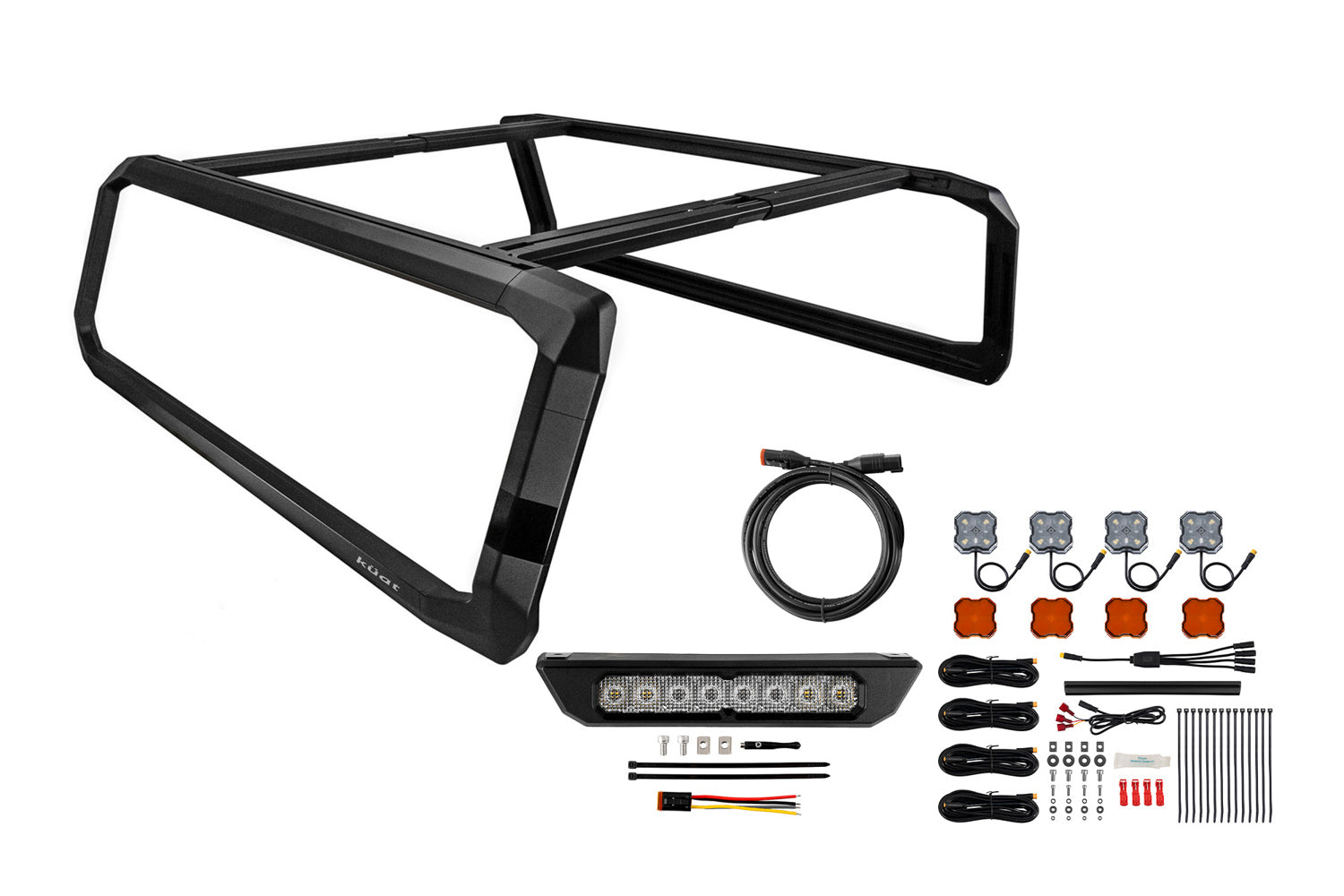

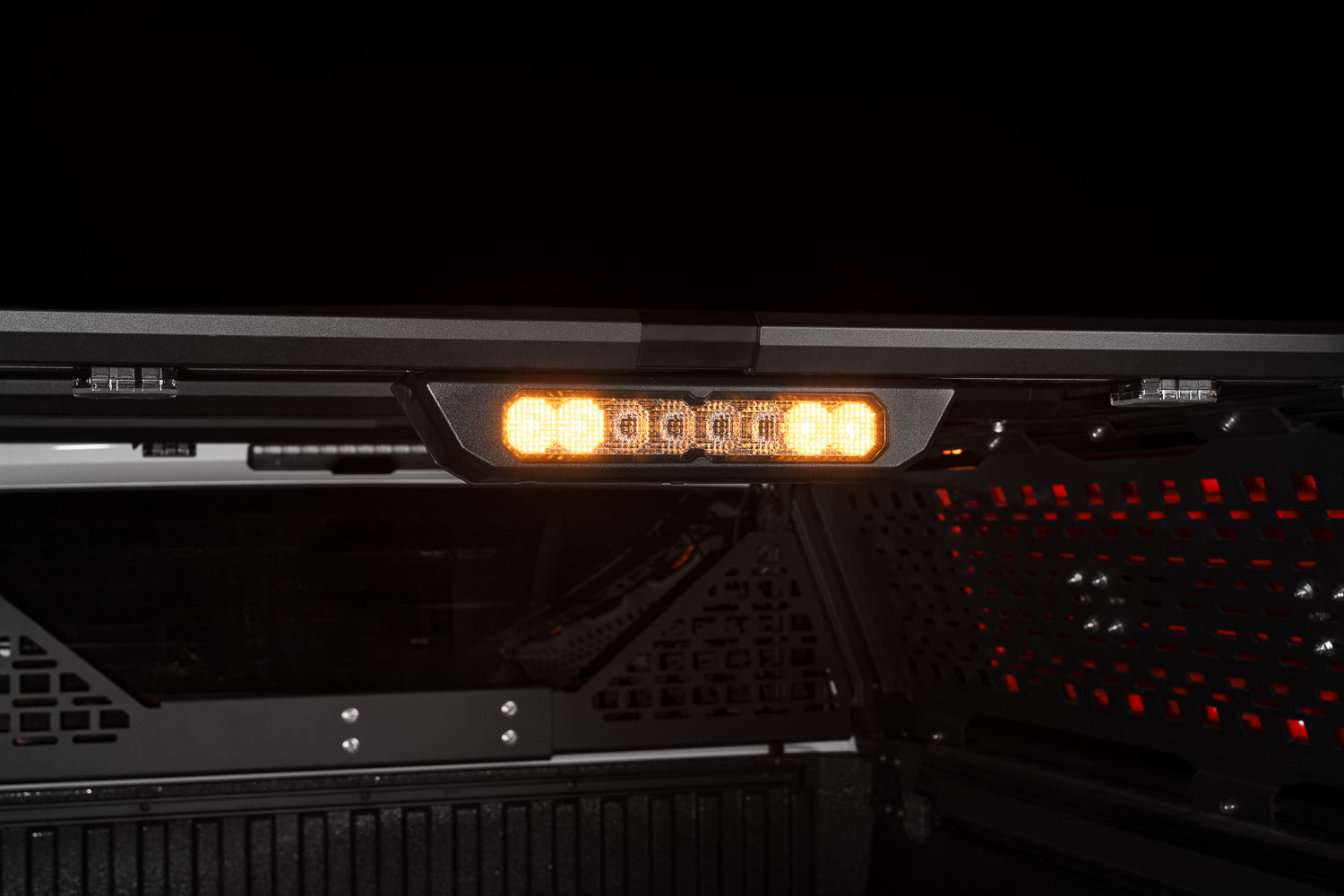

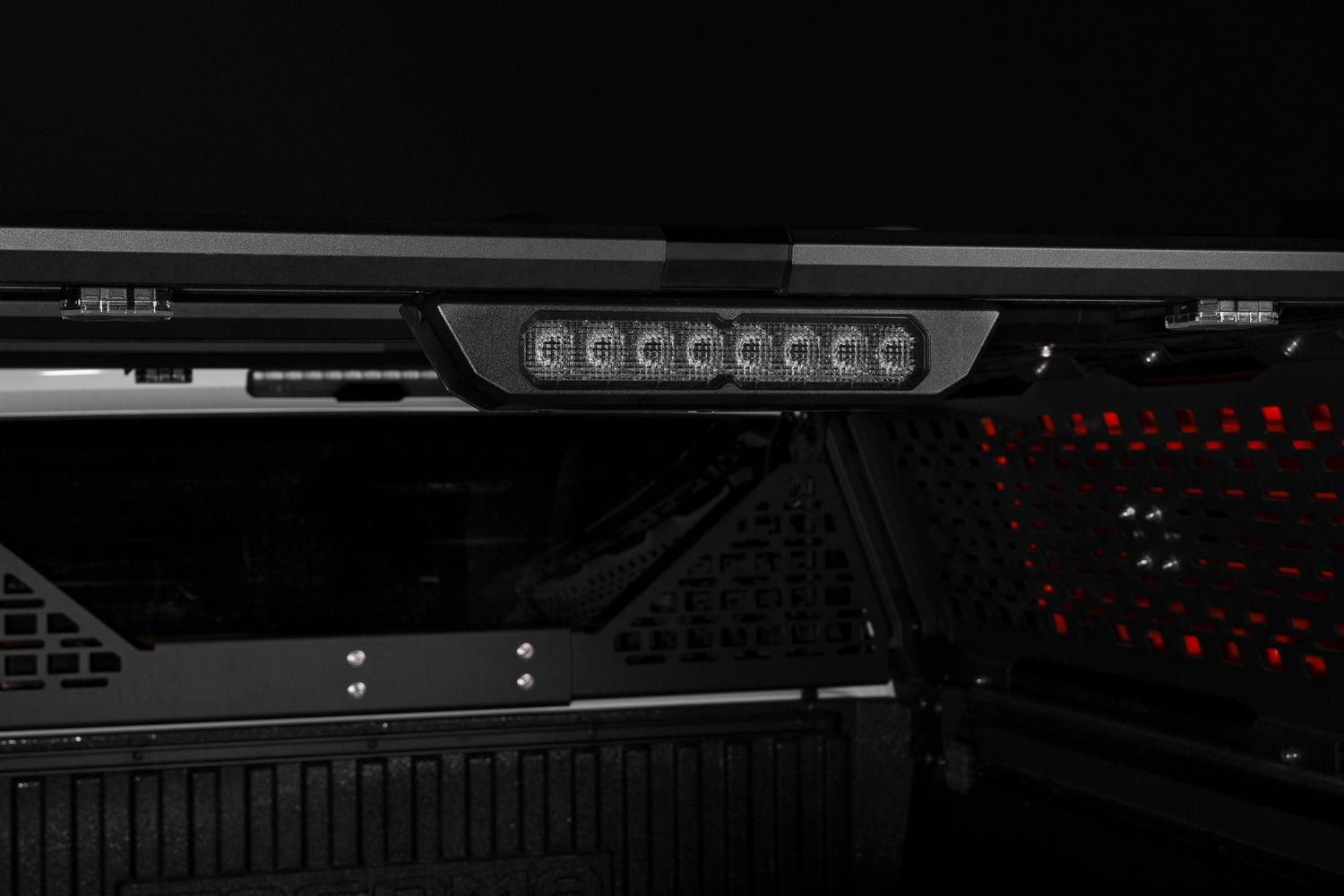

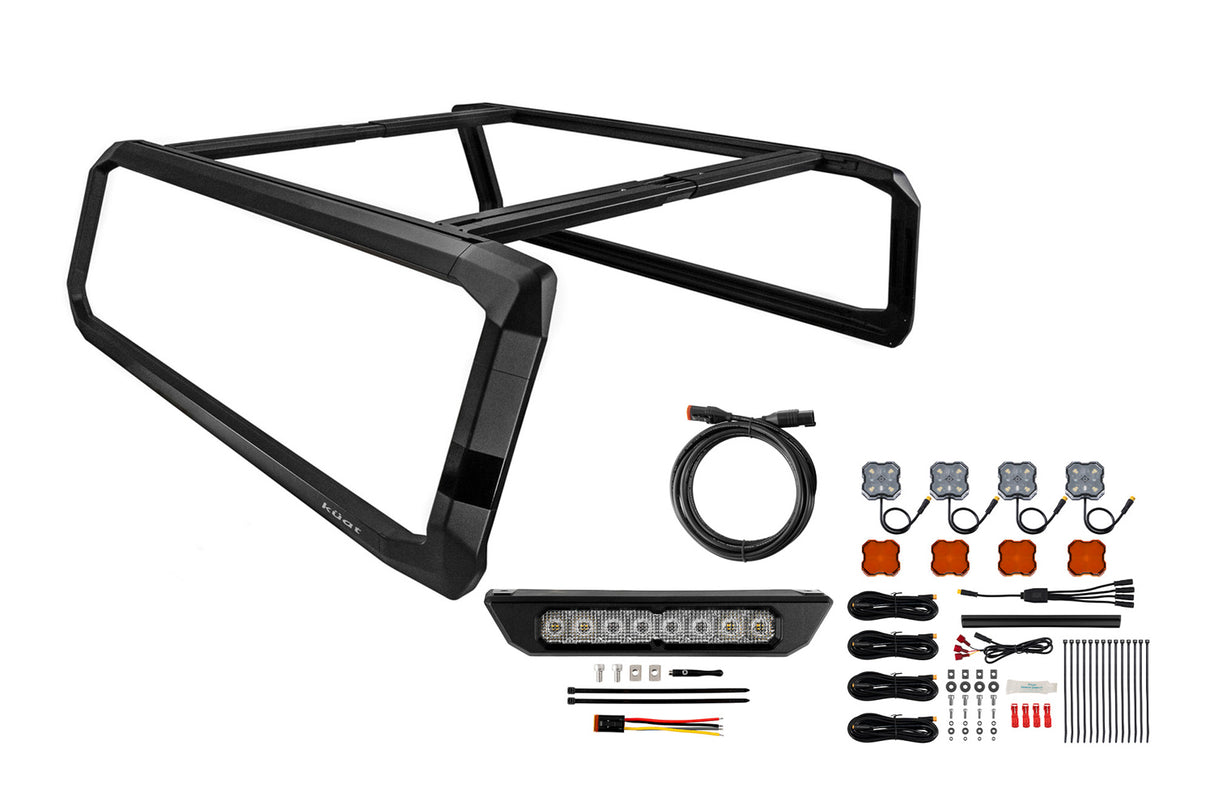

Midsize trucks with the short bed finally get a rack and lighting package that arrives as one complete solution. Diode Dynamics builds this kit around the Kuat IBEX A3 rack, the shortest of the A-class frames at 60 in of interior bed length, and adds an SS10 Chase Lightbar plus four Stage Series Rock Lights with both white diffused and amber lenses. The wiring is all there too, including a magnetic programming tool, extension wires, an M8 4-way splitter, a DT 4-pin pigtail and a T-tap harness.

The rack is powdercoated aluminum with adjustable telescopic crossbars and integrated T-channels for accessories, rated to 1,200 lb static and 300 lb dynamic. Nothing gets drilled and the truck is not modified, and most installs land in the two to three hour range with basic hand tools. Because IBEX racks are sized by bed dimension rather than by vehicle, measure your bed before ordering.

Features

• Complete kit including the IBEX A3 bed rack, SS10 Chase Lightbar and four Stage Series Rock Lights
• Four white diffused lenses and four amber lenses included
• Magnetic programming tool, extension wires, M8 4-way splitter, DT 4-pin pigtail and T-tap harness included
• A3 frame class, the shortest of the A-class at 60 in
• Adjustable telescopic crossbars
• Integrated T-channels for accessory mounting
• Powdercoated aluminum construction
• 1,200 lb static load rating and 300 lb dynamic load rating
• 60 in bed interior length and 37.75 in to 50.375 in bed interior width range
• No drilling and no vehicle modification required
• Installs in 2 to 3 hours with basic tools

Notes

• Short bed only. The A3 frame requires 60 in of interior bed length and 37.75 in to 50.375 in of interior width. Measure your truck before ordering.
• Nissan Frontier coverage starts at 2022. The 2019-2021 Frontier is not a listed application.
• Tonneau compatibility is limited to select retractable covers including Retrax, EGR and others. Folding and hard fold covers are not claimed compatible.
