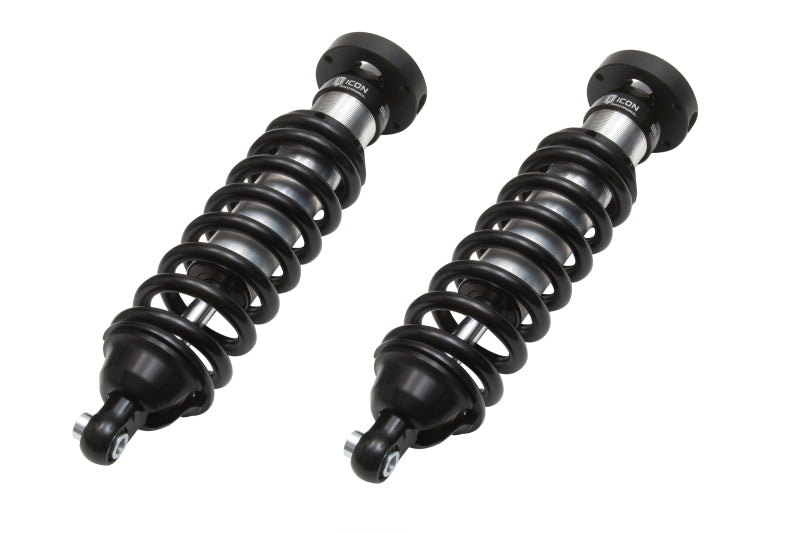

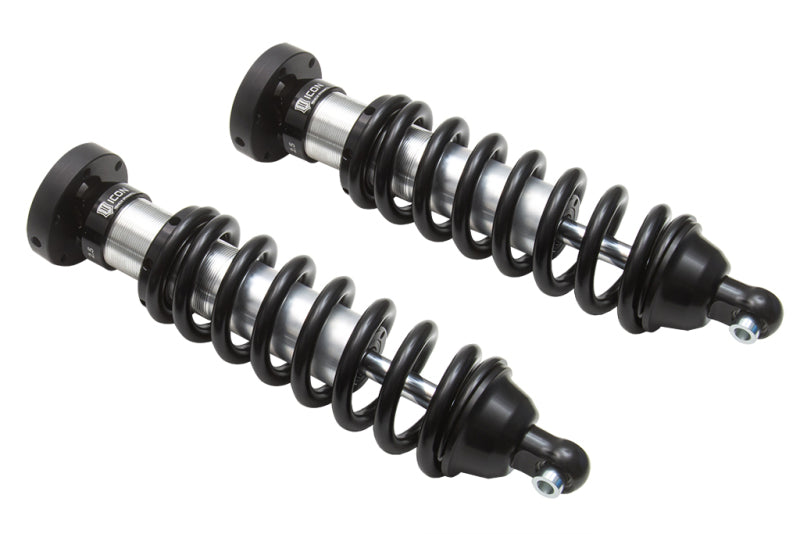

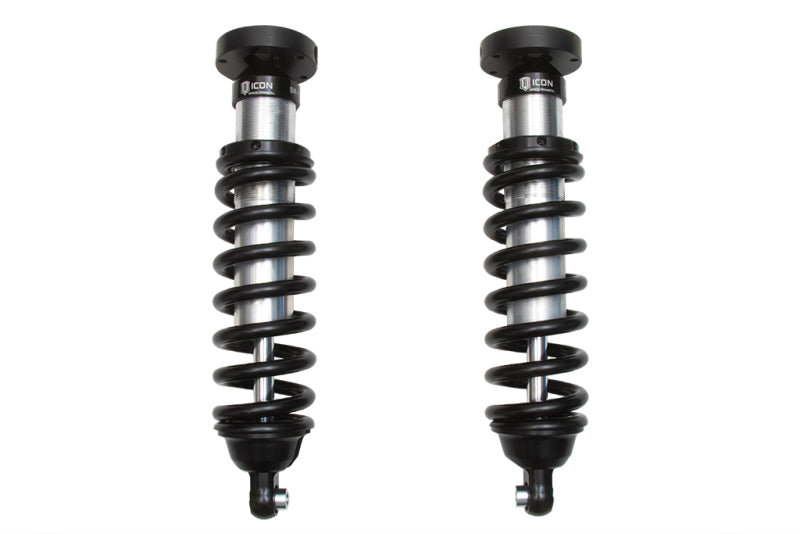

2000-2006 Tundra 2.5 Series Coilover Kit (ICO58620)

The ICON Vehicle Dynamics V.S. 2.5 Series Internal Reservoir (IR) Front Coilover Kit is a substantial suspension upgrade for the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These coilovers are engineered to replace the factory front struts with a high-performance 2.5-inch diameter shock body, offering significantly more piston surface area and oil volume. This design provides enhanced damping control and heat dissipation, resulting in a superior ride both on the highway and across rugged terrain. With adjustable lift height, these coilovers allow you to level the front of your truck and clear larger, more aggressive wheel and tire setups.

Features

• Adjustable Lift Height: Threaded shock bodies provide 0 to 2.5 inches of front lift height adjustment, allowing for a leveled stance and increased tire clearance.
• 2.5 Series Shock Body: Large diameter bodies increase oil capacity to help dissipate heat and maintain consistent damping performance during off-road use.
• Internal Reservoir (IR): A self-contained design that houses the nitrogen charge internally, providing a clean, bolt-on installation without the need for external reservoir mounting.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the first-generation Tundra and Sequoia.
• Improved Wheel Travel: The vehicle-specific shock length and increased piston area provide more travel and better bottom-out control compared to original equipment.
• High-Quality Materials: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined 6061 aluminum components for maximum durability.
• Fully Serviceable: 100% rebuildable and re-tunable, ensuring these coilovers can be maintained for the life of the vehicle.

Notes

• Specifically fits 2000-2006 Toyota Tundra 2WD/4WD and 2001-2007 Toyota Sequoia 2WD/4WD models.
• Sold as a complete pair including coil springs and all necessary mounting hardware.
• Recommended for use with ICON Tubular or Billet Upper Control Arms to ensure proper alignment specifications after lifting.
• An ICON spanner wrench (sold separately) is required to perform lift height adjustments.
