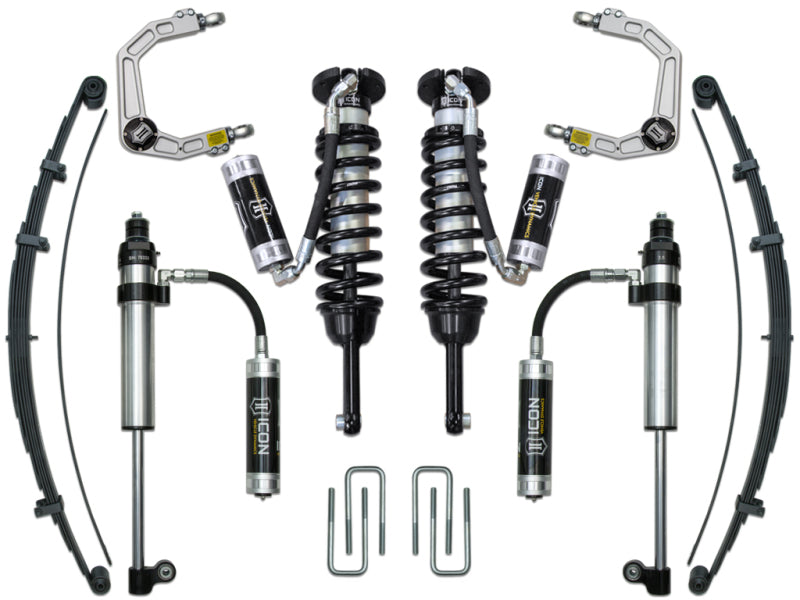

2005-2017 Tacoma 0-3.5" Suspension System w Billet UCA (ICOK53008)

Designed for drivers who want maximum wheel travel, improved rear ride quality, and serious cooling performance, the ICON Vehicle Dynamics Stage 8 Suspension System with Billet Upper Control Arms delivers a premium, high-capability upgrade for the Toyota Tacoma. This system blends extended travel coilovers, corrected front geometry, and a multi-rate rear leaf setup to handle aggressive off-road use while remaining composed on the street.

Features

• Stage 8 suspension system engineered specifically for Toyota Tacoma platforms
• Vehicle-specific tuned 2.5 Series extended travel front coilover shocks with remote reservoirs
• Extended travel coilovers increase droop travel when paired with ICON upper control arms
• Billet aluminum upper control arms correct front-end geometry and improve component clearance
• Serviceable ICON Delta Joint allows full bump and droop travel while eliminating bind

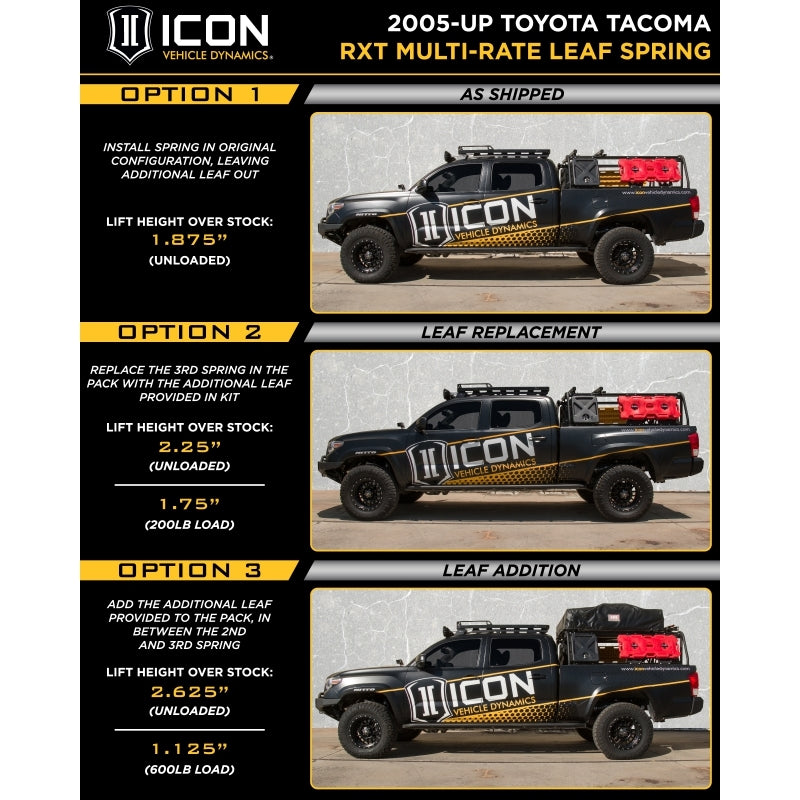

• ICON RXT multi-rate rear leaf springs improve ride quality and rear wheel travel
• Additional rear leaf can be added or exchanged to increase spring rate by approximately 10 to 20 percent
• 2.5 Aluminum Series rear remote reservoir shocks feature a side-mount eyelet for increased travel
• Large 10 inch rear remote reservoir improves heat dissipation and resists shock fade

Specifications

• Front lift height adjustable from 0 to 3.5 inches on 2005-2015 models
• Front lift height adjustable from 0 to 2.75 inches on 2016-2017 models
• 2.5 Series remote reservoir extended travel front coilovers
• 2.5 Aluminum Series remote reservoir rear shocks
• Multi-rate rear leaf spring pack with adjustable spring rate configuration

Notes

• Includes ICON billet aluminum upper control arms with Delta Joint
• Rear leaf spring configuration can be tuned for unloaded or heavily outfitted vehicles
• Designed to maximize suspension travel, ride quality, and cooling under aggressive use
