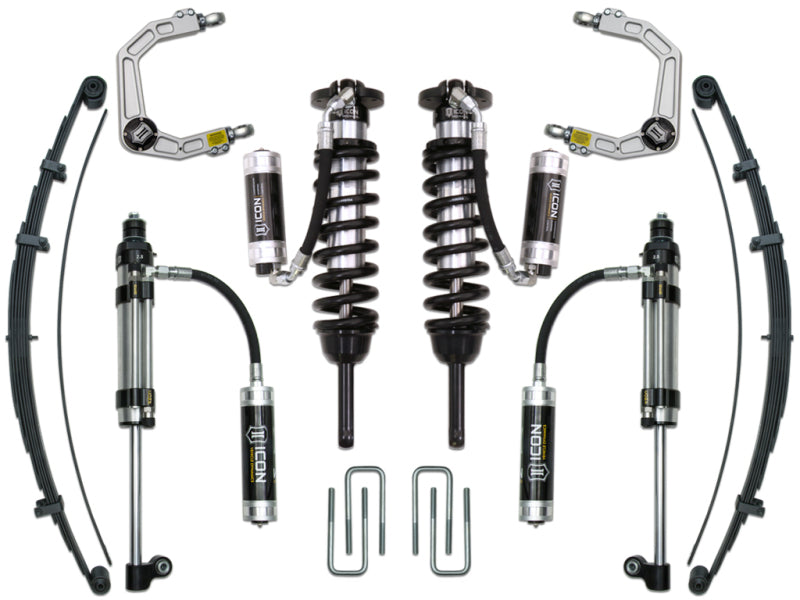

2005-2017 Tacoma 0-3.5" Suspension System w Billet UCA (ICOK53010)

Built for drivers who want the highest level of tunability and suspension performance, the ICON Vehicle Dynamics Stage 10 Suspension System with Billet Upper Control Arms delivers exceptional control, wheel travel, and ride quality for the Toyota Tacoma. This system combines extended travel coilovers with adjustable damping and a configurable rear spring setup to perform flawlessly on-road and in aggressive off-road environments.

Features

• Stage 10 suspension system engineered specifically for Toyota Tacoma platforms
• Vehicle-specific tuned 2.5 Series extended travel front coilover shocks with remote reservoirs
• Remote reservoirs equipped with CDCV for adjustable compression damping
• Externally adjustable CDC Valves provide 10 levels of compression damping adjustment
• Extended travel coilovers increase droop travel when paired with ICON upper control arms
• Billet aluminum upper control arms correct front-end geometry and improve component clearance
• Serviceable ICON Delta Joint allows full bump and droop travel while eliminating bind

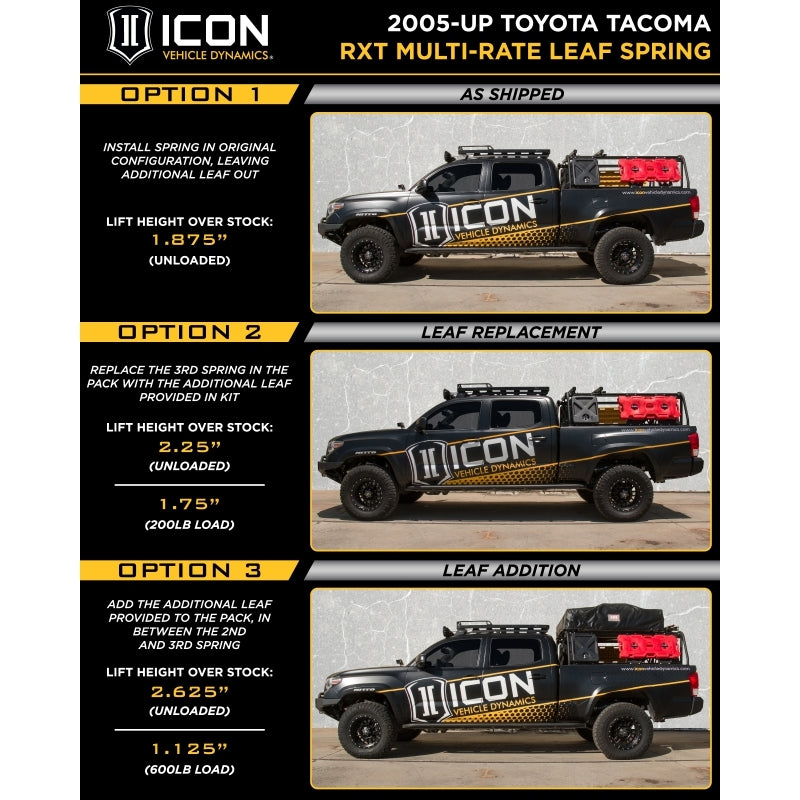

• ICON RXT multi-rate rear leaf springs improve ride quality and rear wheel travel
• Additional rear leaf can be added or exchanged to increase spring rate by approximately 10 to 20 percent

Specifications

• Front lift height adjustable from 0 to 3.5 inches on 2005-2015 models
• Front lift height adjustable from 0 to 2.75 inches on 2016-2023 models
• 2.5 Series remote reservoir extended travel front coilovers with CDCV
• Multi-rate rear leaf spring pack with configurable spring rate

Notes

• Includes ICON billet aluminum upper control arms with Delta Joint
• Rear leaf spring configuration can be tuned for unloaded or heavily outfitted vehicles
• Designed to deliver maximum suspension travel, adjustable damping, and consistent performance
