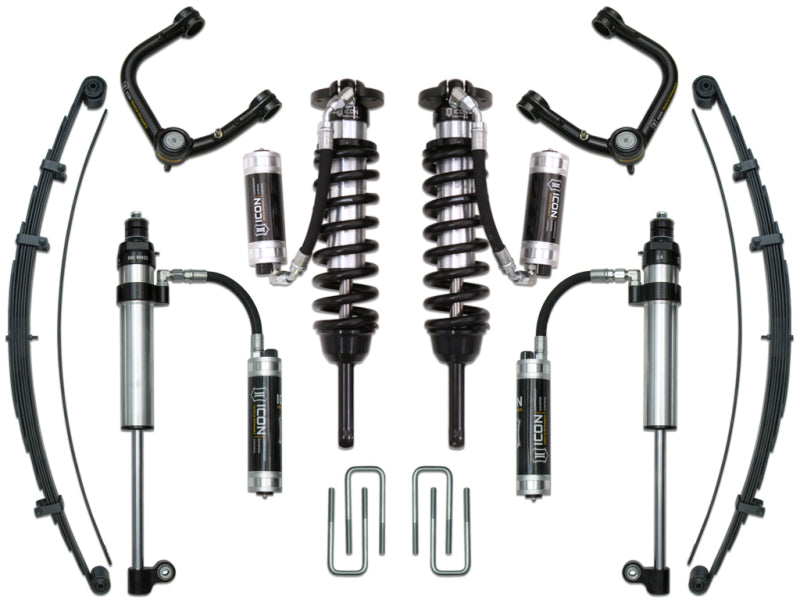

2005-2017 Tacoma 0-3.5" 0-2.75" Stage 9 Suspension System w Tubular UCA (ICOK53009T)

Built for drivers who want maximum adjustability, durability, and wheel travel, the ICON Vehicle Dynamics Stage 9 Suspension System with Tubular Upper Control Arms delivers elite-level performance for the Toyota Tacoma. This system combines extended travel suspension, adjustable damping, and robust articulation components to handle aggressive off-road use while maintaining confident street manners.

Features

• Stage 9 suspension system engineered specifically for Toyota Tacoma platforms
• Vehicle-specific tuned 2.5 Series extended travel front coilover shocks with remote reservoirs
• Remote reservoirs equipped with CDCV for adjustable compression damping
• Extended travel coilovers increase droop travel when paired with ICON upper control arms
• Tubular steel upper control arms equipped with ICON patented Delta Joint
• Delta Joint combines the durability of a ball joint with the articulation of a uniball
• Zinc plated Delta Joint housing and grease seal protect against corrosion and contamination
• Metal-on-metal, greaseable design provides quiet operation and extended service life
• ICON RXT multi-rate rear leaf springs improve ride quality and rear wheel travel

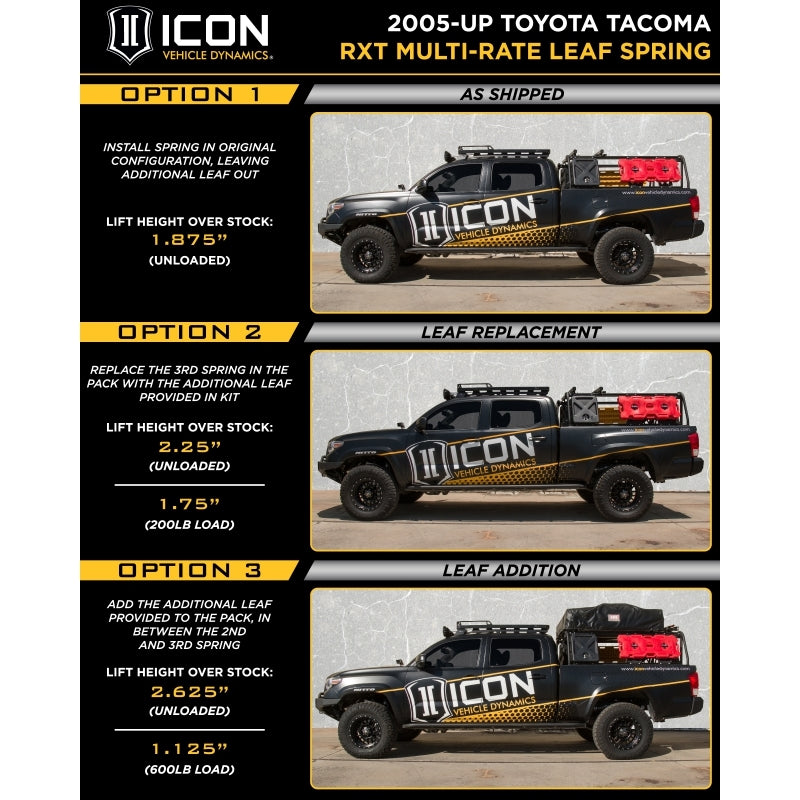

• Additional rear leaf can be added or exchanged to increase spring rate by approximately 10 to 20 percent
• ICON 2.5 Aluminum Series rear remote reservoir shocks with CDCV feature a side-mount eyelet for increased usable travel
• Large 10 inch rear remote reservoir improves heat dissipation and resists shock fade
• Externally adjustable CDC Valves provide 10 levels of compression damping adjustment

Specifications

• Front lift height adjustable from 0 to 3.5 inches on 2005-2015 models
• Front lift height adjustable from 0 to 2.75 inches on 2016-2017 models
• 2.5 Series remote reservoir extended travel front coilovers with CDCV
• 2.5 Aluminum Series remote reservoir rear shocks with CDCV
• Multi-rate rear leaf spring pack with configurable spring rate

Notes

• Includes ICON tubular upper control arms with Delta Joint
• Rear leaf spring configuration can be tuned for unloaded or heavily outfitted vehicles
• Designed to deliver maximum suspension travel, adjustable damping, and consistent performance under aggressive use
