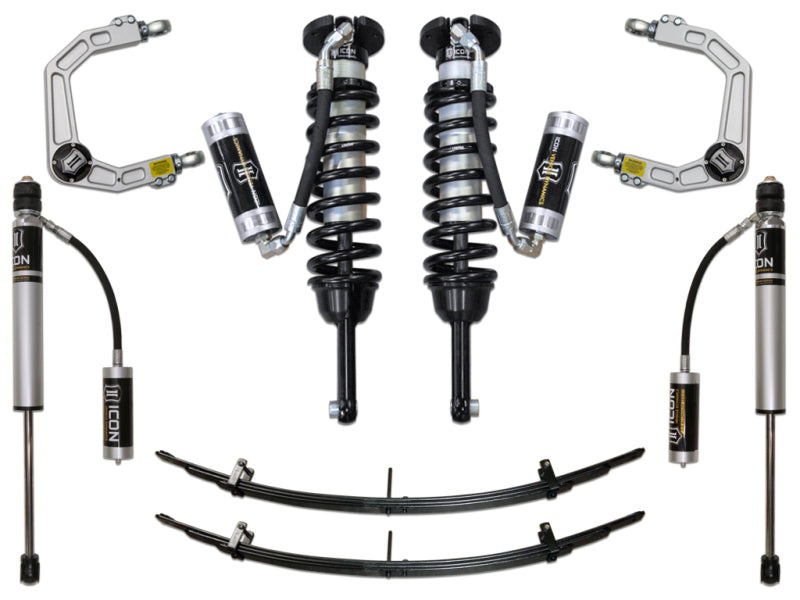

2005-2023 Tacoma 0-3.5" Suspension System w Billet UCA (ICOK53004)

Built for drivers who demand maximum control, travel, and cooling performance, the ICON Vehicle Dynamics Stage 4 Suspension System with Billet Upper Control Arms delivers a major leap in capability for the Toyota Tacoma. Designed as a complete system, this setup improves ride quality, suspension geometry, and off-road performance without sacrificing daily drivability.

Features

• Stage 4 suspension system engineered specifically for Toyota Tacoma platforms
• Vehicle-specific tuned 2.5 inch extended travel front coilover shocks with remote reservoirs
• Remote reservoirs improve cooling and damping consistency under aggressive use
• Extended travel coilovers increase droop travel when paired with ICON upper control arms
• Billet aluminum upper control arms correct front-end geometry and improve component clearance
• Serviceable ICON Delta Joint allows full bump and droop travel while eliminating bind
• Rear add-a-leaf replaces factory overload leaves for improved compliance and ride quality
• ICON 2.0 Aluminum Series remote reservoir rear shocks balance front and rear suspension performance

Specifications

• Front lift height adjustable from 0 to 3.5 inches on 2005-2015 models
• Front lift height adjustable from 0 to 2.75 inches on 2016-2023 models
• Approximately 1.5 inches of rear lift from included add-a-leaf kit
• 2.5 inch remote reservoir extended travel front coilovers
• 2.0 Aluminum Series remote reservoir rear shocks

Compatibility

• 2005-2015 Toyota Tacoma 4WD and PreRunner
• 2016-2023 Toyota Tacoma 4WD and PreRunner

Notes

• Includes ICON billet aluminum upper control arms with Delta Joint
• Rear add-a-leaf lowers rear spring rate by approximately 10 percent for improved ride compliance
• Designed to enhance ride quality, handling, and off-road capability
