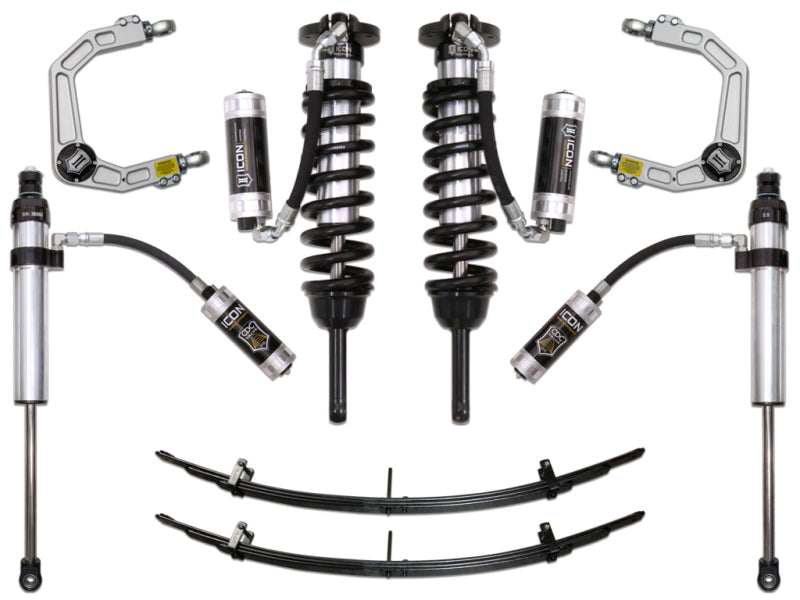

2005-2016 Tacoma 0-3.5" 0-2.75" Stg 6 Suspension System w Billet UCA (ICOK53006)

Engineered for drivers who want maximum control, tunability, and performance, the ICON Vehicle Dynamics Stage 6 Suspension System with Billet Upper Control Arms represents the pinnacle of Tacoma suspension capability. Designed as a fully integrated system, this setup delivers increased wheel travel, superior cooling, and adjustable damping for confident performance on-road and in demanding off-road conditions.

Features

• Stage 6 suspension system engineered specifically for Toyota Tacoma platforms
• Vehicle-specific tuned 2.5 inch extended travel front coilover shocks with remote reservoirs
• Remote reservoirs equipped with CDCV for adjustable compression damping
• Extended travel coilovers increase droop travel when paired with ICON upper control arms
• Billet aluminum upper control arms correct front-end geometry and improve component clearance
• Serviceable ICON Delta Joint allows full bump and droop travel while eliminating bind
• Rear add-a-leaf replaces factory overload leaves to improve compliance and ride quality
• ICON 2.5 Aluminum Series remote reservoir rear shocks with CDCV balance front and rear performance
• Externally adjustable CDC Valves provide 10 levels of compression damping adjustment

Specifications

• Front lift height adjustable from 0 to 3.5 inches on 2005-2015 models
• Front lift height adjustable from 0 to 2.75 inches on 2016-2023 models
• Approximately 1.5 inches of rear lift from included add-a-leaf kit
• 2.5 inch remote reservoir extended travel front coilovers with CDCV
• 2.5 Aluminum Series remote reservoir rear shocks with CDCV

Notes

• Includes ICON billet aluminum upper control arms with Delta Joint
• Rear add-a-leaf lowers rear spring rate by approximately 10 percent for improved ride compliance
• Designed to deliver maximum on-road control and off-road capability with adjustable damping
