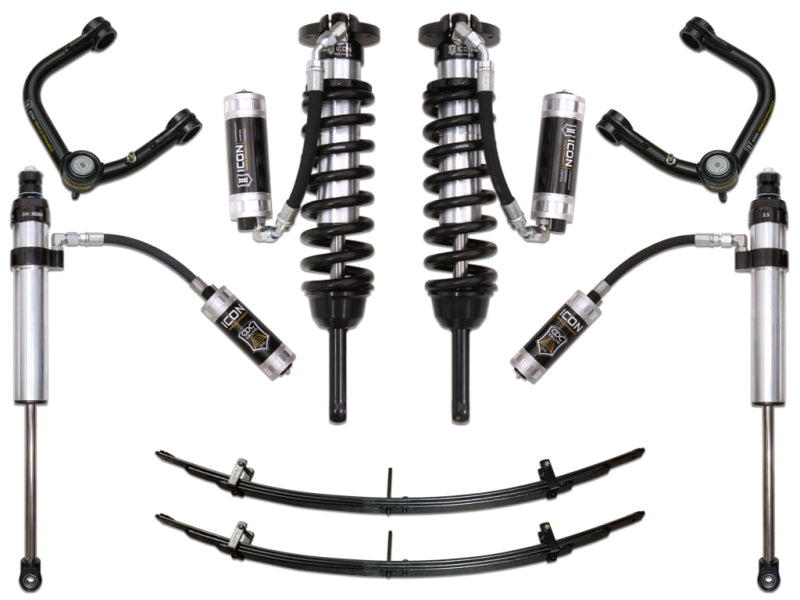

2005-2016 Tacoma 0-3.5" Stg 6 Suspension System w Tubular UCA (ICOK53006T)

Designed for drivers who want maximum performance, adjustability, and long-term reliability, the ICON Vehicle Dynamics Stage 6 Suspension System with Tubular Upper Control Arms delivers the highest level of control for the Toyota Tacoma. This system combines extended travel, adjustable damping, and durable articulation components to handle aggressive off-road use while remaining composed on the street.

Features

• Stage 6 suspension system engineered specifically for Toyota Tacoma platforms
• Vehicle-specific tuned 2.5 inch extended travel front coilover shocks with remote reservoirs
• Remote reservoirs equipped with CDCV for adjustable compression damping
• Extended travel coilovers increase droop travel when paired with ICON upper control arms
• Tubular upper control arms equipped with ICON patented Delta Joint
• Delta Joint combines the durability of a ball joint with the articulation of a uniball
• Zinc plated Delta Joint housing and grease seal protect against corrosion and contamination
• Metal-on-metal, greaseable design provides quiet operation and extended service life
• Rear add-a-leaf replaces factory overload leaves for improved compliance and ride quality
• ICON 2.5 Aluminum Series remote reservoir rear shocks with CDCV balance front and rear performance
• Externally adjustable CDC Valves provide 10 levels of compression damping adjustment

Specifications

• Front lift height adjustable from 0 to 3.5 inches on 2005-2015 models
• Front lift height adjustable from 0 to 2.75 inches on 2016-2023 models
• Approximately 1.5 inches of rear lift from included add-a-leaf kit
• 2.5 inch remote reservoir extended travel front coilovers with CDCV
• 2.5 Aluminum Series remote reservoir rear shocks with CDCV

Notes

• Includes ICON tubular upper control arms with Delta Joint
• Rear add-a-leaf lowers rear spring rate by approximately 10 percent for improved ride compliance
• Designed to deliver maximum on-road control and off-road capability with adjustable damping
