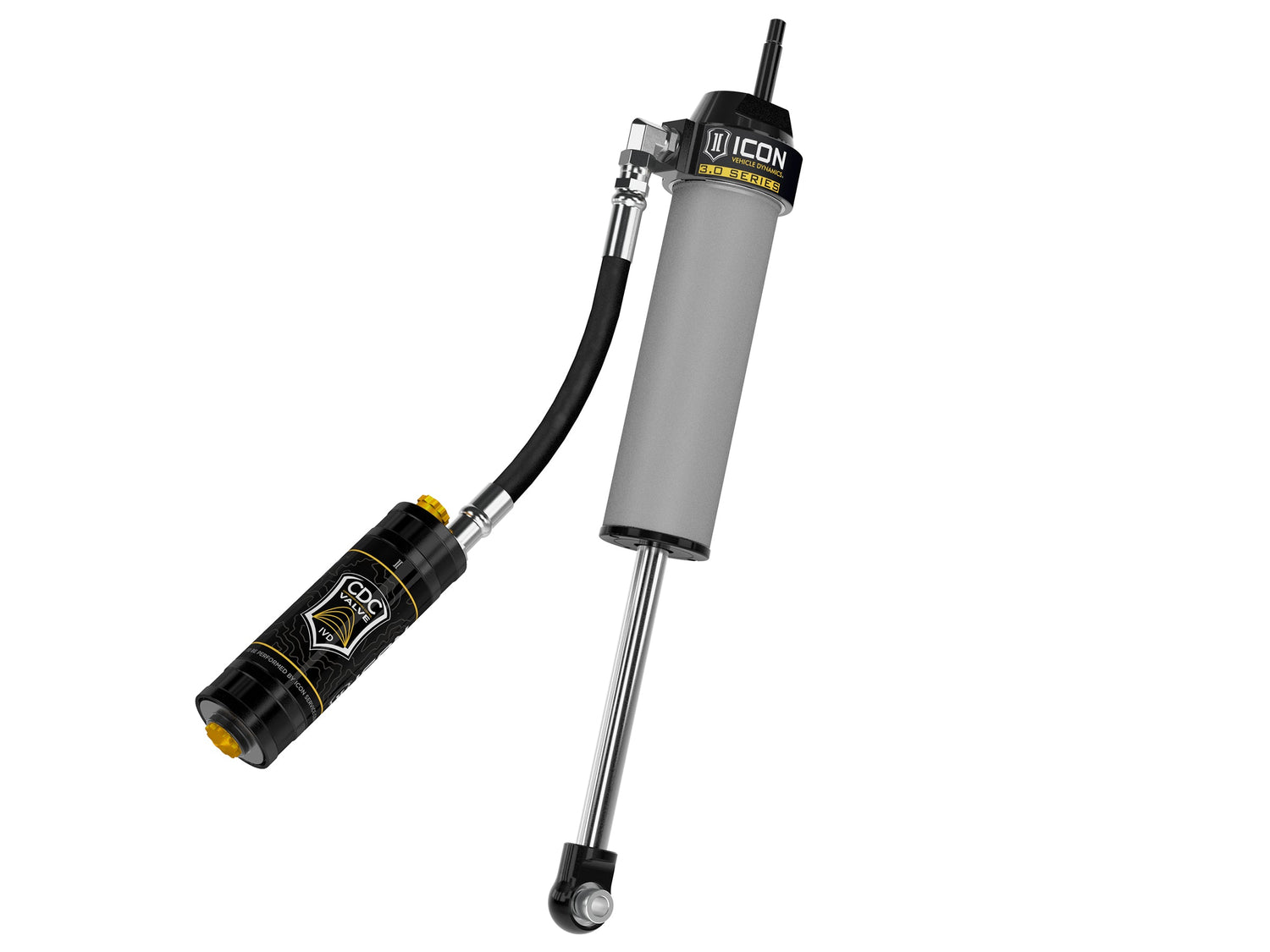

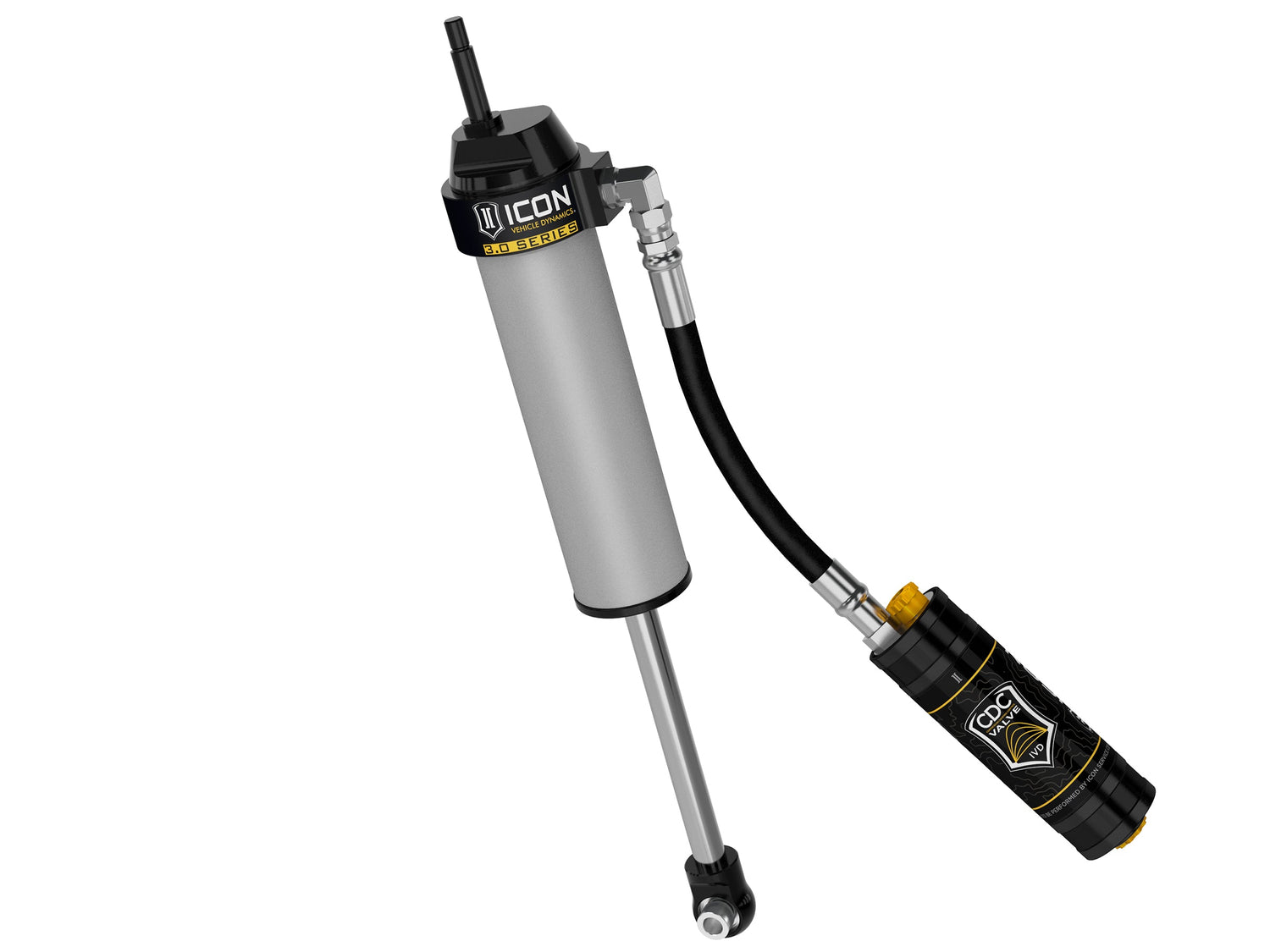

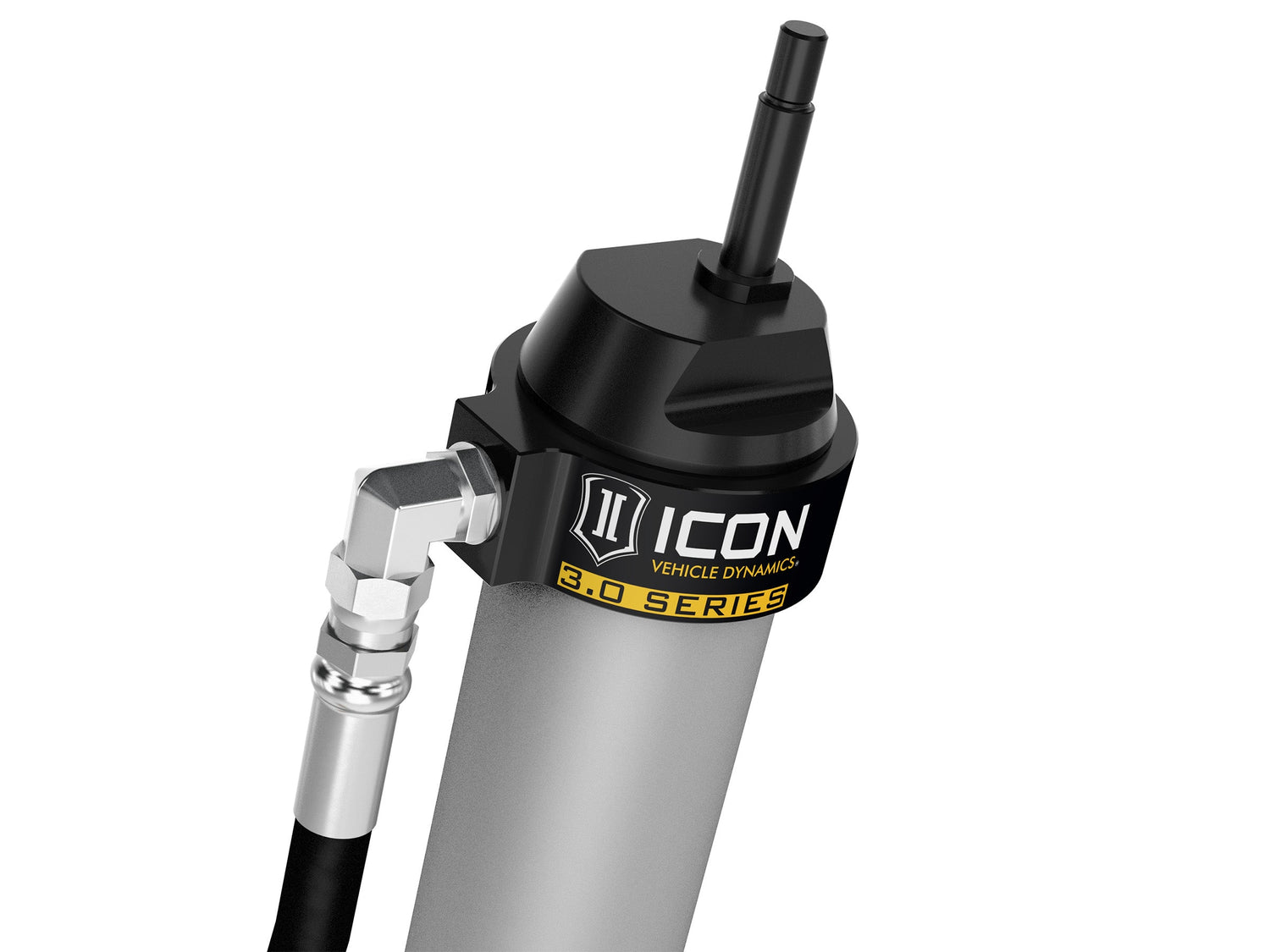

2005-2026 Superduty 4WD V.S. 3.0 Series Front Remote Reservoir Shocks with CDCV Pair (61802CP)

ICON's V.S. 3.0 Series remote reservoir shocks are the serious step up for a Super Duty that works hard and plays harder. These are damper only units that drop into the factory front shock location, so you keep your existing ride height hardware while gaining a 3.0 inch body with 50 percent more piston area than a 2.5 Series shock. The remote reservoir carries extra oil and sheds heat, which is what keeps damping consistent on long washboard roads instead of fading out on you.

The CDCV compression damping control valve gives you ten levels of manual compression adjustment, so the same truck can be tuned soft for the highway and firm for high speed desert work without pulling a single bolt. Everything is CNC machined 6061 aluminum with Cerakoted steel cylinders, and the whole assembly is fully rebuildable and revalveable when it eventually needs service.

Features

• 3.0 inch shock body with 50 percent more piston area than a 2.5 Series shock
• Remote reservoir increases oil capacity and resists heat fade
• CDCV compression damping control valve with 10 levels of manual adjustment
• Nitrogen charged monotube design
• 7/8 inch induction hardened chrome shaft
• 6061 CNC machined aluminum construction
• Cerakote finished steel cylinders
• 5WT racing oil
• Linear compression and digressive rebound piston valving
• 100 percent rebuildable and revalveable
• Vehicle specific length and damping tune

Notes

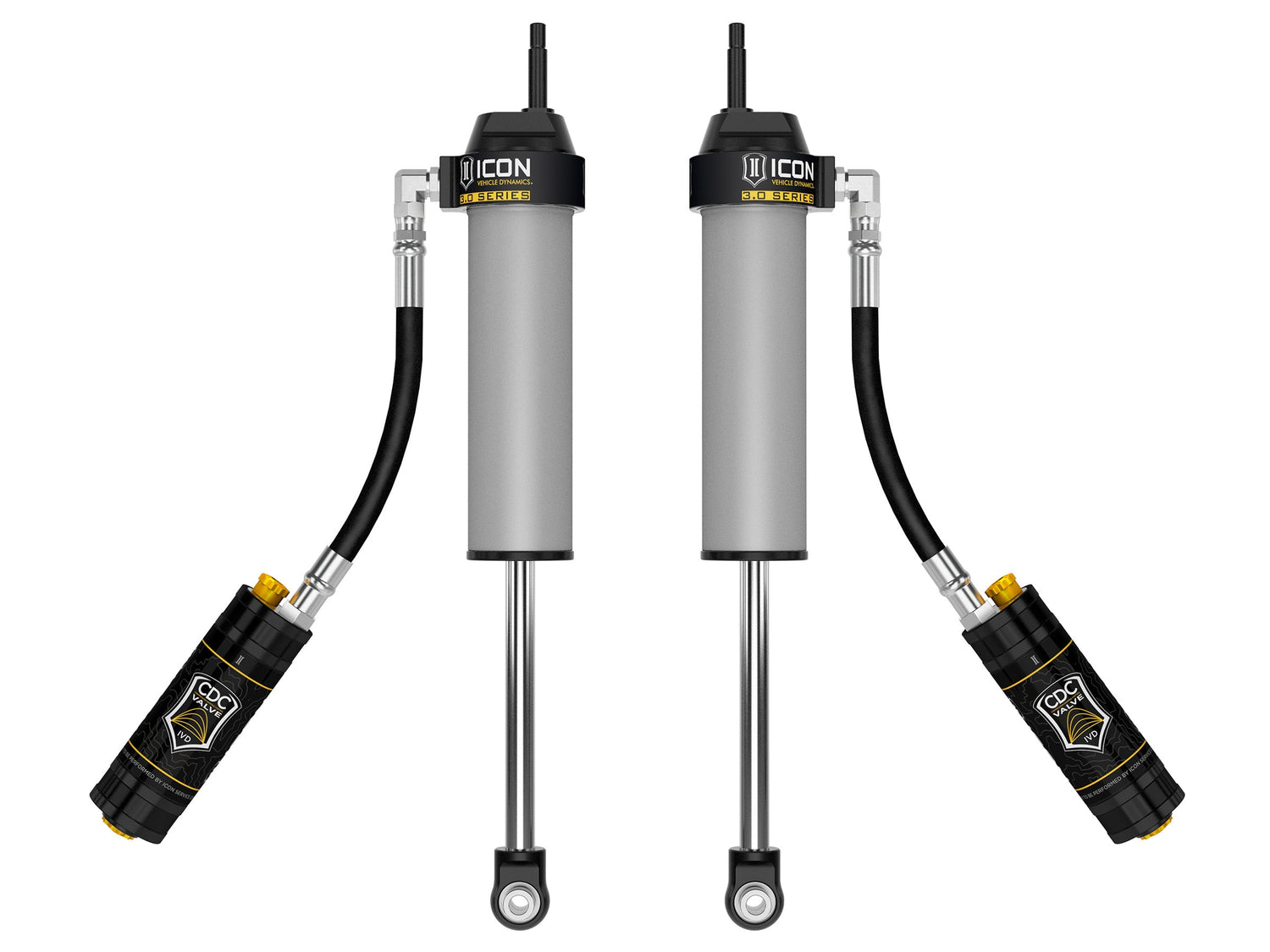

• Sold as a pair, you receive two shocks
• Fits 4WD models only
• Front lift range varies by year and trim. 2005 to 2019 is 0 to 3 inches. 2020 to 2022 non Tremor and F-450 is 0 to 3.75 inches, Tremor is 0 to 2.75 inches. 2023 to 2026 non Tremor and F-450 is 0 to 3 inches, Tremor is 0 to 2 inches
• If installed as a secondary shock alongside an ICON front coilover conversion, Reservoir Doubler Kit 611003 is required
• One year warranty on shocks against manufacturer defects, lifetime on non wearable components
