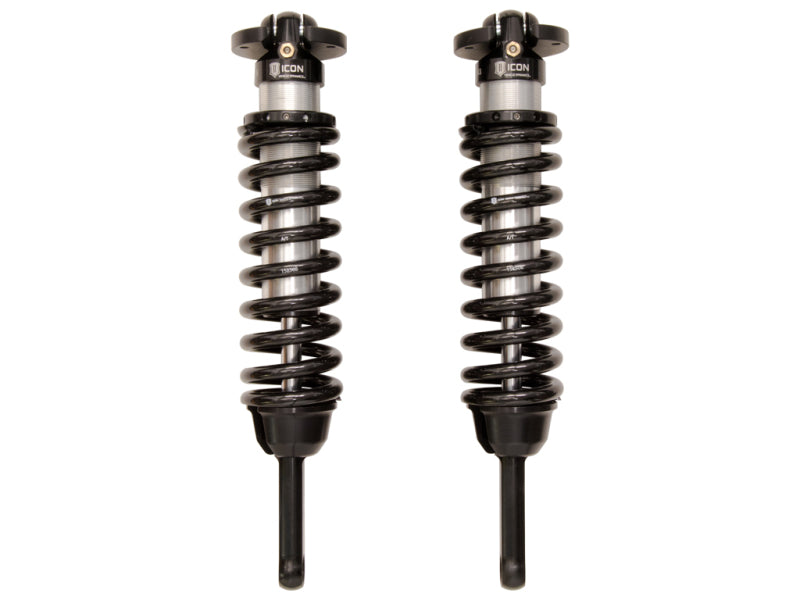

2003-2009 FJ 4Runner 2.5 Series Ext Travel Coilover Kit (ICO58645)

The ICON Vehicle Dynamics V.S. 2.5 Series Extended Travel Internal Reservoir (IR) Front Coilover Kit is a high-performance suspension upgrade for the 2007-2009 Toyota FJ Cruiser and 2003-2009 Toyota 4Runner. These coilovers are engineered to maximize front-end performance by utilizing a robust 2.5-inch shock body that offers significantly more piston surface area and oil volume than factory components. This results in superior damping control and heat dissipation, ensuring a consistent and comfortable ride on both the street and technical off-road trails. The extended travel configuration allows for a significant increase in suspension droop, providing better articulation and traction in demanding terrain.

Features

• Extended Travel Design: Optimized shock length provides increased suspension droop and a greater total range of motion compared to standard travel shocks.
• Adjustable Lift Height: Threaded shock bodies allow for 0 to 3 inches of front lift height adjustment, enabling a leveled stance and clearance for larger tires.
• 2.5 Series Shock Body: Large diameter body increases oil capacity to dissipate heat effectively, preventing shock fade during aggressive off-road use.
• Internal Reservoir (IR): A self-contained design that houses the nitrogen charge internally, providing a clean, bolt-on installation without the need for mounting external reservoirs.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the early 4Runner and FJ Cruiser platforms.
• Premium Construction: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined 6061 aluminum components for professional-grade durability.
• Fully Serviceable: These shocks are 100% rebuildable and 100% revalveable, ensuring they can be maintained for the life of the vehicle.

Notes

• Specifically fits 2007-2009 Toyota FJ Cruiser and 2003-2009 Toyota 4Runner (2WD/4WD).
• Compatible with 2003-2009 Lexus GX470 models.
• Requires the installation of aftermarket Upper Control Arms (UCAs) to prevent binding at full droop and to allow for proper alignment specifications.
• Sold as a complete pair including coil springs and all necessary mounting hardware.
• An ICON spanner wrench (sold separately) is required to perform lift height adjustments.
