2007-2016 GM 1500 Tubular Upper Control Arm Delta Joint Kit Small Taper (ICO78600DJ)

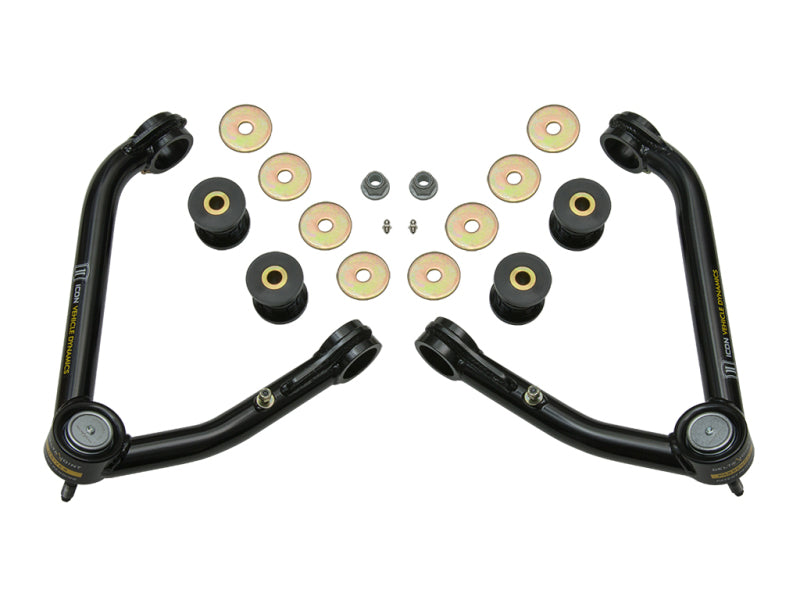

The ICON Vehicle Dynamics Tubular Upper Control Arm (UCA) Kit for 2007-2016 GM 1500 trucks is engineered to improve the performance and alignment of vehicles equipped with small taper spindles. These arms provide essential caster correction and increased suspension travel, ensuring optimal handling characteristics when front-end lift is added. This kit features the patented Delta Joint, which bridges the gap between the extreme articulation of a uniball and the long-term durability of a sealed ball joint.

Features

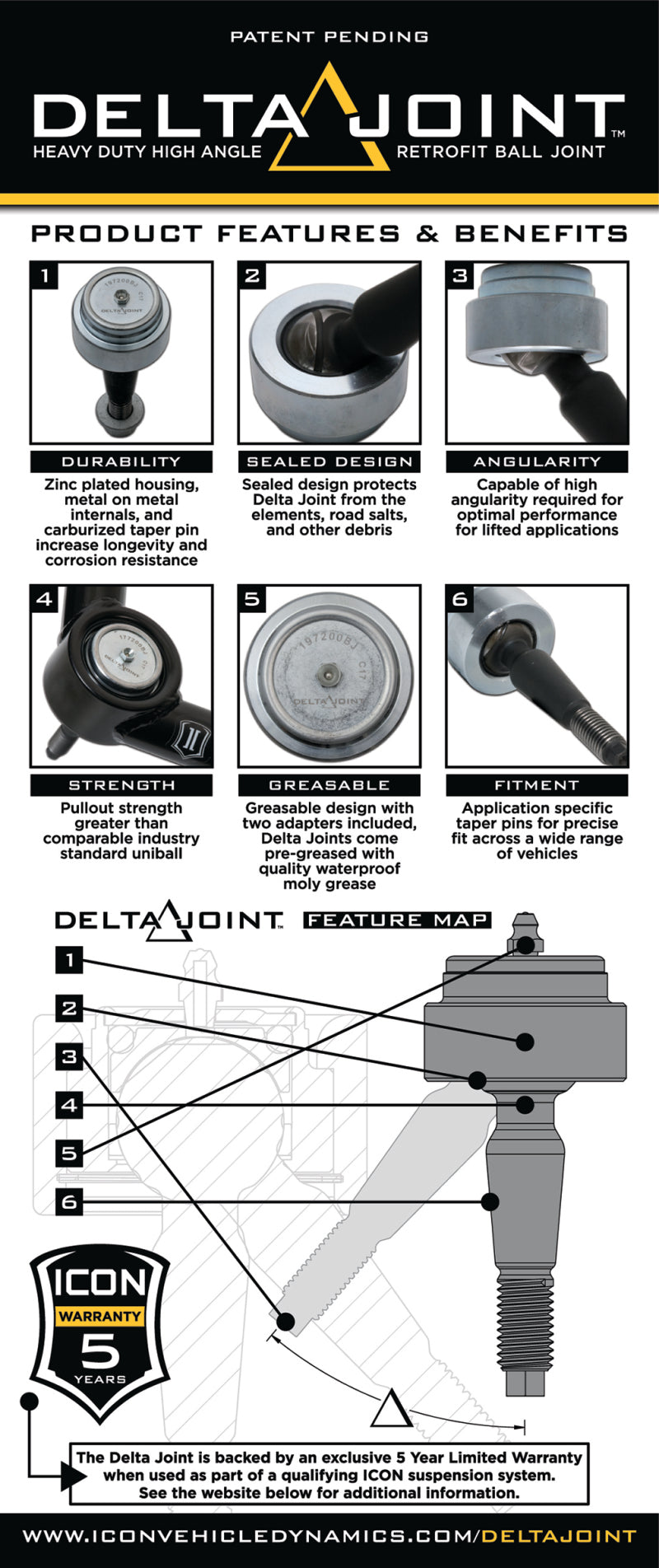

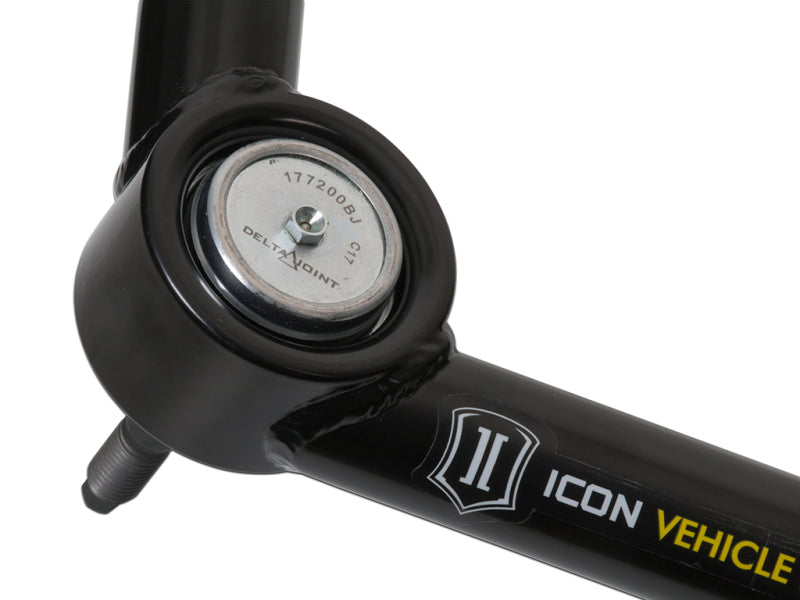

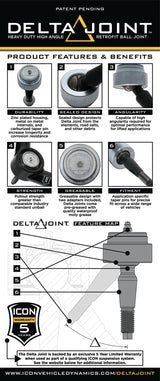

• Patented Delta Joint: Combines the high-angle performance of a uniball with the weather resistance and longevity of a fully sealed, greasable ball joint.
• Built-In Caster Correction: Engineered with additional caster to allow for proper wheel alignment and straight-line stability on trucks with 1 to 3 inches of front lift.
• Heavy-Duty Construction: Fabricated from CNC-bent 1026 DOM steel tubing with CNC-machined bushing housings for maximum strength.

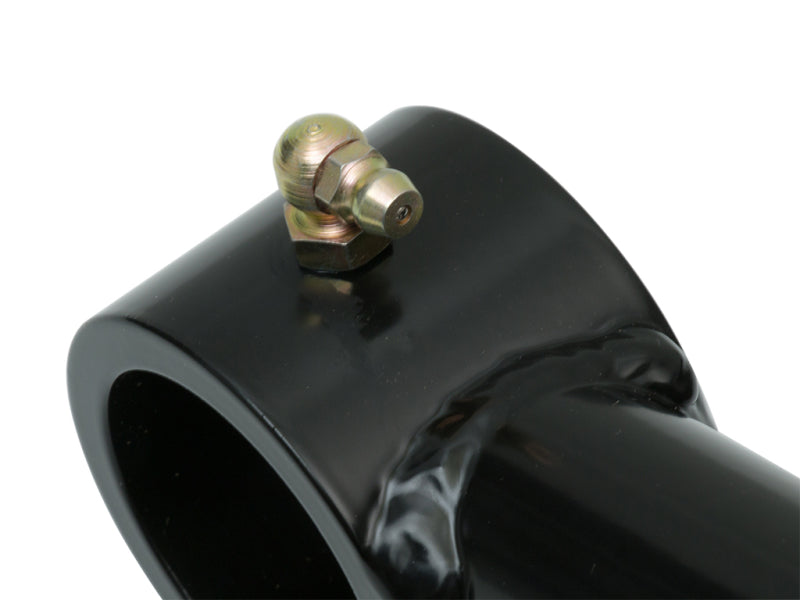

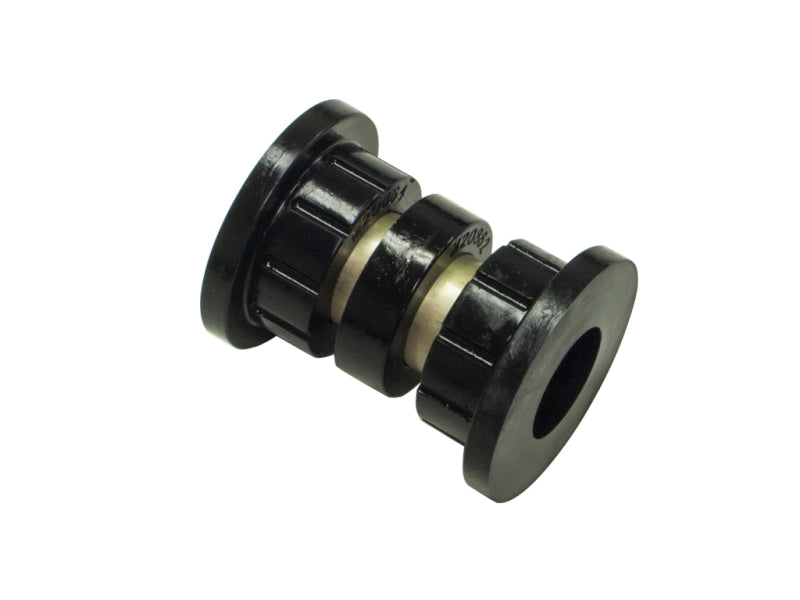

• Serviceable Bushings: Equipped with greasable dual-stage polyurethane bushings for quiet operation and a bind-free range of motion.
• Enhanced Corrosion Resistance: Finished with a multi-stage, semi-gloss black powder coat, while the Delta Joint itself features a zinc-plated housing.
• Improved Wheel Travel: Sized to allow for increased suspension cycling when used in conjunction with ICON 2.5 Series or 3.0 Series coilovers.

Notes

• Specifically fits 2007-2016 Chevrolet Silverado 1500 and GMC Sierra 1500 2WD and 4WD models with small taper spindles.
• Small taper applications are typically identified by the presence of factory forged steel front lower control arms.
• Compatible only with OEM spindles; do not install this kit in combination with aftermarket spindles.
• Not compatible with models equipped with factory Magnetic Ride Control or hybrid drivetrains.
• Recommended aftermarket wheel fitment: 17-inch or larger wheels with a maximum of 5.00-inch backspacing.
