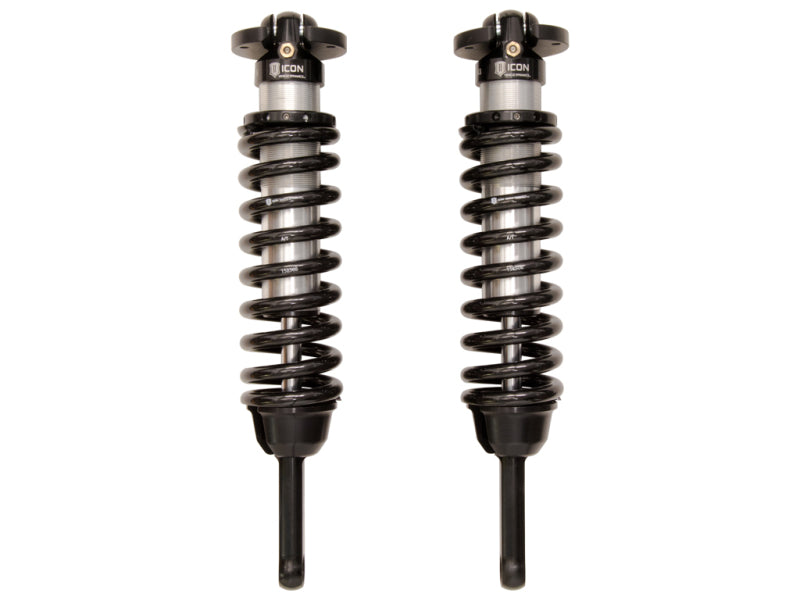

2005-2023 Tacoma 2.5 Series Coilover Kit (ICO58630)

The ICON Vehicle Dynamics V.S. 2.5 Series Internal Reservoir (IR) Front Coilover Kit is a substantial performance upgrade for the 2005-2023 Toyota Tacoma. By replacing the factory front struts with a high-performance 2.5-inch diameter shock body, these coilovers offer significantly more piston surface area and oil volume than stock components. This results in exceptional damping control and heat dissipation, providing a smooth ride on the street and superior handling in off-road environments. The threaded shock bodies allow for adjustable lift height, enabling you to level your truck's stance and clear larger, more aggressive wheel and tire combinations.

Features

• Adjustable Lift Height: Provides 0 to 3.5 inches of lift for 2005-2015 models or 0 to 2.75 inches of lift for 2016-2023 models, allowing for a leveled stance and increased tire clearance.
• 2.5 Series Shock Body: Large diameter bodies increase oil capacity to help dissipate heat and maintain consistent damping performance during prolonged off-road use.
• Internal Reservoir (IR): A self-contained design that houses the nitrogen charge internally, offering a clean, bolt-on installation without the need for external reservoir mounting brackets.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the second and third-generation Tacoma.
• Improved Wheel Travel: The vehicle-specific shock length and increased piston area provide more travel and better bottom-out control compared to original equipment.
• High-Quality Construction: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined 6061 aluminum components for maximum durability.
• Fully Serviceable: 100% rebuildable and re-tunable, ensuring these coilovers can be maintained for the life of the vehicle.

Notes

• Specifically fits 2005-2023 Toyota Tacoma 2WD (PreRunner) and 4WD models.
• Sold as a complete pair including coil springs and all necessary mounting hardware.
• Recommended for use with ICON Tubular or Billet Upper Control Arms to ensure proper alignment specifications after lifting.
• An ICON spanner wrench (sold separately) is required to perform lift height adjustments.
