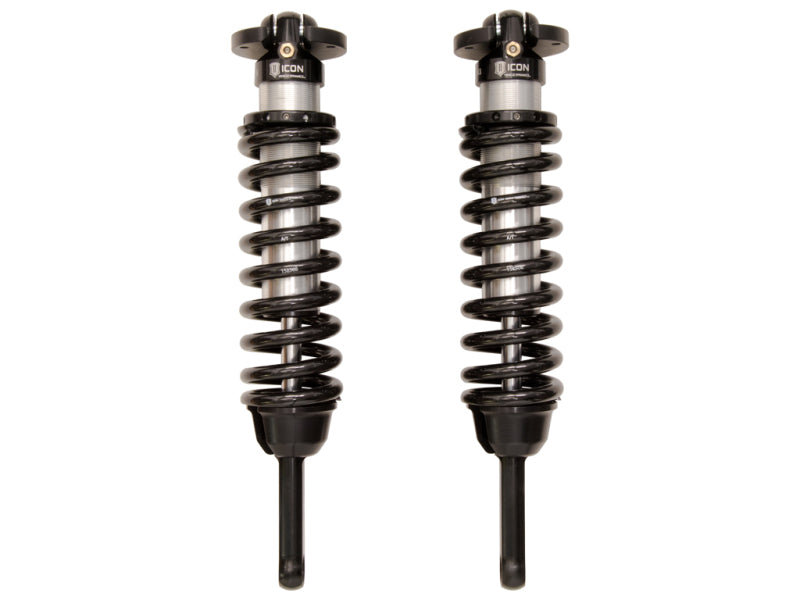

2005-2023 Tacoma Ext Travel 2.5 Series Coilover Kit (ICO58635)

The ICON Vehicle Dynamics V.S. 2.5 Series Extended Travel Internal Reservoir (IR) Front Coilover Kit is a high-performance suspension solution for the 2005-2023 Toyota Tacoma. These coilovers are engineered to provide the maximum amount of wheel travel possible for the Tacoma platform. By utilizing a larger 2.5-inch shock body and increased piston area, these units deliver superior damping control and heat dissipation. The threaded shock bodies provide adjustable lift height, allowing you to level your vehicle and accommodate larger, more aggressive tire and wheel combinations for significantly improved off-road capability.

Features

• Extended Travel Design: Optimized shock length provides maximum suspension droop and increased total wheel travel compared to standard travel shocks.
• Adjustable Lift Height: Threaded shock bodies allow for 0 to 3.5 inches of front lift on 2005-2015 models, or 0 to 2.75 inches on 2016-2023 models.
• 2.5 Series Shock Body: The large diameter shock body increases oil volume, which helps prevent shock fade and ensures consistent performance during technical off-road driving.
• Internal Reservoir (IR): Features a self-contained design that houses the nitrogen charge internally for a clean, simple installation that does not require external reservoir mounting.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the second and third-generation Tacoma.
• Heavy-Duty Construction: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined aluminum components for long-lasting durability.
• Fully Serviceable: Like all ICON shocks, these coilovers are 100% rebuildable and re-tunable, making them a long-term investment for your vehicle.

Notes

• Specifically fits 2005-2023 Toyota Tacoma 2WD (PreRunner) and 4WD models.
• Requires the installation of aftermarket Upper Control Arms (UCAs) to clear the coil springs at full droop and to allow for proper alignment.
• Sold as a complete pair including coil springs and all necessary mounting hardware.
• An ICON spanner wrench (sold separately) is required for performing lift height adjustments.
• Pairing these with ICON 2.0 or 2.5 Aluminum Series rear shocks is highly recommended for balanced suspension performance.
