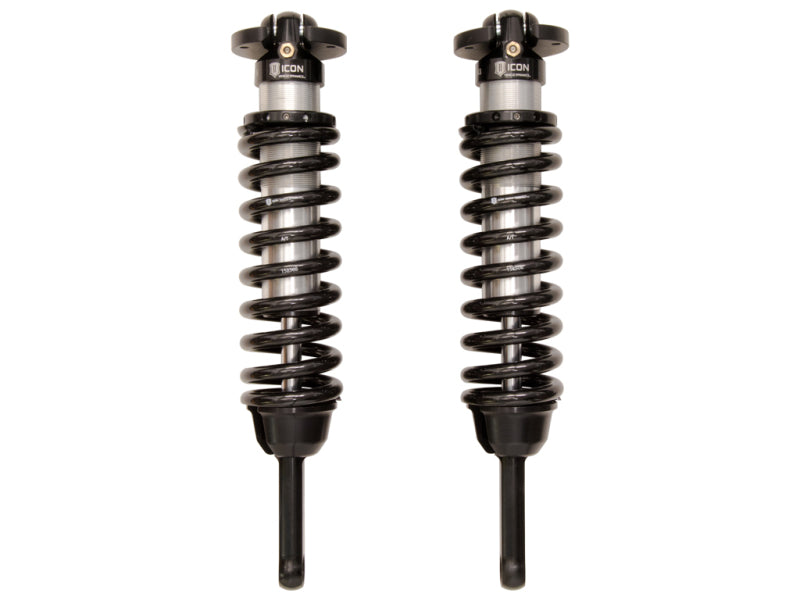

2005-2023 Tacoma 2.5 Series Ext Travel Coilover Kit 700lb Spring Rate (ICO58635-700)

The ICON Vehicle Dynamics V.S. 2.5 Series Extended Travel Internal Reservoir (IR) Front Coilover Kit with a 700 lb/in spring rate is the ultimate front suspension solution for the 2005-2023 Toyota Tacoma. This specific configuration is designed for drivers who have added significant front-end weight, such as heavy-duty steel bumpers, winches, or dual battery systems. By combining a massive 2.5-inch shock body with high-capacity coil springs, these coilovers provide the support and damping required to handle increased loads without sacrificing ride quality or off-road performance. The extended travel design maximizes suspension droop, allowing the front end to articulate more freely over technical terrain.

Features

• 700 lb/in Spring Rate: Includes heavy-duty coil springs engineered to maintain lift height and prevent front-end dive on vehicles with substantial additional weight from aftermarket armor.
• Extended Travel Design: Optimized shock length provides increased suspension droop and total wheel travel compared to standard travel shocks, significantly improving off-road capability.
• Adjustable Lift Height: Threaded shock bodies allow for 0 to 3.5 inches of lift on 2005-2015 models or 0 to 2.75 inches of lift on 2016-2023 models.
• 2.5 Series Shock Body: The large diameter shock body increases oil volume for superior heat dissipation, ensuring consistent damping performance even during aggressive, high-speed off-road use.
• Internal Reservoir (IR): A self-contained design that houses the nitrogen charge internally for a clean, simple bolt-on installation without the need for external reservoir mounting.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the second and third-generation Tacoma platforms.
• High-Quality Construction: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined 6061 aluminum components for long-term durability.

Notes

• Specifically fits 2005-2023 Toyota Tacoma 2WD (PreRunner) and 4WD models.
• Requires the installation of aftermarket Upper Control Arms (UCAs) to prevent binding at full droop and to achieve proper alignment specifications.
• Sold as a complete pair including 700 lb/in coil springs and all necessary mounting hardware.
• An ICON spanner wrench (sold separately) is required to perform lift height adjustments.
• 100% rebuildable and re-tunable for a lifetime of performance.
