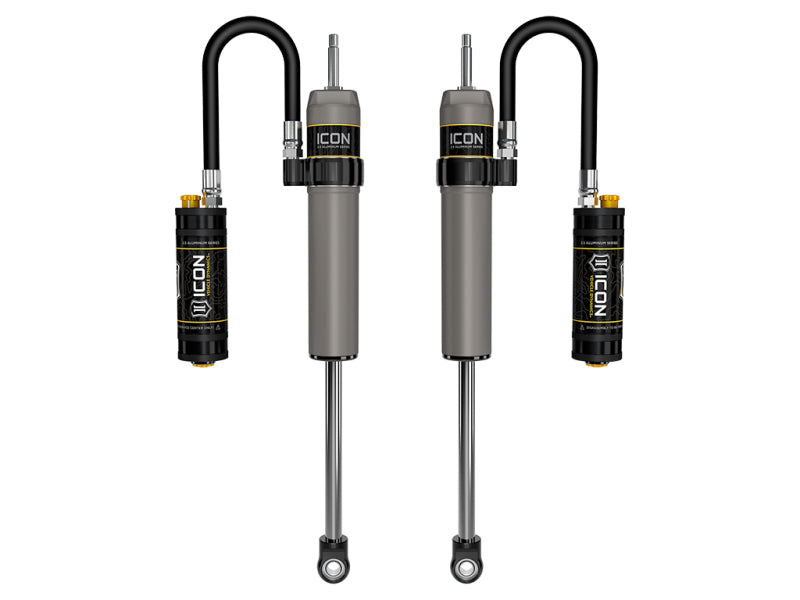

2022-2025 Tundra Rear 0-1" 2.5 Series Shocks (ICO57840CP)

The ICON Vehicle Dynamics V.S. 2.5 Aluminum Series Remote Reservoir (RR) Rear Shocks with CDCV are the ultimate adjustable suspension upgrade for the 2022-UP Toyota Tundra. These shocks feature a large 2.5-inch diameter body and external reservoirs to maximize oil capacity and cooling, specifically tuned for the Tundra's modern coil-spring rear suspension. This model includes ICON’s Compression Damping Control Valve (CDCV), offering 10 levels of external adjustment to quickly tune your ride for everything from a plush street feel to a firm setting for heavy towing or high-speed off-road use. The integrated internal Bump Zone also provides an extra 20% of damping force in the final inches of travel to prevent harsh bottoming out during aggressive impacts.

Features

• CDC Valve (Compression Damping Control): Features an external adjustment knob with 10 notched settings, allowing you to manually tune compression damping to suit your specific cargo load or terrain preference.
• Remote Reservoir Design: External reservoirs significantly increase oil and nitrogen capacity, providing maximum cooling and consistent damping performance even during prolonged off-road use or heavy towing.
• Internal Bump Zone: A unique 6061 billet aluminum manifold creates a secondary damping zone that provides an additional 20% of force at the end of the stroke to control bottom-out.
• Application Specific Tuning: Custom-valved by ICON engineers specifically for the weight and handling characteristics of the 2022-UP Tundra.
• 6061-T6 Aluminum Body: One-piece impact-extruded aluminum shock bodies are lighter than steel, dissipate heat more efficiently, and offer superior resistance to corrosion.
• Serviceable Longevity: 100% rebuildable and re-tunable, ensuring the shocks can be maintained and serviced for the life of the truck.
• Heavy-Duty Construction: Equipped with 7/8-inch chrome-plated hardened steel shafts and high-flow pistons for maximum durability and ride quality.

Notes

• Specifically fits 2022-UP Toyota Tundra 2WD and 4WD models.
• Compatible with rear lift heights of 0 to 1 inch over stock.
• Sold as a pair (includes both left and right rear shocks).
• Includes application-specific reservoir mounting brackets and all necessary hardware for a clean installation.
• Not compatible with models equipped with Load-Leveling Rear Air Suspension.
