2023-2025 GM Colorado UCA DJ Pro Kit (ICO78661DJ)

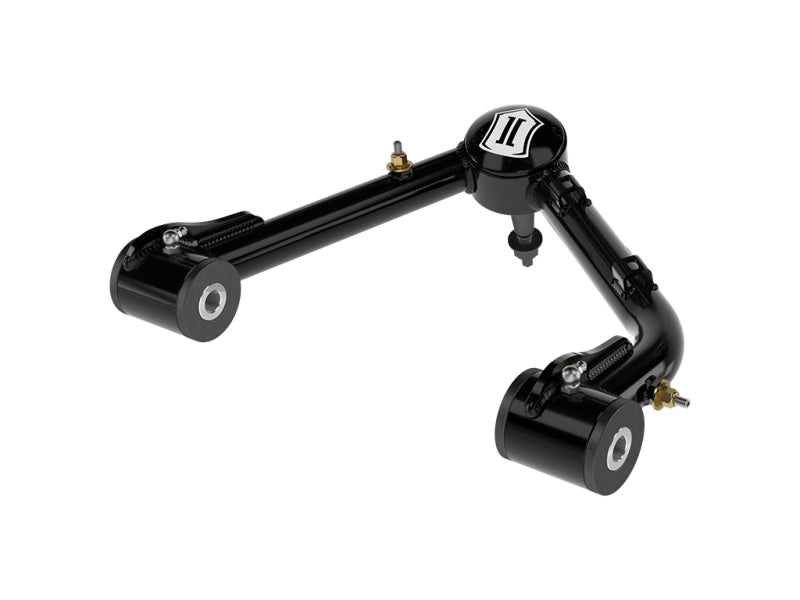

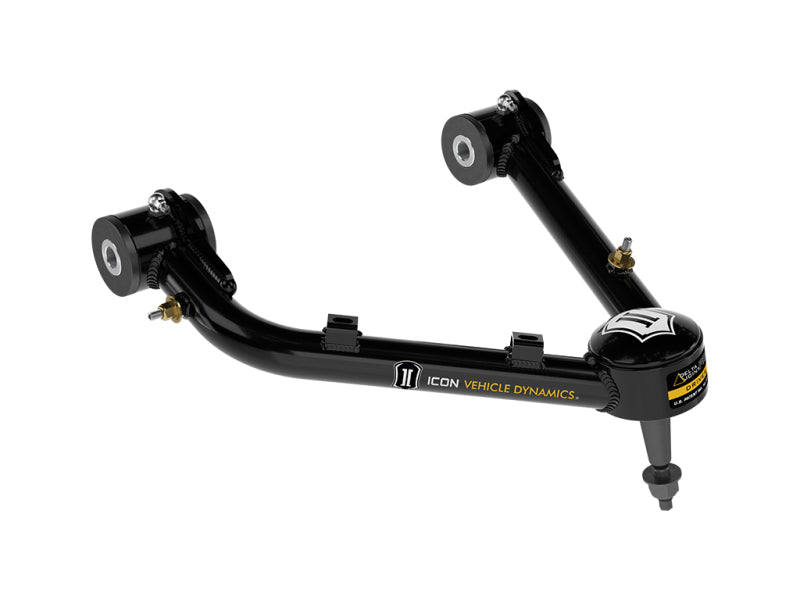

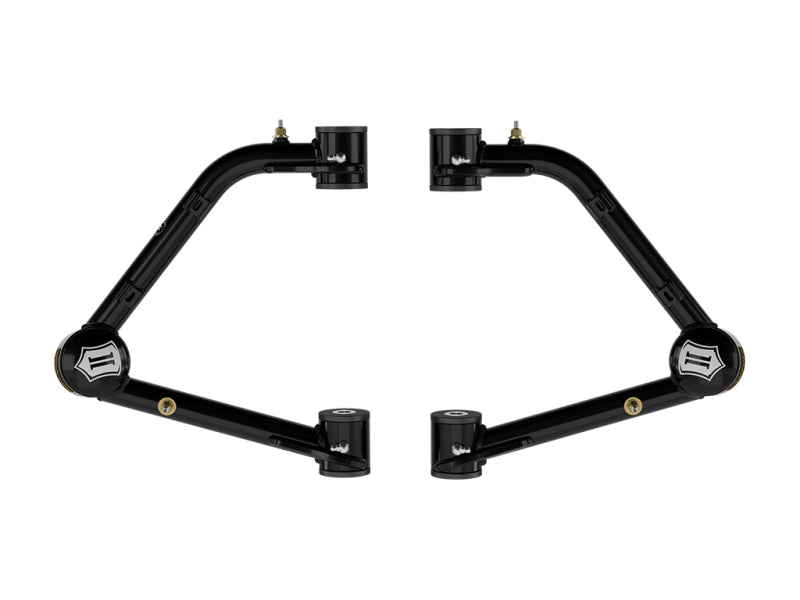

The ICON Vehicle Dynamics Tubular Upper Control Arm (UCA) Kit for the 2023-2025 Chevrolet Colorado features the innovative Delta Joint PRO, offering a significant advancement in off-road performance and serviceability. Engineered to correct front-end geometry and caster on lifted trucks, these arms allow for proper alignment and improved handling characteristics. The Delta Joint PRO provides a massive 90 degrees of articulation, a 14% increase over the original Delta Joint, enabling maximum bind-free suspension movement throughout the entire range of travel.

Features

• Delta Joint PRO Technology: A heavy-duty, high-angle ball joint that combines the durability of a sealed factory joint with strength that exceeds traditional motorsports-style uniballs.
• 90 Degrees of Articulation: Offers 14% more range of motion than the standard Delta Joint, allowing for increased wheel travel without component bind.
• Enhanced Bearing Surface: Features a larger chromoly ball with 56% more bearing surface area and a surface hardened to Rockwell C 55 for extreme durability.
• Fully Rebuildable and Serviceable: Any individual component of the joint can be removed, inspected, and replaced, ensuring long-term value and performance.
• Advanced Lubrication: Redesigned system with efficient distribution channels that provide better grease coverage while maintaining a secure seal against the elements.
• Heavy-Duty DOM Construction: Built from CNC-bent 1026 DOM steel tubing with a durable semi-gloss black powder coat finish.
• Precision Pivot Bushings: Equipped with greasable, dual-stage polyurethane bushings for a responsive and noise-free driving experience.

Notes

• Specifically designed for the 2023-2025 Chevrolet Colorado and GMC Canyon.
• Compatible with 1.75 to 2.5 inches of front lift on Colorado Trail Boss and Canyon Elevation, Denali, and AT4 models.
• Compatible with 0.75 to 1.5 inches of front lift on Colorado ZR2 and Canyon AT4X models.
• Does not fit Chevrolet Colorado WT, LT, or Z71 models.
• Only compatible with OE steering knuckles; do not install with aftermarket knuckles.
• Factory Wheels & Tires Fitment: Yes.
• Recommended Aftermarket Wheels: 17x8.5 with 5.46-inch backspace / 18mm offset.
• Recommended Aftermarket Tires: 35" x 12.50" (larger tires may require trimming).
