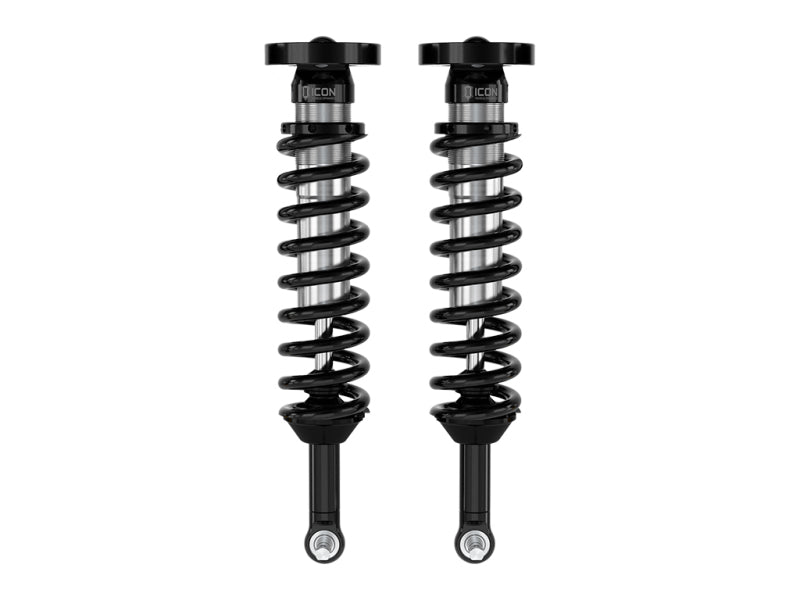

2023-2024 GM 2.5 Series Coilover Kit (ICO71615)

The ICON Vehicle Dynamics 2.5 Series Internal Reservoir (IR) Coilover Kit is a high-performance front suspension upgrade for the 2023-2025 Chevrolet Colorado and GMC Canyon. These coilovers are engineered specifically for the redesigned mid-size GM platform, providing a substantial increase in damping capability and heat dissipation compared to factory shocks. By utilizing a large 2.5-inch diameter shock body, this kit delivers a sport-tuned feel that excels in both technical off-road terrain and daily street driving.

Features

• Adjustable Lift Height: Provides 1.75 to 2.5 inches of front lift height adjustment, allowing for the fitment of larger and more aggressive wheel and tire combinations.
• Increased Wheel Travel: Features an extended shock length that provides a total of 9 inches of front wheel travel while remaining compatible with factory front upper control arms.
• Vehicle Specific Valving: Custom-tuned by ICON engineers for the specific weight, geometry, and performance characteristics of the 2023-UP Colorado and Canyon.
• Internal Reservoir Design: The monotube design with an internal nitrogen-charged reservoir ensures consistent damping and reduces oil cavitation under hard use.
• Premium Construction: Built with a corrosion-resistant CAD-plated shock body, 6061 aircraft-grade aluminum components, and a 7/8-inch induction-hardened chrome-plated steel shaft.
• Serviceable Design: 100% rebuildable and revalveable, allowing the coilovers to be maintained or custom-tuned throughout the life of the vehicle.

Notes

• Specifically fits 2023-2025 Chevrolet Colorado (Trail Boss and ZR2) and GMC Canyon (All Trims) 4WD models.
• Compatible with factory upper control arms, although ICON Delta Joint UCAs are recommended for maximum durability and articulation.
• Lift height ranges may vary slightly between Trail Boss, ZR2, and standard Canyon trims due to factory suspension differences.
• For optimal handling and vehicle balance, ICON recommends pairing these coilovers with ICON 2.0 or 2.5 Series rear shocks.
• A professional alignment is required after installation to ensure proper tire wear and steering geometry.
