2023-2024 GM HD 2.5 Series EXT Travel Coilover Kit (ICO71670)

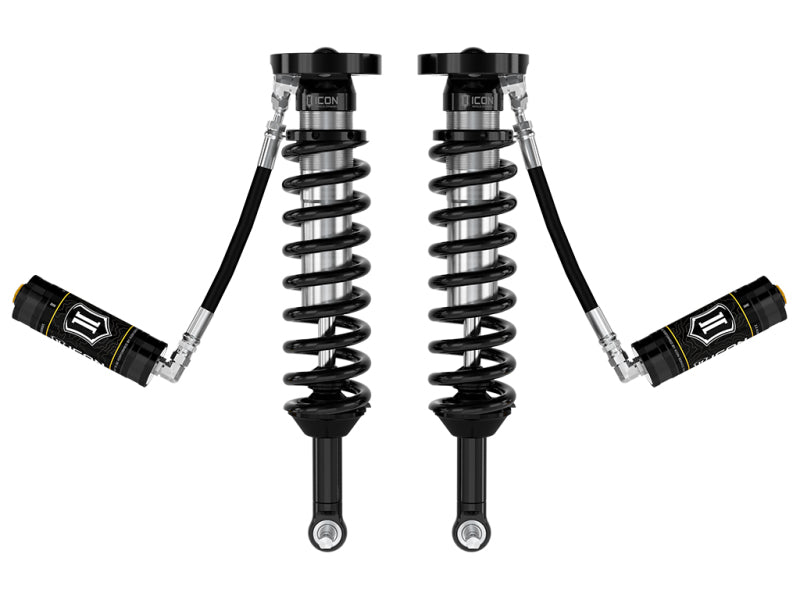

The ICON Vehicle Dynamics 2.5 Series Extended Travel Remote Reservoir (RR) Coilover Kit is a premium front suspension system designed for the 2023-2025 Chevrolet Colorado and GMC Canyon. These coilovers are engineered to maximize the performance of the mid-size GM platform, delivering a total of 10.25 inches of front wheel travel, which represents a 20% increase over the factory suspension. The addition of remote reservoirs ensures that the shocks maintain consistent damping performance by significantly increasing oil volume and cooling surface area.

Features

• Extended Travel Design: Optimized shock length provides 10.25 inches of total front wheel travel for superior off-road articulation and control.
• Remote Reservoir: Greatly increases oil capacity and heat dissipation to prevent cavitation and damping fade during aggressive off-road use.
• Adjustable Lift Height: Provides 1.75 to 2.5 inches of front lift height adjustment, allowing for the fitment of larger wheel and tire combinations.
• Vehicle Specific Valving: Custom-tuned by ICON engineers specifically for the 2023-UP Colorado and Canyon to provide a sport-tuned feel on and off-road.
• Premium Construction: Features a 2.5-inch diameter CAD-plated shock body, 6061 aircraft-grade aluminum components, and a 7/8-inch induction-hardened chrome-plated steel shaft.
• Serviceable Design: 100% rebuildable and revalveable, ensuring the coilovers can be maintained or custom-tuned for the life of the vehicle.

Notes

• Specifically fits 2023-2025 Chevrolet Colorado (Trail Boss and ZR2) and GMC Canyon (All Trims) 4WD models.
• Extended Travel coilovers require the use of aftermarket upper control arms to accommodate the increased down-travel and prevent component bind.
• Includes application-specific reservoir mounting brackets for a secure and clean installation.
• For optimal vehicle balance, ICON recommends pairing these coilovers with ICON 2.0 or 2.5 Series rear shocks.
• A professional alignment is required after installation to ensure proper handling and tire wear.
