2023-2025 GM Canyon Colorado Billet UCA DJ Pro Kit (ICO78760DJ)

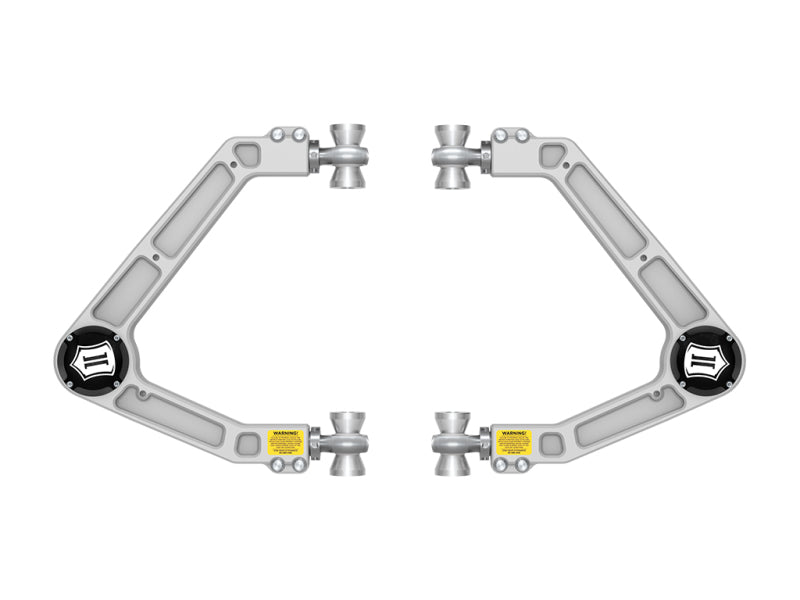

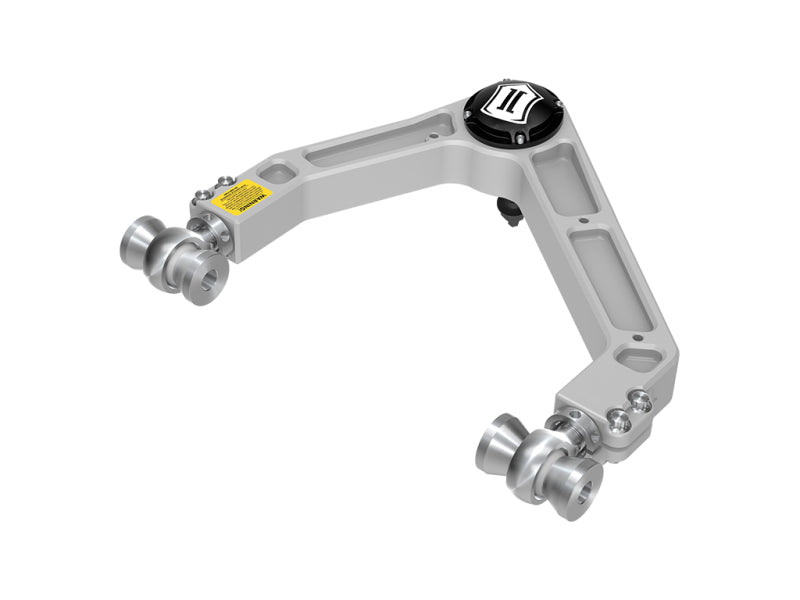

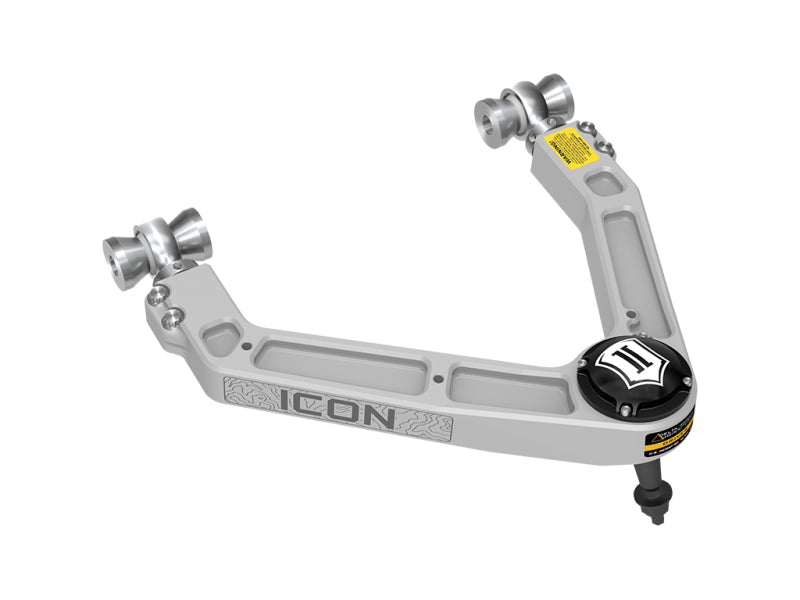

The ICON Vehicle Dynamics Billet Upper Control Arm (UCA) Kit for the 2023-2025 Chevrolet Colorado and GMC Canyon represents the pinnacle of suspension geometry and strength for the mid-size GM platform. These arms are CNC-machined from 6061 billet aluminum with a hybrid H-beam cross-section, providing a superior strength-to-weight ratio compared to traditional tubular designs. Featuring the advanced Delta Joint PRO, this kit offers a massive 90 degrees of articulation and on-vehicle adjustability for a precise alignment on lifted trucks.

Features

• CNC-Machined Billet Construction: Crafted from 6061 aircraft-grade aluminum with a hybrid H-beam design for maximum rigidity and a premium satin anodized finish.
• Delta Joint PRO Technology: A state-of-the-art, high-angle joint that provides a 14% improvement in range of motion (90 degrees total) over the original Delta Joint.
• On-Vehicle Adjustability: Utilizes ICON’s signature double adjuster sleeves and 3/4-inch FK Rod Ends, allowing for quick and precise caster and camber tuning without removing the arms.
• Fully Serviceable: The Delta Joint PRO is 100% rebuildable, and the chassis pivots feature greasable dual-stage polyurethane bushings for quiet, long-term operation.
• Increased Wheel Travel: Engineered to unlock up to 10.25 inches of front wheel travel (a 20% increase) when paired with ICON extended travel coilovers.
• O-Ring Sealed Cap: Includes a built-in billet dust cover cap to protect the joint from environmental contaminants.

Notes

• Specifically fits "Ultra-Wide Stance" models: 2023-2025 Chevrolet Colorado Trail Boss/ZR2 and GMC Canyon Elevation, AT4, Denali, and AT4X.
• Front Lift Compatibility: Works with 0-2.5" lift on Trail Boss/AT4/Denali/Elevation and 0-1.5" lift on ZR2/AT4X models.
• Exclusions: Will not fit Chevrolet Colorado WT, LT, or Z71 models. Not compatible with models equipped with Multimatic Jounce Control Dampers.
• Knuckle Compatibility: Only compatible with OE steering knuckles; do not install with aftermarket knuckles.
• Wheels: Factory wheels and tires are compatible. Recommended aftermarket wheels: 17x8.5 with 5.46" Backspace / 18mm Offset.
• Tires: Recommended up to 35" x 12.50" (larger tires may require fender trimming and modifications).
