2023-2024 GM HD Tubular UCA DJ Pro Kit (ICO78660DJ)

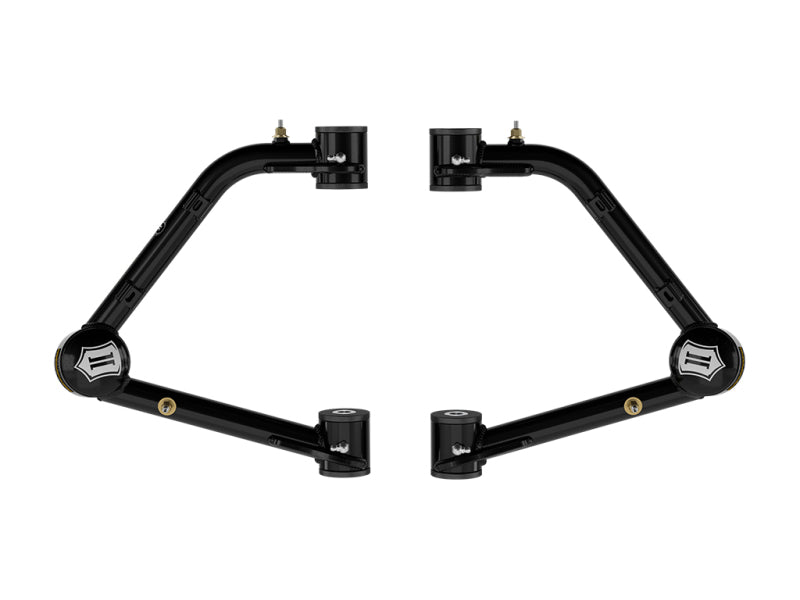

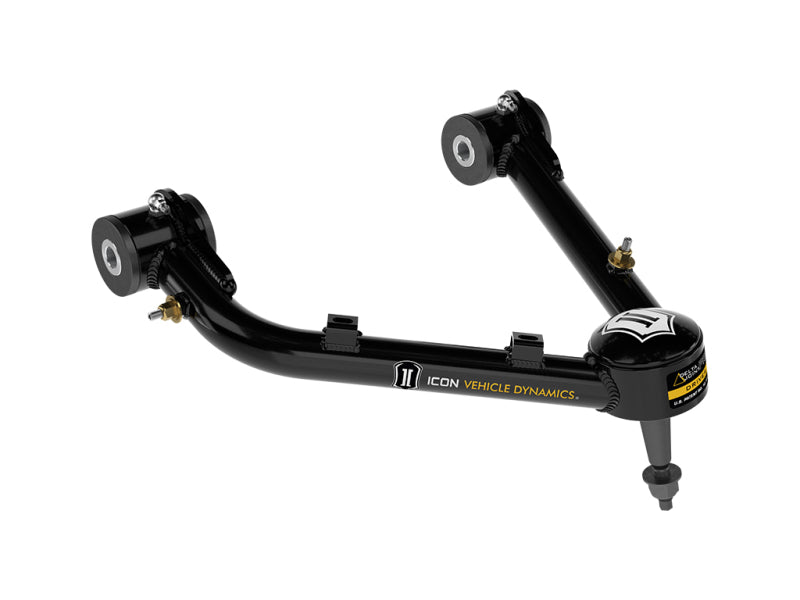

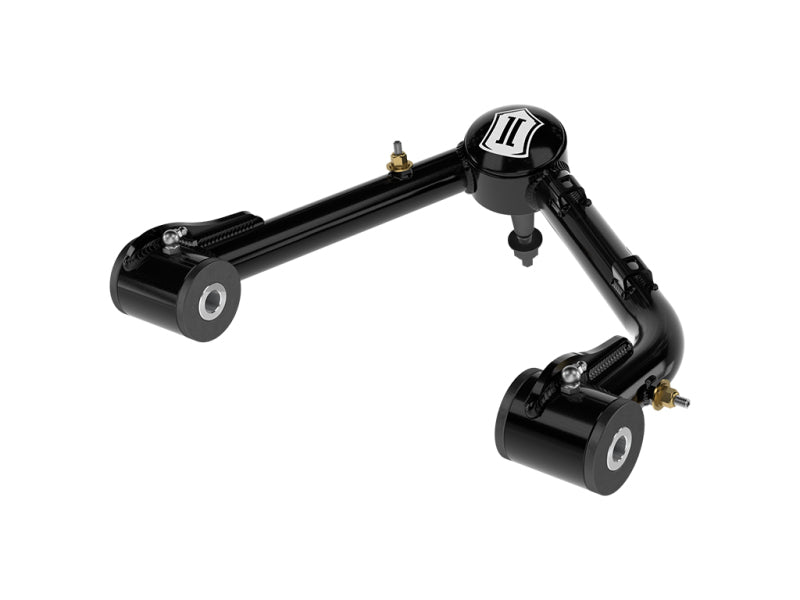

The ICON Vehicle Dynamics Tubular Upper Control Arm (UCA) Kit for the 2023-2025 Chevrolet Colorado and GMC Canyon features the advanced Delta Joint PRO, representing a significant leap in off-road articulation and serviceability. These arms are engineered to correct front-end geometry and caster on lifted trucks, providing the necessary range for a precise alignment. The Delta Joint PRO is a 100% rebuildable and serviceable high-angle ball joint that offers 90 degrees of total articulation, a 14% improvement over the original Delta Joint, enabling maximum bind-free suspension travel.

Features

• Delta Joint PRO Technology: Combines the extreme strength and articulation of a motorsports-style ball joint with the longevity and weather sealing of a factory-style joint.
• Increased Articulation: Delivers a full 90 degrees of range of motion, allowing for 20% more wheel travel when paired with ICON extended travel coilovers.
• Enhanced Durability: Features a larger chromoly ball with 56% more bearing surface area than the standard Delta Joint, hardened to Rockwell C 55 for superior wear resistance.
• Fully Rebuildable: Designed so that any component can be removed, inspected, and replaced individually without needing to purchase an entirely new joint.
• Advanced Lubrication: Redesigned system with efficient distribution channels that provide better grease coverage without compromising the bearing seals.
• Tubular DOM Construction: Fabricated from heavy-wall 1026 DOM steel tubing, CNC-bent and fixture-welded for maximum structural integrity.
• Premium Pivot Bushings: Equipped with greasable, dual-stage polyurethane bushings at the frame pivots for a responsive, noise-free driving experience.

Notes

• Specifically fits "Ultra-Wide Stance" models: 2023-2025 Chevrolet Colorado Trail Boss/ZR2 and GMC Canyon AT4, Denali, Elevation, and AT4X.
• Compatible with 1.75-2.5 inches of front lift on Canyon AT4/Denali/Elevation and Colorado Trail Boss.
• Compatible with 0.75-1.5 inches of front lift on Canyon AT4X and Colorado ZR2.
• Will not fit Chevrolet Colorado WT, LT, or Z71 trims.
• Only compatible with OE steering knuckles; do not install with aftermarket knuckles.
• Factory wheel and tire fitment: Yes.
• Recommended Aftermarket Wheels: 17x8.5 with 5.46-inch backspace (18mm offset).
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but require fender trimming and modifications).
