2024-2025 Land Cruiser 250 Series Front 2.5 VS IR Coilover Kit (ICO58691)

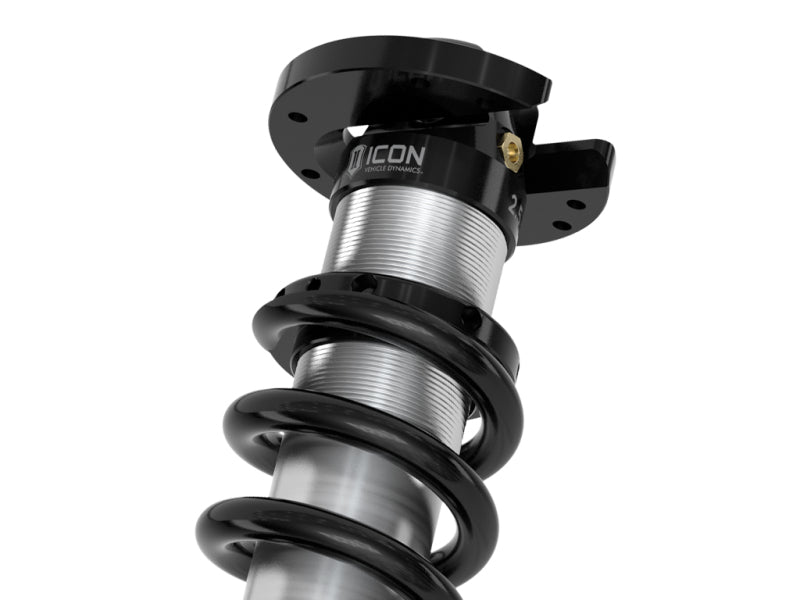

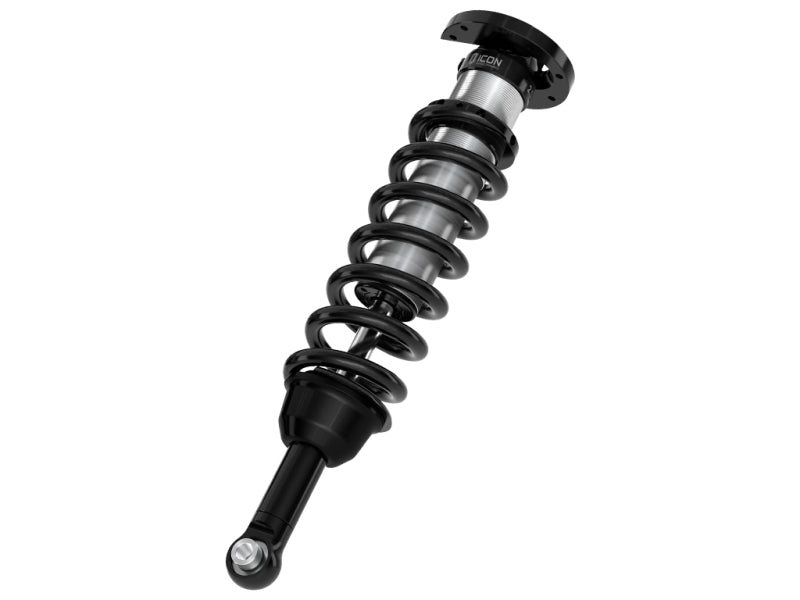

The ICON Vehicle Dynamics V.S. 2.5 Series Internal Reservoir (IR) Front Coilover Kit is a premier suspension upgrade for the 2024-UP Toyota Land Cruiser 250 Series (Prado). These coilovers are engineered to replace the factory front struts with a high-performance 2.5-inch diameter shock body, offering significantly more piston surface area and oil volume. This design delivers superior damping control and heat dissipation, ensuring a refined ride on the street and high-performance handling across rugged terrain. With adjustable lift height, these coilovers allow you to level your Land Cruiser's stance and clear larger, more aggressive wheel and tire combinations.

Features

• Adjustable Lift Height: Threaded shock bodies provide 1.25 to 3 inches of front lift height adjustment, allowing for a perfectly leveled stance and increased tire clearance.
• 2.5 Series Shock Body: Large diameter bodies increase oil capacity to help dissipate heat and maintain consistent damping performance during prolonged off-road use.
• Internal Reservoir (IR): A self-contained design that houses the nitrogen charge internally, offering a clean, bolt-on installation without the need for external reservoir mounting brackets.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the Land Cruiser 250 Series platform.
• Improved Wheel Travel: The vehicle-specific shock length and increased piston area provide more travel and better bottom-out control compared to original equipment.
• High-Quality Construction: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined 6061 aluminum components for professional-grade durability.
• Fully Serviceable: 100% rebuildable and re-tunable, ensuring these coilovers can be maintained for the life of the vehicle.

Notes

• Specifically fits 2024-UP Toyota Land Cruiser 250 Series models.
• Requires an ICON front differential drop kit to maintain proper CV axle angles at higher lift heights.

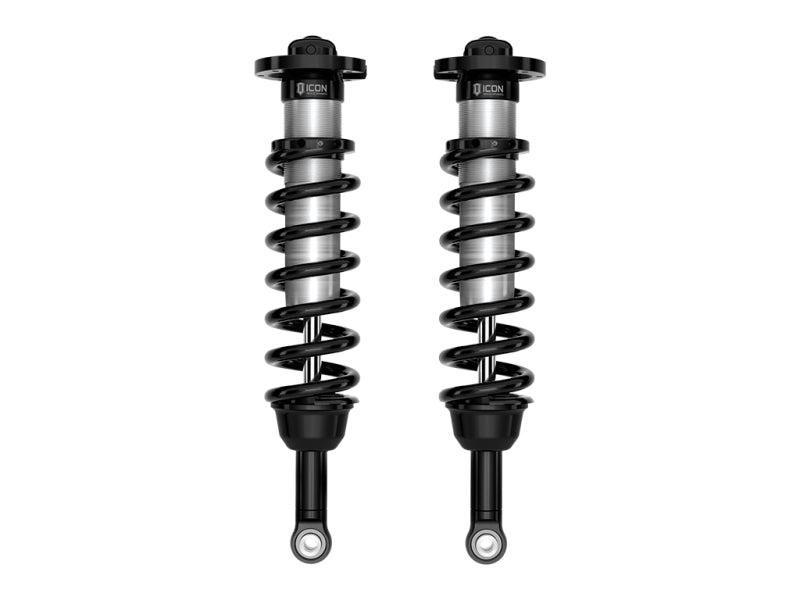

• Sold as a complete pair including coil springs and all necessary mounting hardware.
• Recommended for use with ICON Billet Upper Control Arms to ensure proper alignment specifications after lifting.
• An ICON spanner wrench (sold separately) is required to perform lift height adjustments.
