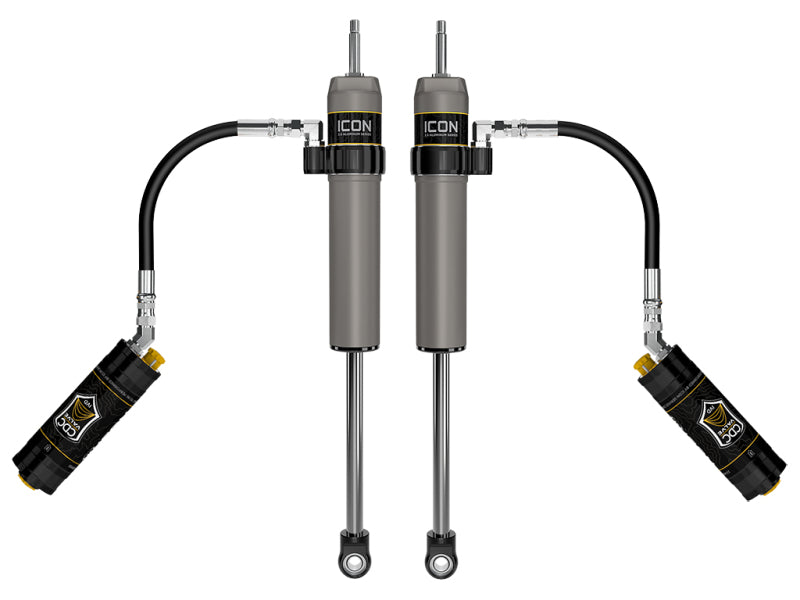

2024-2025 Tacoma 0-1" Rear 2.5 Series Shock (ICO57808CP)

The ICON Vehicle Dynamics V.S. 2.5 Aluminum Series Remote Reservoir (RR) Rear Shocks with CDCV represent the pinnacle of adjustable performance for the 2024-UP Toyota Tacoma. These shocks utilize a large 2.5-inch diameter body and external reservoirs to significantly increase oil volume, ensuring the suspension remains cool and consistent during high-speed desert runs or heavy hauling. This pair comes equipped with ICON’s Compression Damping Control Valve (CDCV), offering 10 levels of external adjustment to quickly tune the ride for any terrain or cargo load. Additionally, the internal Bump Zone provides a critical extra 20% of damping force in the final inches of travel to prevent harsh bottoming out during aggressive impacts.

Features

• CDC Valve (Compression Damping Control): Features an external adjustment knob with 10 notched settings, allowing you to manually dial in compression damping for the street, rock crawling, or high-speed desert driving.
• Remote Reservoir Design: External reservoirs maximize oil and nitrogen capacity for superior heat dissipation, virtually eliminating shock fade under extreme use.
• Internal Bump Zone: A unique 6061 billet aluminum manifold creates a secondary damping zone that provides an additional 20% of force at the end of the stroke to control bottom-out.
• Application Specific Tuning: Custom-valved by ICON engineers specifically for the unique dynamics and weight of the 2024-UP Tacoma’s rear suspension.
• 6061-T6 Aluminum Body: One-piece impact-extruded aluminum shock bodies offer superior corrosion resistance and dissipate heat faster than traditional steel.
• Fully Serviceable: 100% rebuildable and re-tunable, ensuring these shocks can be maintained and adjusted for the entire life of the truck.
• Heavy-Duty Construction: Includes 7/8-inch chrome-plated hardened steel shafts and high-flow pistons for maximum durability and ride quality.

Notes

• Specifically fits 2024-UP Toyota Tacoma models equipped with rear coil-spring suspension.
• Compatible with rear lift heights of 0 to 1 inch over stock.
• Sold as a pair (includes both rear shocks).
• Not compatible with models equipped with Adaptive Variable Suspension (AVS).
• Includes application-specific reservoir mounting hardware for a clean and secure installation.
