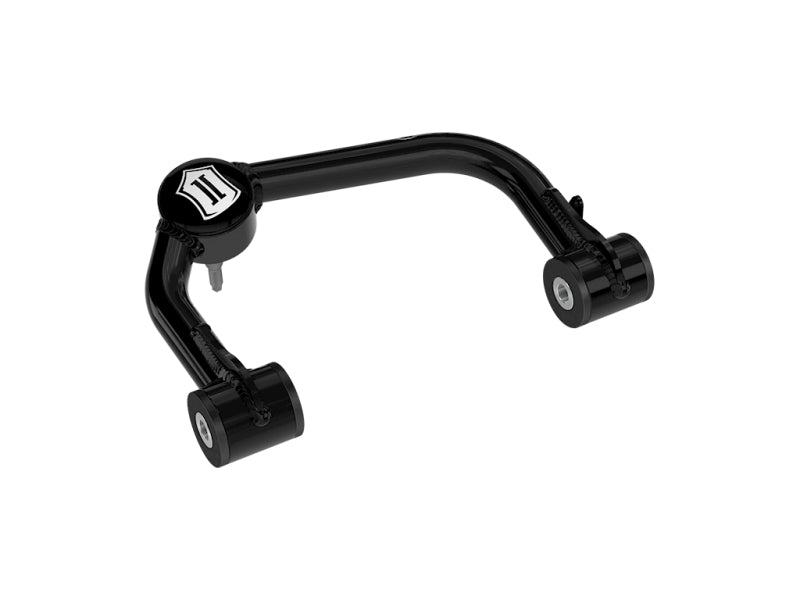

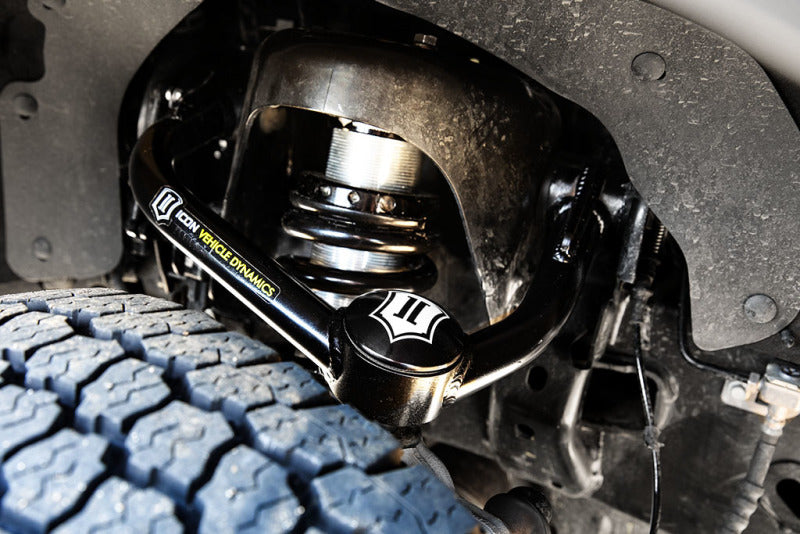

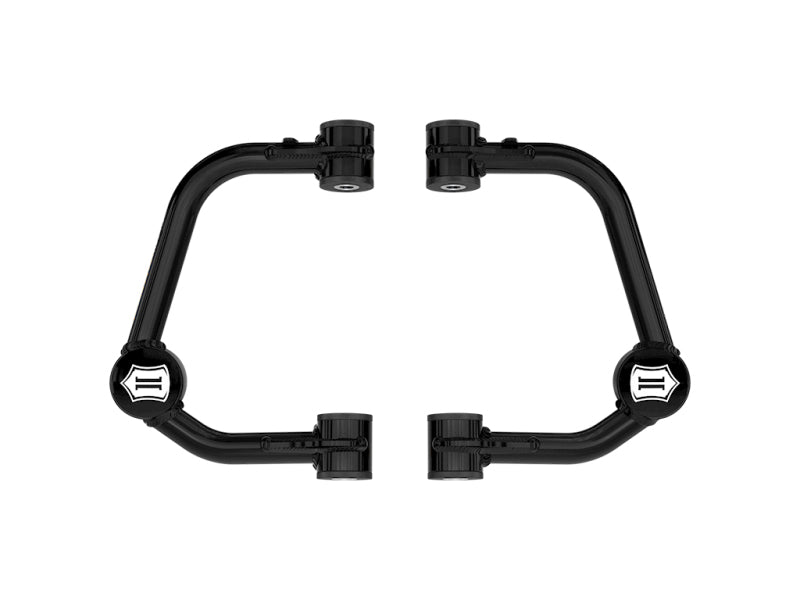

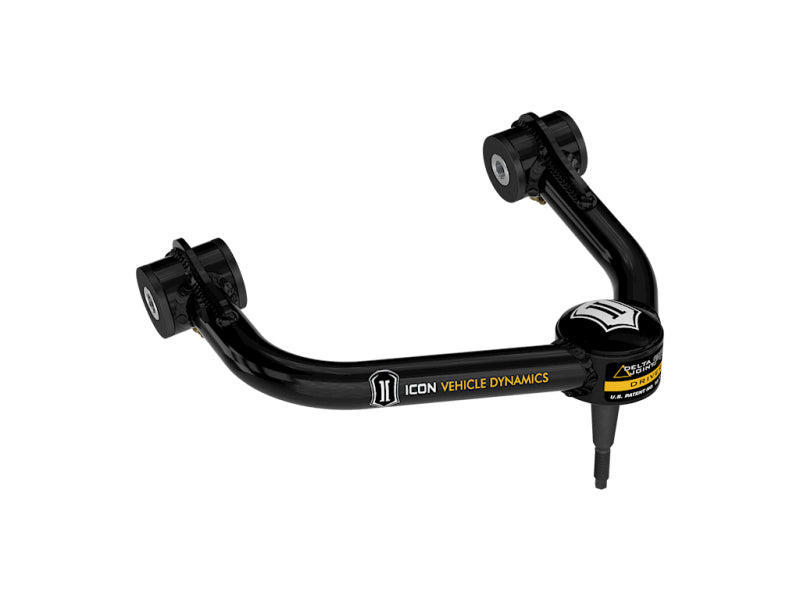

2021-2025 F-150 Front Tubular Upper Control Arms w/ Delta Joint Pro (ICO98522DJ)

Description

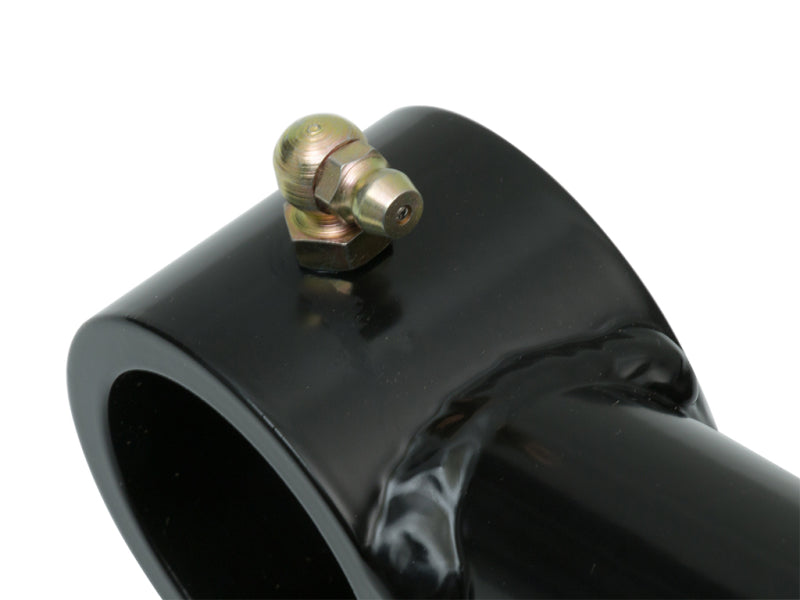

These tubular steel upper control arms free up your Ford F-150 front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the Ford F-150.

Features

• Built in added caster for better handling on lifted vehicles
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable

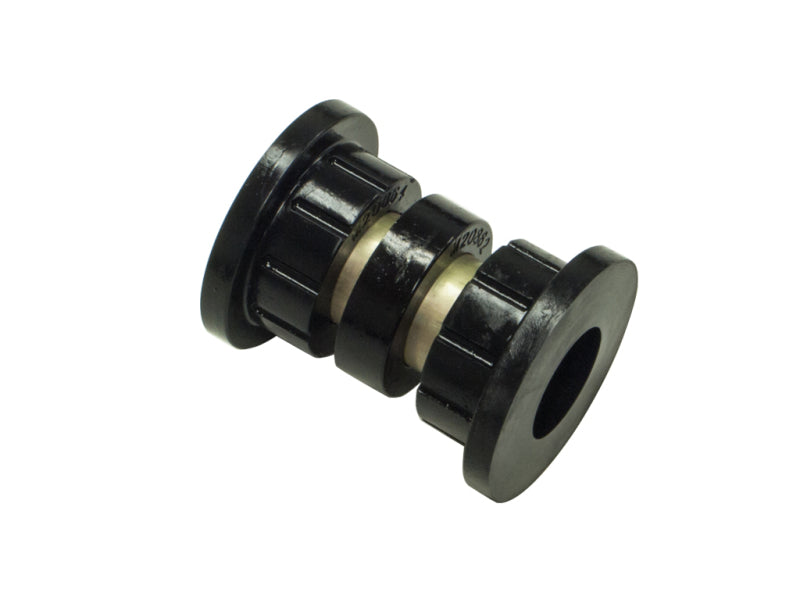

• Serviceable dual stage polyurethane pivot bushings
• CNC machined housings for bushings and Delta Joint PRO
• 1026 DOM tube construction with black powder coat finish
• Includes billet dust caps for Delta Joint PRO

Notes

• Will not work with factory installed electronically controlled suspension
• Will not fit F-150 Raptor
• Only compatible with OE or ICON steering knuckles. DO NOT install in combination with ANY other aftermarket steering knuckles.
•  Compatible with 1.75-3.5" of front lift on all F-150 submodels except Raptor and Tremor with OE steering knuckles
• Compatible with 3.5-4.5" of front lift on all F-150 submodels except Raptor and Tremor with ICON Front Knuckle Kit Part # 94000
• Compatible with 1-3" of front lift over stock on F-150 Tremor with OE steering knuckles

Recommended Tire & Wheel Fitment

• Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
