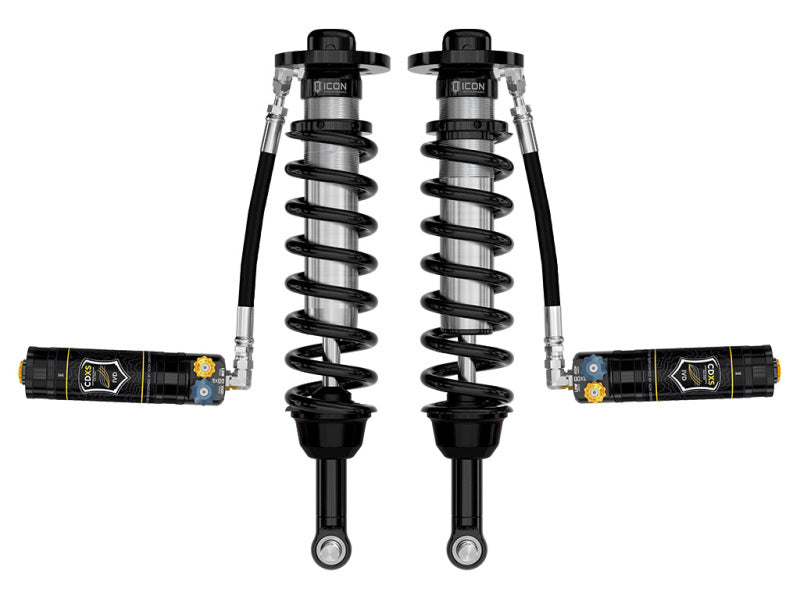

2021-2025 F-150 4WD 0-2.75" Lift Front V.S. 2.5 Series Coilover Remote Reservoir w/ CDXS (ICO91823X)

Description

The ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2025 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

Features

• Increased wheel travel and ride quality over stock
• Adjustable for 0-2.75" of front lift over stock
• Vehicle specific tuned for superior shock damping and control

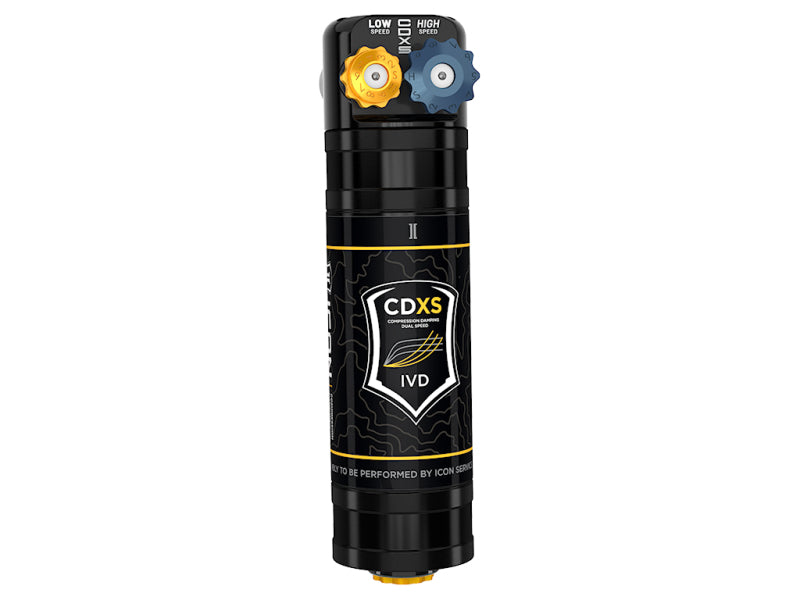

• External reservoirs to attain cooler operating temperatures during extended off-road use

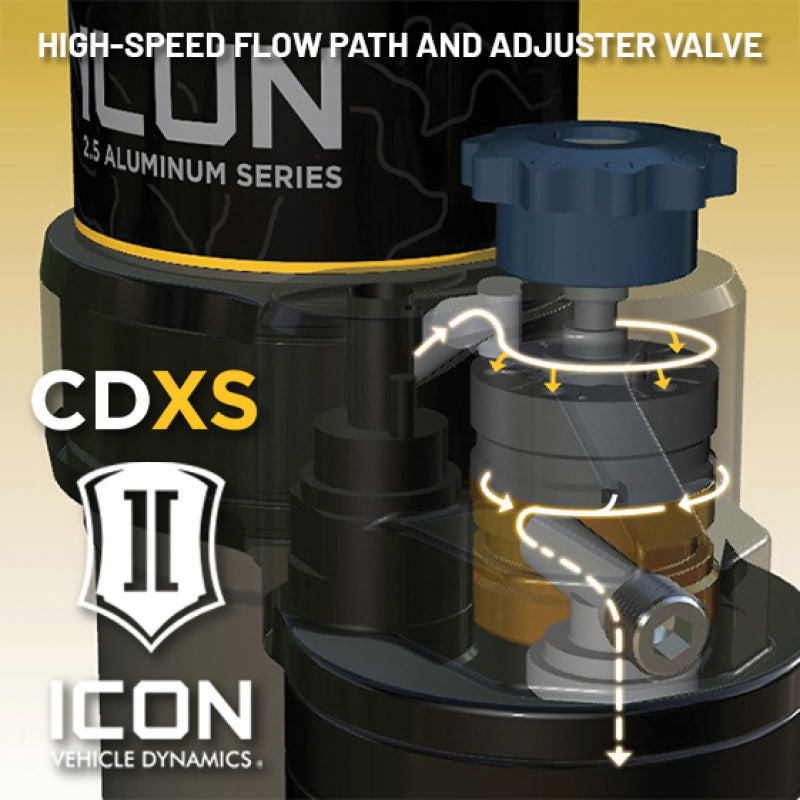

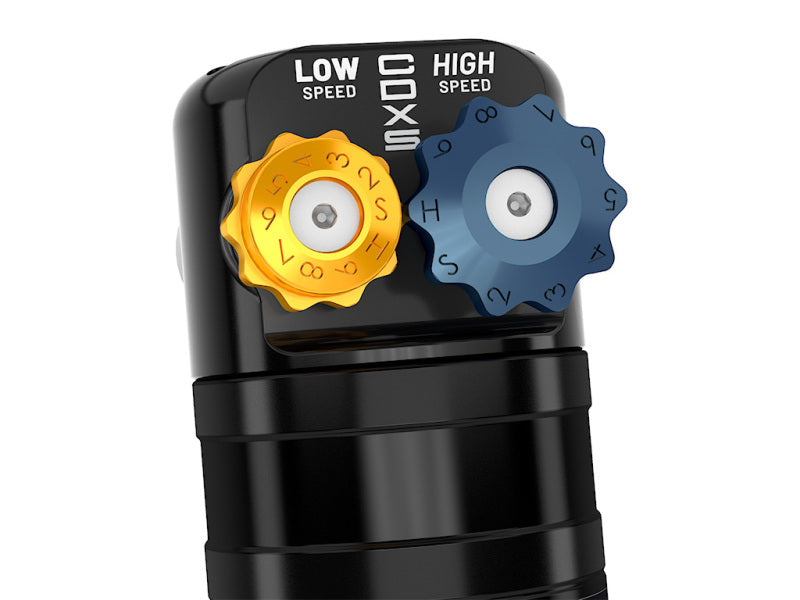

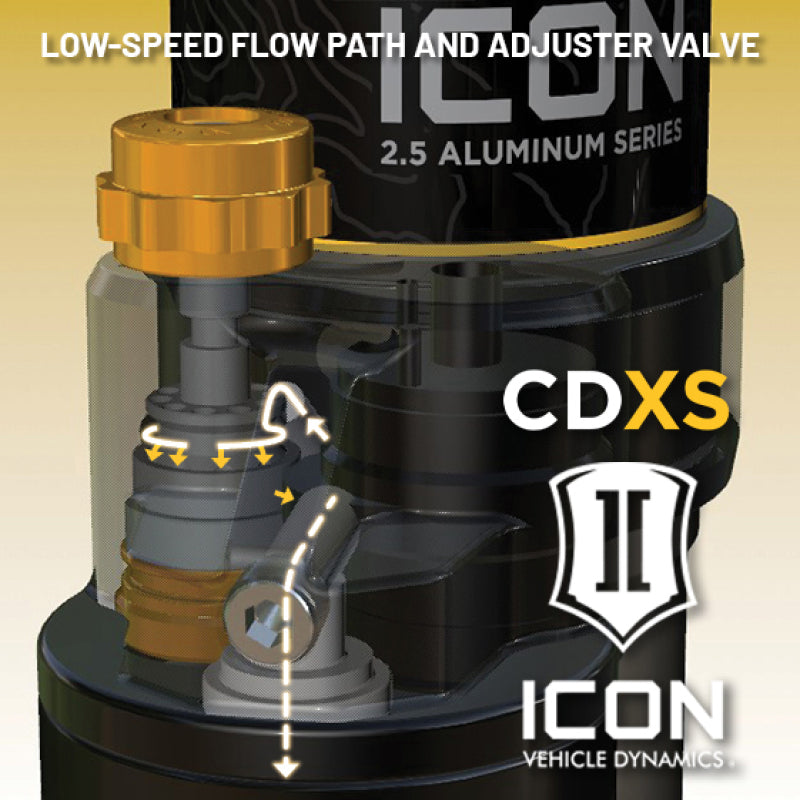

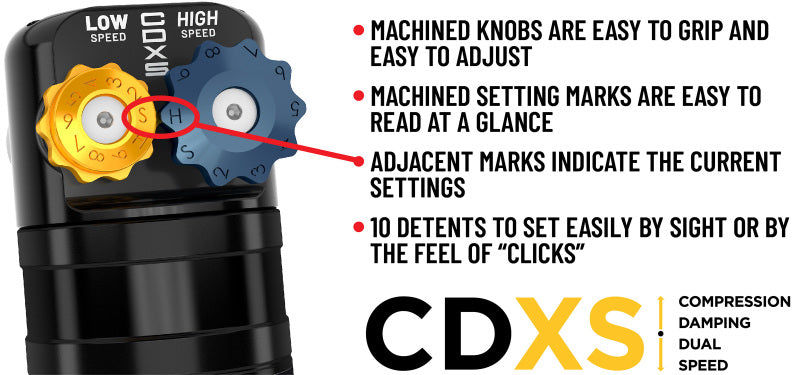

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation

Recommended Tire & Wheel Fitment

• Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
•  ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Notes

• Only fits 4WD models
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Will not work with factory installed electronically controlled suspension.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• Will not fit F-150 Tremor or F-150 Raptor
• Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
