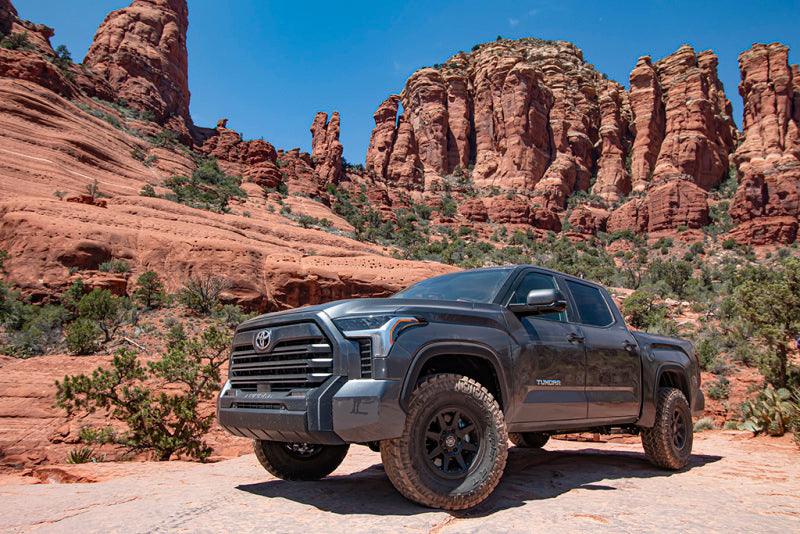

2022-2025 Tundra 2.5 EXP Front Coilover Shock (ICO58671)

The ICON Vehicle Dynamics EXP Series front shock absorbers for the 2022-UP Toyota Tundra and 2023-UP Toyota Sequoia bridge the gap between basic spacer lifts and high-end threaded coilovers. By combining a fully rebuildable 2.5-inch diameter premium shock with the cost-benefits of utilizing the truck’s factory coil springs, the EXP series offers a high-performance, economical suspension solution. These shocks provide increased damping capacity and adjustable ride height while significantly improving ride quality both on and off-road.

Features

• Adjustable Lift Height: Multiple snap-ring grooves machined into the shock body allow for easily selectable front-end lift heights from 0 to 3 inches over stock.

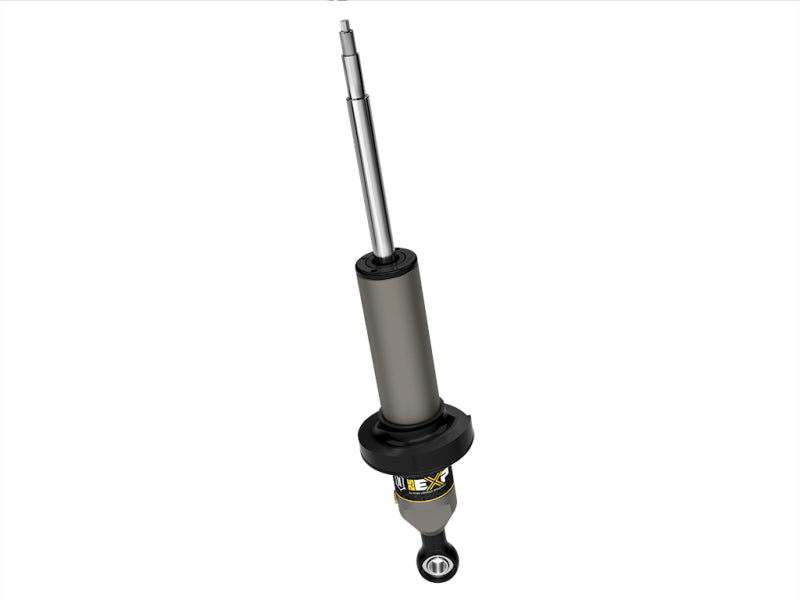

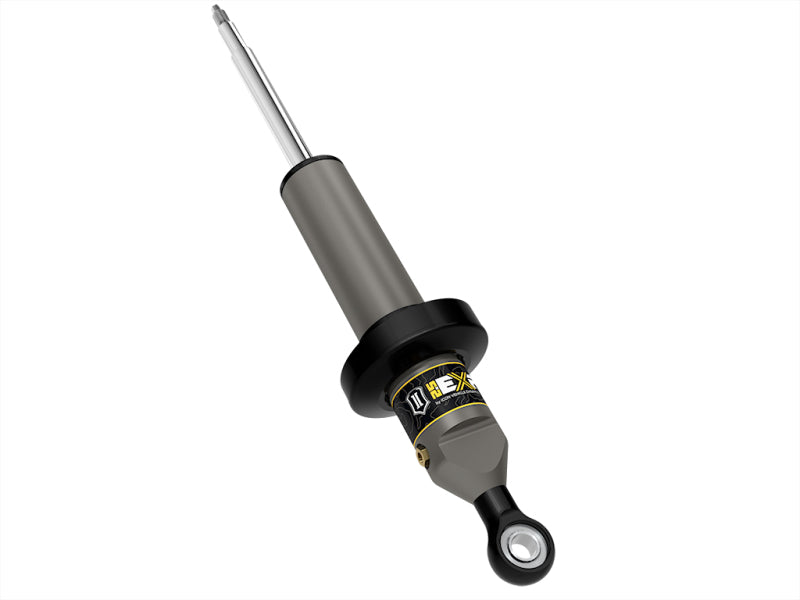

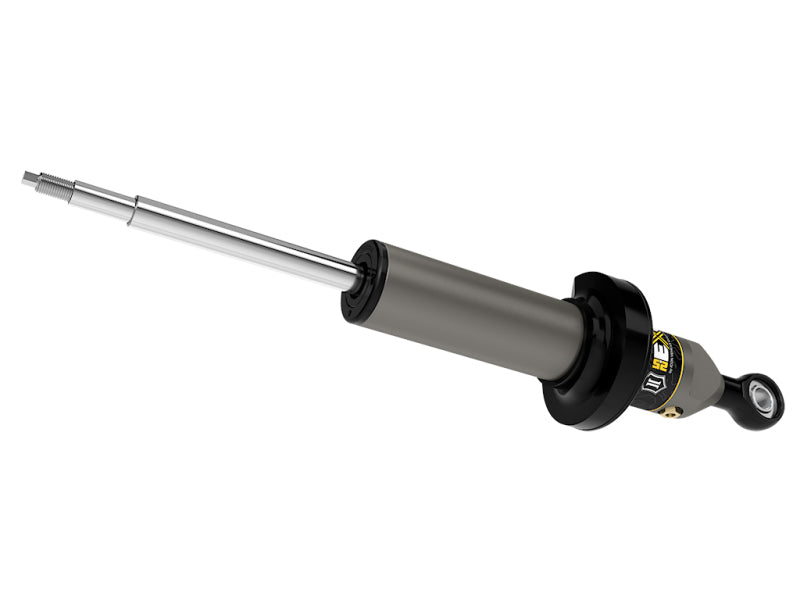

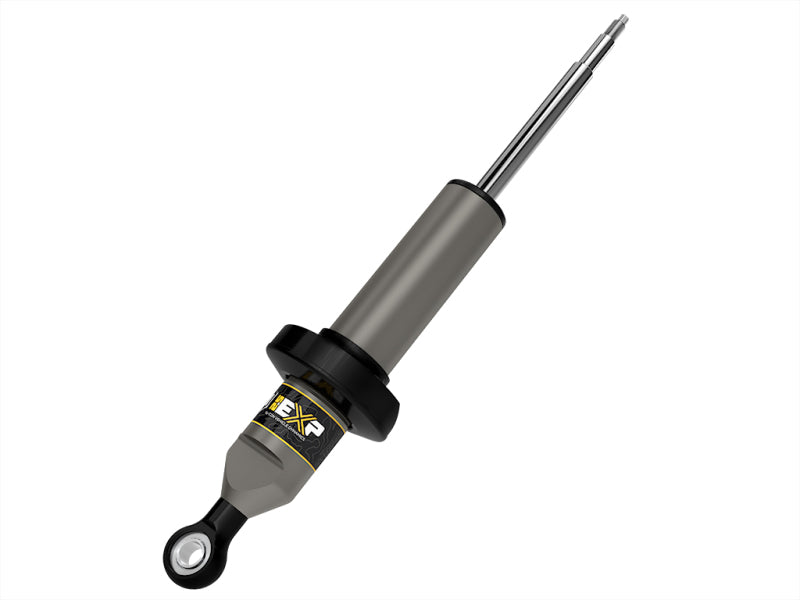

• 2.5-Inch Aluminum Body: One-piece impact-extruded aluminum construction provides superior heat dissipation and corrosion resistance compared to factory steel shocks.
• Digressive Piston Design: Features ICON’s signature valving specifically tuned to work with the 2022+ Tundra OE coil springs for maximum control and comfort.
• Heavy-Duty Components: Equipped with a massive 7/8-inch induction-hardened, chrome-plated shaft and CNC-machined 6061 billet aluminum spring seats.

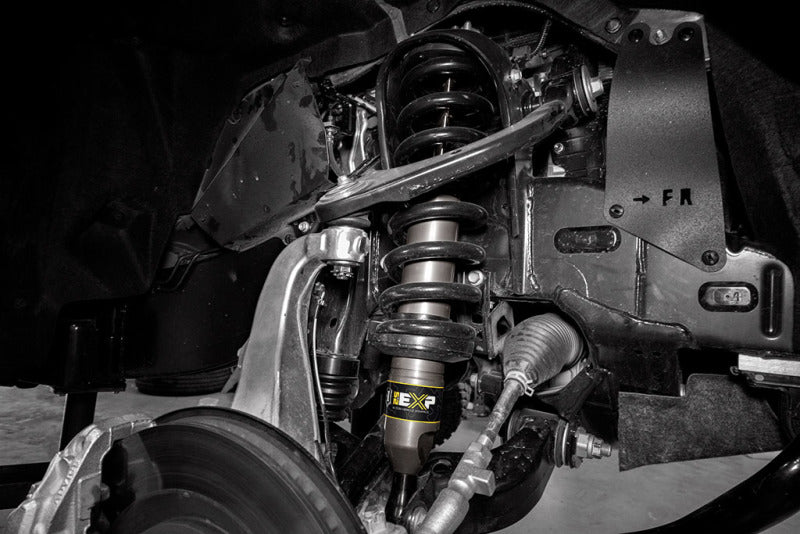

• Factory Compatibility: Designed to re-use the vehicle’s OE upper shock and spring mounts for a simplified installation process.
• Hard Anodized Finish: The aluminum body is finished with a durable hard anodizing for a premium look and excellent resistance to abrasion.
• Fully Serviceable: Unlike most mid-range shocks, the EXP series is 100% rebuildable and re-valvable by any qualified shock technician.

Notes

• Specifically fits 2022-UP Toyota Tundra (2WD/4WD) and 2023-UP Toyota Sequoia (2WD/4WD) models.
• Utilizes the factory coil springs, which must be transferred from the original equipment shocks.
• Compatible with both standard and Adaptive Variable Suspension (AVS) equipped models, though AVS functionality may be affected.
• A coil spring compressor is required for installation to swap the factory springs onto the EXP shock bodies.
• Pairing with ICON 2.0 or 2.5 Aluminum Series rear shocks is recommended for a balanced suspension feel.
