1996-2002 4Runner Ext Travel 2.5 Series Coilover Kit (ICO58716)

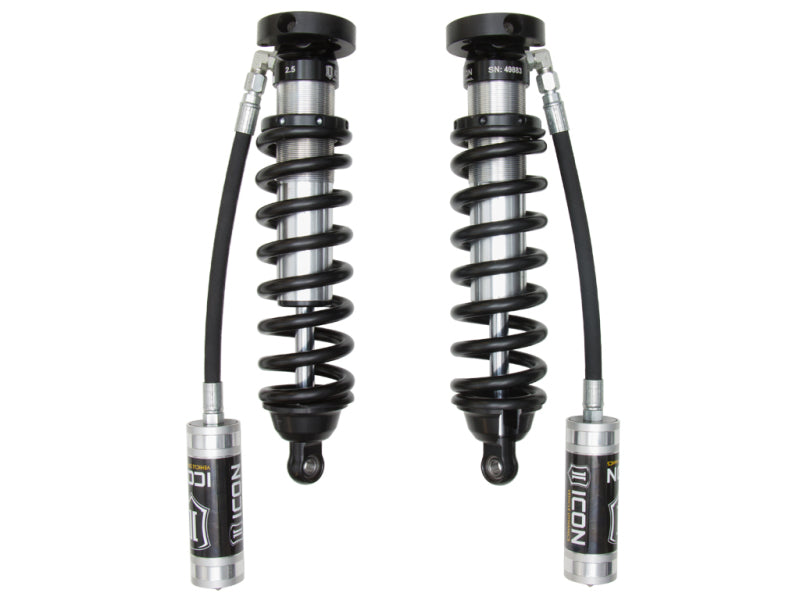

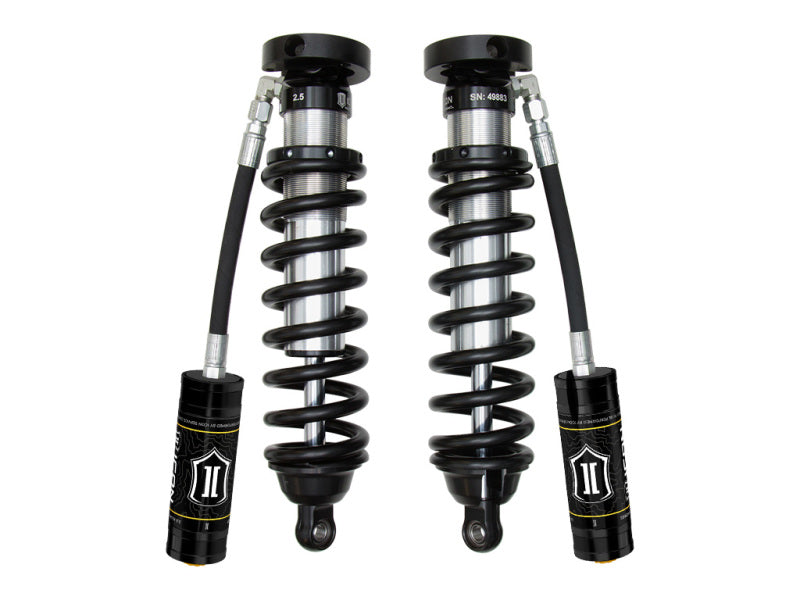

The ICON Vehicle Dynamics V.S. 2.5 Series Extended Travel Remote Reservoir (RR) Front Coilover Kit is a high-performance suspension solution for the 1996-2002 Toyota 4Runner. These coilovers are engineered to maximize off-road capability by providing increased wheel travel and superior heat management. The remote reservoir design increases oil capacity and cooling surface area, preventing shock fade during high-speed desert runs or technical trail sessions. By utilizing a larger 2.5-inch shock body, these units deliver a sport-tuned feel with exceptional damping control on any terrain.

Features

• Extended Travel Design: Optimized shock length yields the maximum wheel travel possible when paired with aftermarket upper control arms.
• Remote Reservoir (RR): External reservoirs significantly increase oil volume and cooling surface area, ensuring consistent damping performance even during heavy use in hot environments.
• Adjustable Lift Height: Threaded shock bodies provide 0 to 3 inches of front lift height adjustment to accommodate larger, more aggressive wheel and tire combinations.
• 2.5 Series Shock Body: Large diameter bodies increase piston surface area, providing improved damping and ride quality compared to factory equipment.
• Application Specific Valving: Custom-tuned by ICON engineers specifically for the weight and suspension geometry of the third-generation 4Runner chassis.
• High-Quality Construction: Built with 7/8-inch chrome-plated hardened steel shafts and CNC-machined 6061 aluminum components for long-lasting durability.
• Fully Serviceable: 100% rebuildable and re-tunable, making these coilovers a permanent high-performance investment for your vehicle.

Notes

• Specifically fits 1996-2002 Toyota 4Runner 2WD and 4WD models.
• Requires the installation of aftermarket Upper Control Arms (UCAs) to clear the coil springs at full droop and achieve proper alignment.
• Sold as a complete pair including coil springs, remote reservoirs, hose clamps, and all mounting hardware.
• An ICON spanner wrench (sold separately) is required for lift height adjustments.
• Pairing these with ICON 2.0 Aluminum Series or 2.5 Series rear shocks is recommended for balanced suspension performance.
