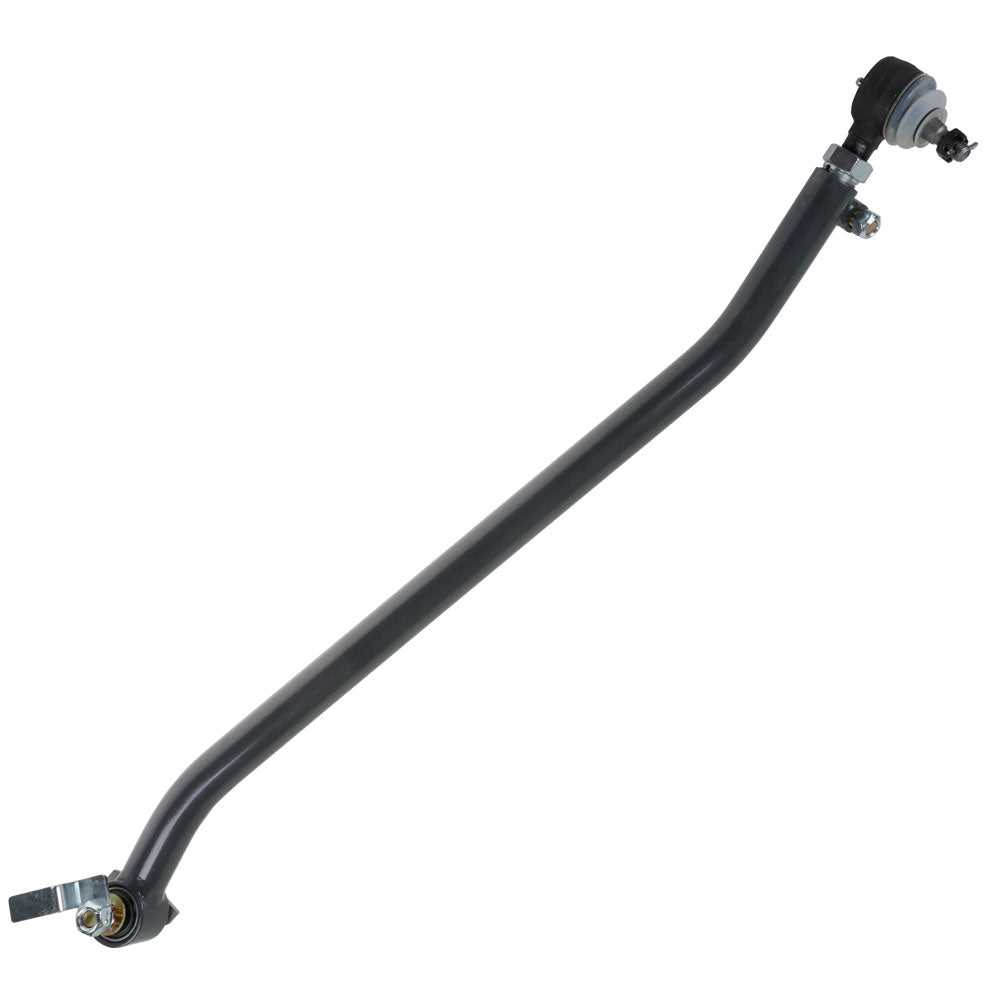

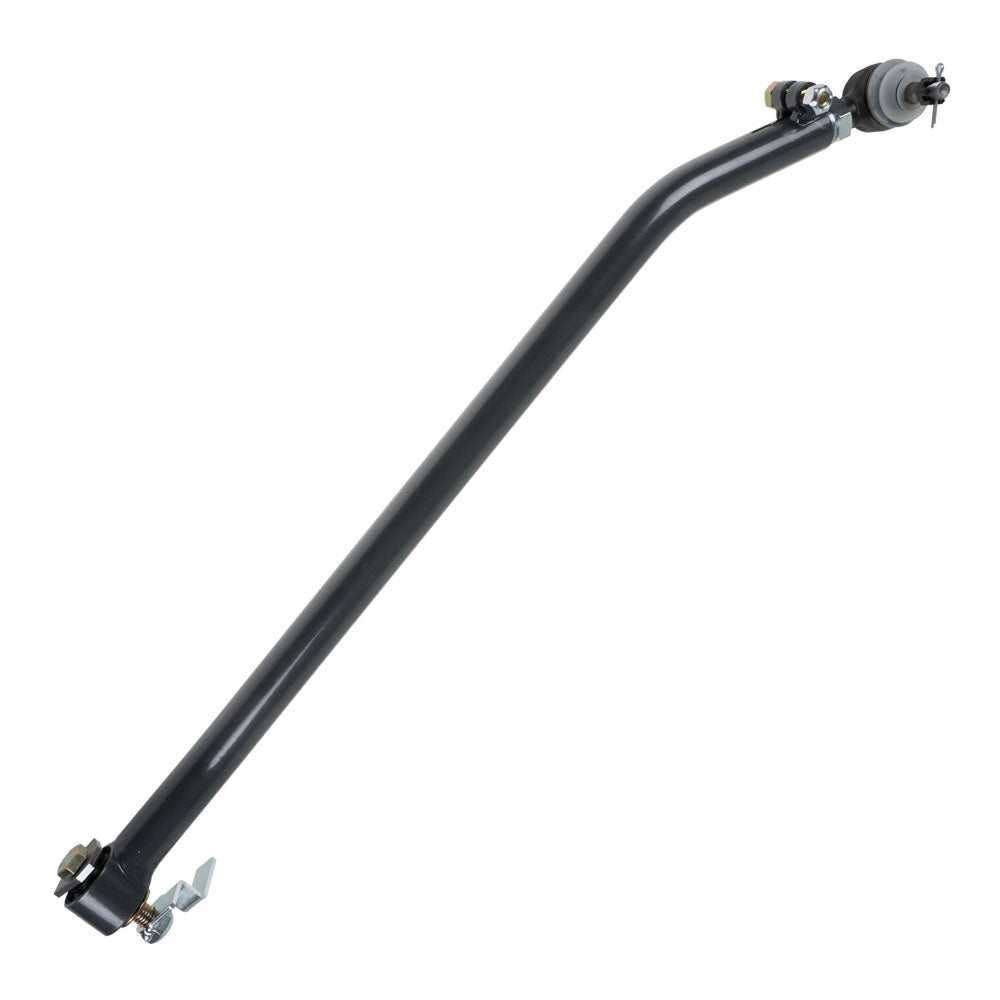

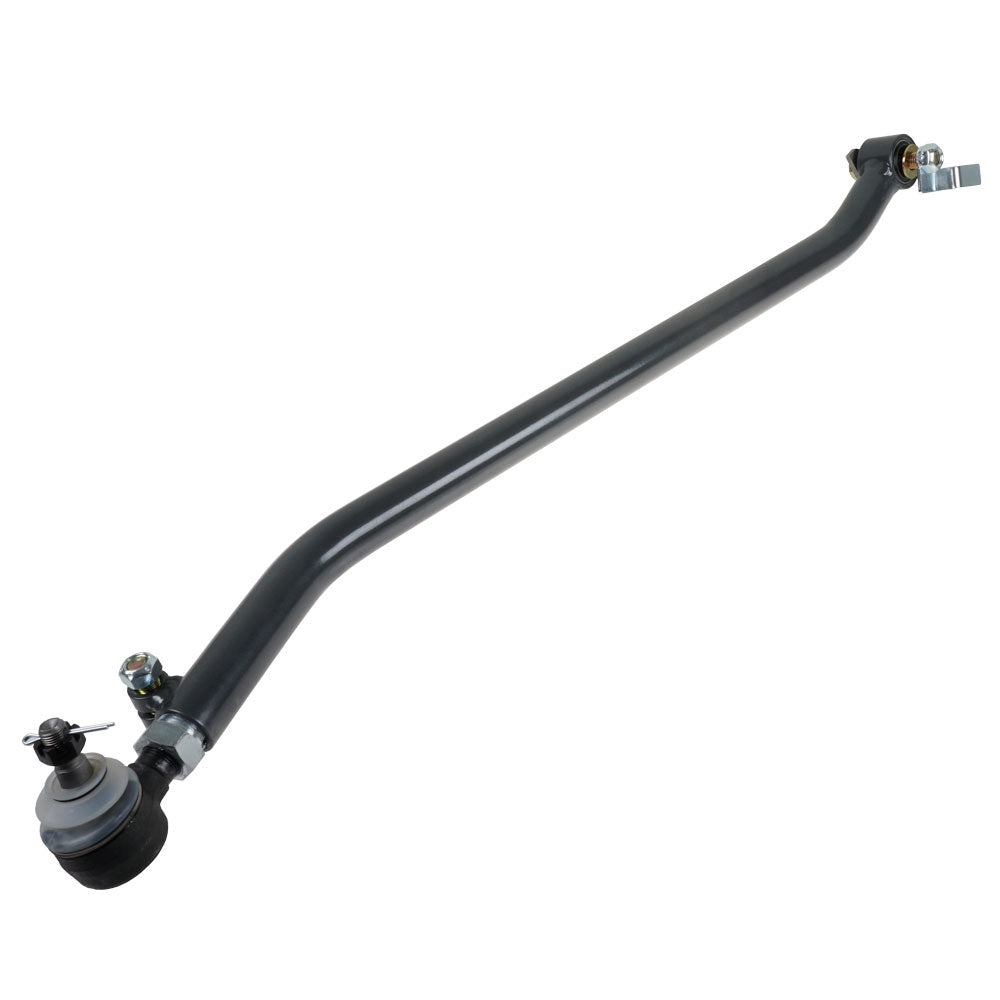

Jeep Front Adjustable Track Bar (SYN8155-01)

Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar. A heavy duty, adjustable, front track bar designed as a factory style replacement for TJ/LJ, XJ, ZJ, and MJ applications. It directly mounts to the factory tapered track bar mount on the frame but requires the axle mount to be drilled to 9/16 inch for added strength. A recommended weld-on gusset is included for the axle side mount for reinforcement. The track bar offers improved rigidity and allows centering of the front axle when running a suspension lift. Fits 0-4 inch lifts.

Fits:

• 1997-2006 Jeep Wrangler (TJ)
• 2004-2006 Jeep Wrangler (LJ)
• 1987-2001 Jeep Cherokee (XJ)
• 1993-1998 Jeep Grand Cherokee (ZJ)
• 1987-1992 Jeep Comanche (MJ)

Details:

• Synergy Jeep TJ/LJ, XJ, ZJ, MJ Adjustable Front Track Bar
• Bolts into factory tapered track bar bracket on the frame
• Requires axle mount to be drilled to 9/16 inch
• Optional welding (required if desired to install axle gusset)
• Made from 1-3/8 inch 1018 CR Solid Round Barstock

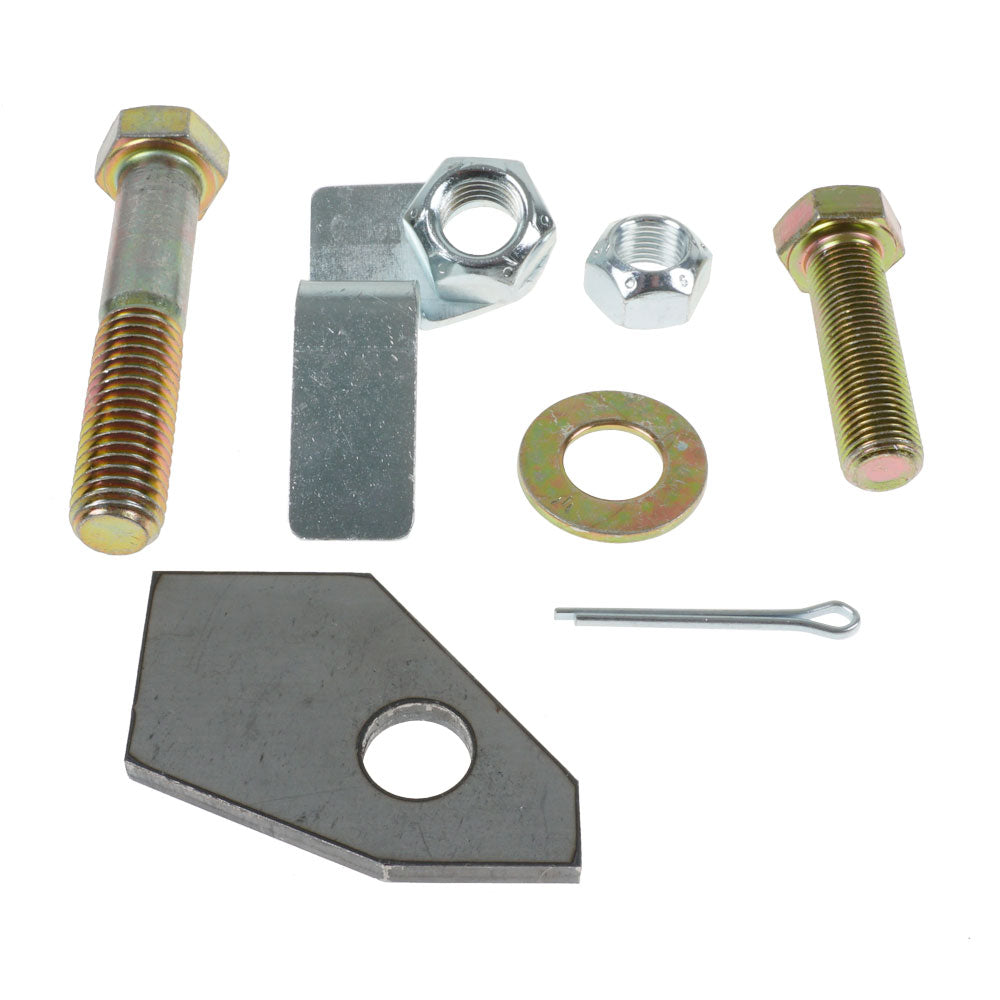

• Includes new Grade 8 mounting bolts and hardware
• Synergy double adjuster sleeve and pinch bolt assembly allows for adjustment of track bar length without removal from vehicle
• Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance
• Fits 0-4 inch Lifts

Notes:

• Factory style replacement track bar for 0-4 inch of lift
• 2.0 inch to 3.0 inch bump stop spacers will be required if the axle is pushed forward slightly from stock and an aftermarket diff cover is used.
• Approximate collapsed length = 31 inch
• Approximate extended length = 32.4 inch

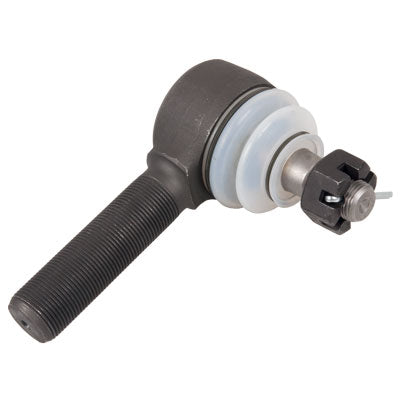

• Replacement bushing is 4323-01, replacement tie rod end is 4135-L
• Requires drilling. Sanding and welding optional
