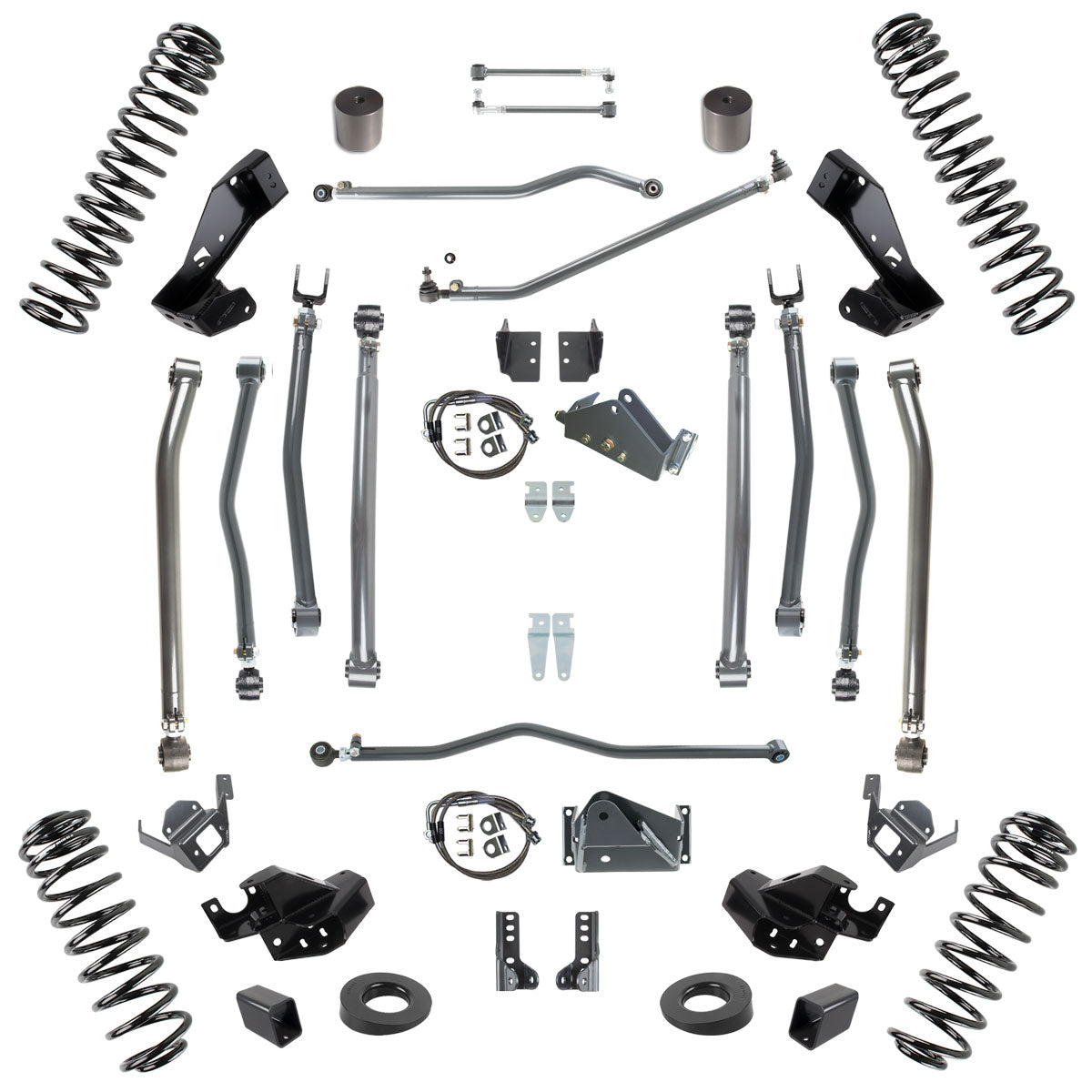

2007-2018 Wrangler JK 6.0 Inch Lift Stage 4 Suspension System 4 DR (SYN8044-60)

Synergy Jeep JK 6.0 Inch Lift Stage 4 Long Arm Suspension System is for those wanting maximum performance and capability without sacrificing ride quality. It carries over the quality components of the Stage 3 System, but improves upon them by swapping out the Standard Length Control Arms for Adjustable Long Arms and Long Arm Mounting Brackets. This is a 100 percent bolt on system with no welding required. This system will fit 37 inch tires with stock fenders or 40 inch tires with high fenders.

Fits:

07-18 JKU (4-Door Only)

Details:

• Stage 4 key features are front and rear track bar relocation brackets, flipped drag link, and all adjustable upper & lower long arms
• Front and rear bump stop extension kits
• Front sway bar links (Currie Anti-Rock required for the rear, see notes)
• Front and rear extended stainless steel braided brake lines
• Front and rear brake line relocation kits
• Synergy double adjuster sleeve and pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
• Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
• Lower control arms are manufactured from high quality crush resistant 2 inch X .250 inch Wall 1026 DOM tubing
• Features Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
• Front and rear lower shock mounts
• Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• 100 percent bolt on components assure an easy, trouble free installation with the use of basic hand tools
• Synergy suspension systems are a modular design so all components are available separately

Notes:

• Diesel models will require a set of spacers to be fabricated for installation
• Use Currie anti-rock rear sway bar kit with CE-9901RD2 14 inch end link rods if wanting to run a rear sway bar
• Additional bump stop spacing may be required for larger tires if air bump kits are not used
