2018-2020 Wrangler JK/JL 2" Lift Stage 1 Suspension System 4 Dr (8841-2000)
Description
The JLU Stage 1 Suspension System is a coil spring 2 inch lift built around 37 inch tires on Rubicon models and 35 inch tires on non-Rubicon models. Rather than spacing the factory springs, it replaces them with multi-rate progressive coils and then corrects the geometry that the lift upsets, with adjustable front lower control arms, a front adjustable track bar and a rear track bar relocation bracket.
The result is far more wheel travel and articulation than a spacer lift can offer, in a package that upgrades cleanly to Stage 2 later.
Part Number: 8841-2000
Features
- Multi-rate, progressively wound coil springs deliver 2 inches of lift over stock Rubicon ride height
- Adjustable front lower control arms to correct caster
- Front adjustable track bar and rear track bar relocation bracket to re-center both axles
- Front and rear adjustable bump stop spacer kits included
- Front sway bar link relocation brackets and rear sway bar drop brackets to restore sway bar geometry
- Parking brake cable relocation bracket included
- Greatly improves wheel travel and articulation over stock and over spacer lifts
- Fully upgradeable to the Stage 2 system

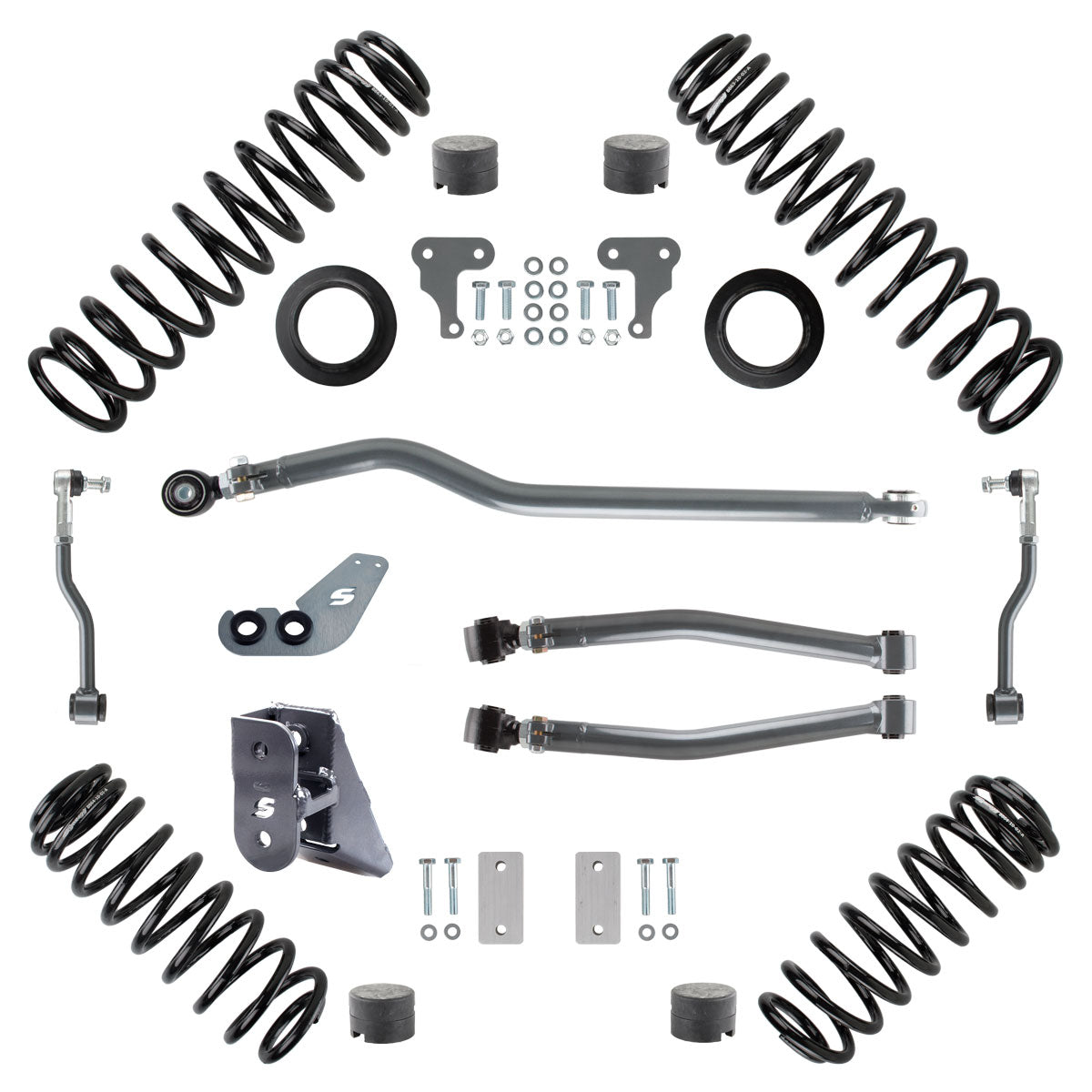

What's Included
- 1x Front Lift Springs, 4 DR 2.0" (8863-20)
- 1x Rear Lift Springs, 4 DR 2.0" (8864-20)
- 1x Front Bump Stop Spacer Kit, 2-4" (8057-10)
- 1x Rear Bump Stop Spacer Kit, 2.0" (8858-20)
- 1x Rear Sway Bar Links (8860-11)
- 1x Rear Sway Bar Drop Brackets (8886-02)
- 1x Front Sway Bar Link Relocation Brackets (8855-02)
- 1x Adjustable Front Lower Control Arms, Pair (8851-01)
- 1x HD Adjustable Front Track Bar (8875-01)
- 1x Rear Track Bar Relocation Bracket (8856-01)
- 1x Parking Brake Cable Relocation Bracket (8818-01)
Notes
- Lift height is 2 inches measured over stock Rubicon ride height. Non-Rubicon models will gain more

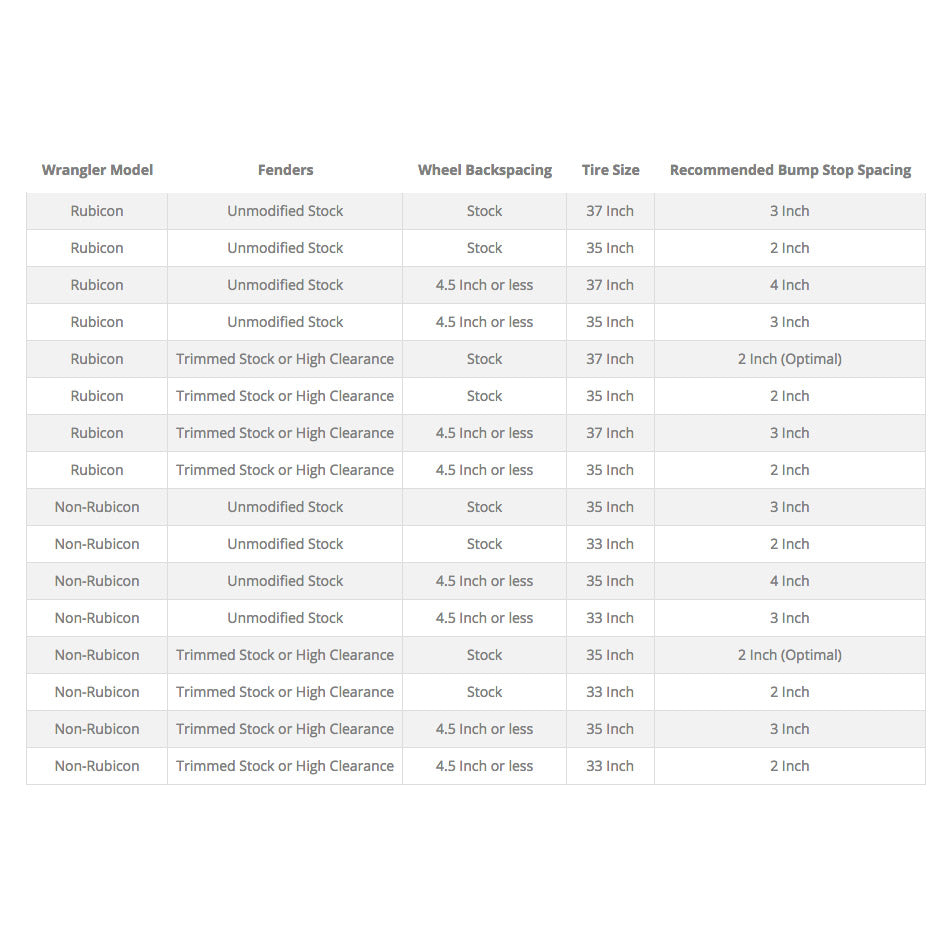

- Tire fitment is up to 37 inch on Rubicon models and up to 35 inch on non-Rubicon models
- Best ride quality and performance is achieved when the system is paired with coil spring matched Synergy tuned shocks, sold separately
Warranty
This product is covered by Synergy Manufacturing's Limited Lifetime Warranty against defects in materials and workmanship.
Vehicle Fitment
Vehicle Fitment
Part Specifications
-
Part No.8841-2000
-
VendorSynergy MFG
-
Shipping Weight112.85 lb
-
Placement
-
