2018-2020 Wrangler JK/JL 2" Lift Stage 2 Suspension System 2 Dr (8822-2000)

Synergy MFG

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

Regular price $5,608.80 CAD

Ships from

  • CanadaEst. 9 weeks · Secure yours today
    Special order
  • United States
    Out of stock
Description

The JL Stage 2 Suspension System builds on Stage 1 by adding the rest of the adjustable control arms and front sway bar links with quick disconnects. Every arm on the vehicle becomes adjustable, so caster, pinion angle and axle centering can all be dialled in rather than compromised, and the front bar can be dropped in seconds at the trailhead.

It is a coil spring 2 inch lift designed around 37 inch tires on Rubicon models and 35 inch tires on non-Rubicon models.

Part Number: 8822-2000

Features
  • Multi-rate, progressively wound coil springs deliver 2 inches of lift over stock Rubicon ride height
  • Full set of adjustable control arms to correct caster and pinion angle and to center both axles
  • Front sway bar links with quick disconnects for easy disconnection off road
  • Front adjustable track bar and rear track bar relocation bracket
  • Front and rear adjustable bump stop spacer kits included
  • High clearance rear lower control arms to protect the arms on the trail
  • Parking brake cable relocation bracket included
  • Greatly improves wheel travel and articulation over stock and over spacer lifts

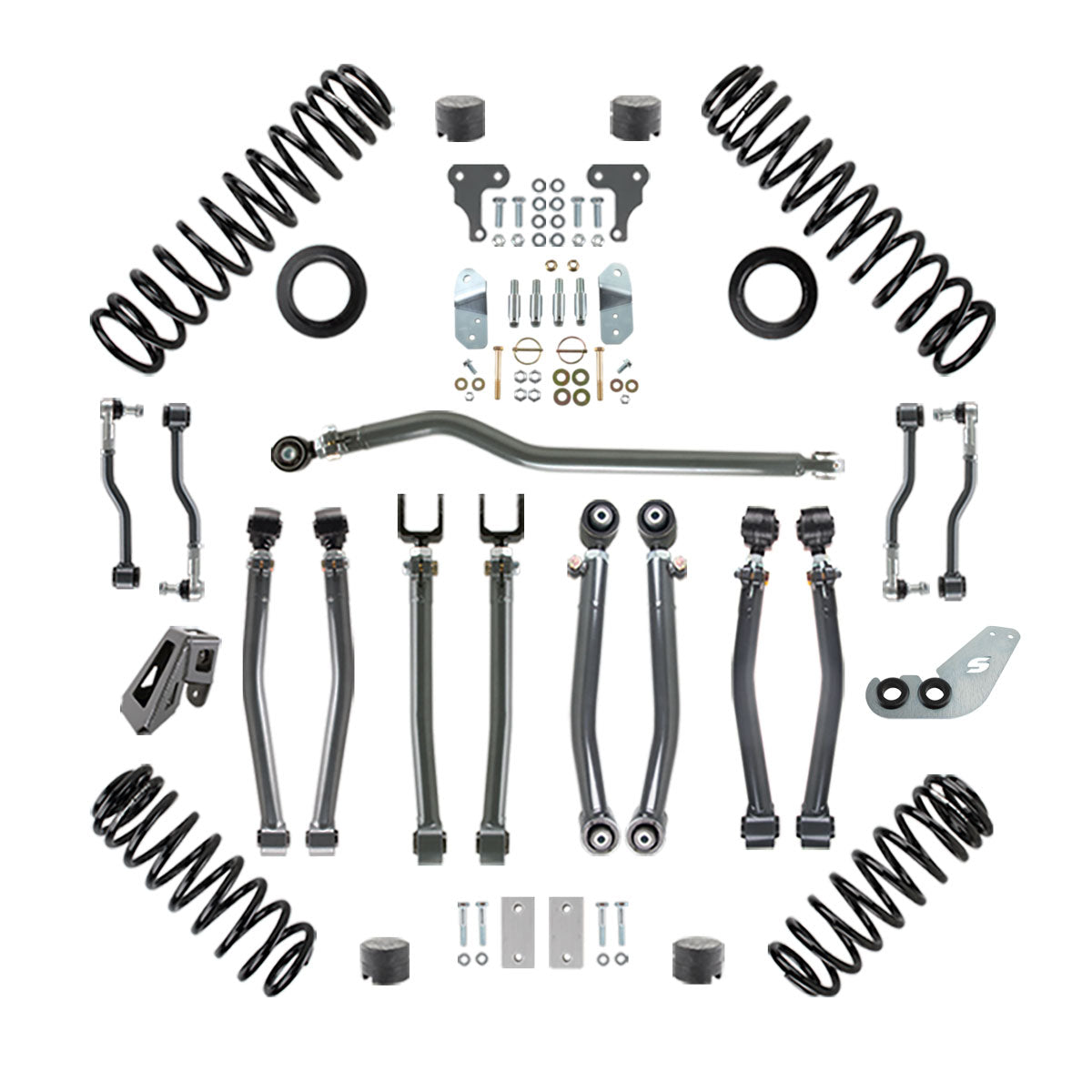

What's Included
  • 1x Front Lift Springs, 2 DR 2.0" (8863-10)
  • 1x Rear Lift Springs, 2 DR 2.0" (8864-10)
  • 1x Front Bump Stop Spacer Kit, 2-4" (8057-10)
  • 1x Rear Bump Stop Spacer Kit, 2.0" (8858-20)
  • 1x Front Sway Bar Links with Quick Disconnects (8859-11)
  • 1x Rear Sway Bar Links (8860-11)
  • 1x Rear Sway Bar Drop Brackets (8886-02)
  • 1x Front Sway Bar Link Relocation Brackets (8855-02)
  • 1x Adjustable Front Lower Control Arms, Pair (8851-01)
  • 1x Adjustable Front Upper Control Arms, Pair (8853-01)
  • 1x High Clearance Adjustable Rear Lower Control Arms, Pair (8052)
  • 1x Adjustable Rear Upper Control Arms, Pair (8854-01)
  • 1x HD Adjustable Front Track Bar (8875-01)
  • 1x Rear Track Bar Relocation Bracket (8856-11)
  • 1x Parking Brake Cable Relocation Bracket (8818-01)
Notes
  • Lift height is 2 inches measured over stock Rubicon ride height. Non-Rubicon models will gain more

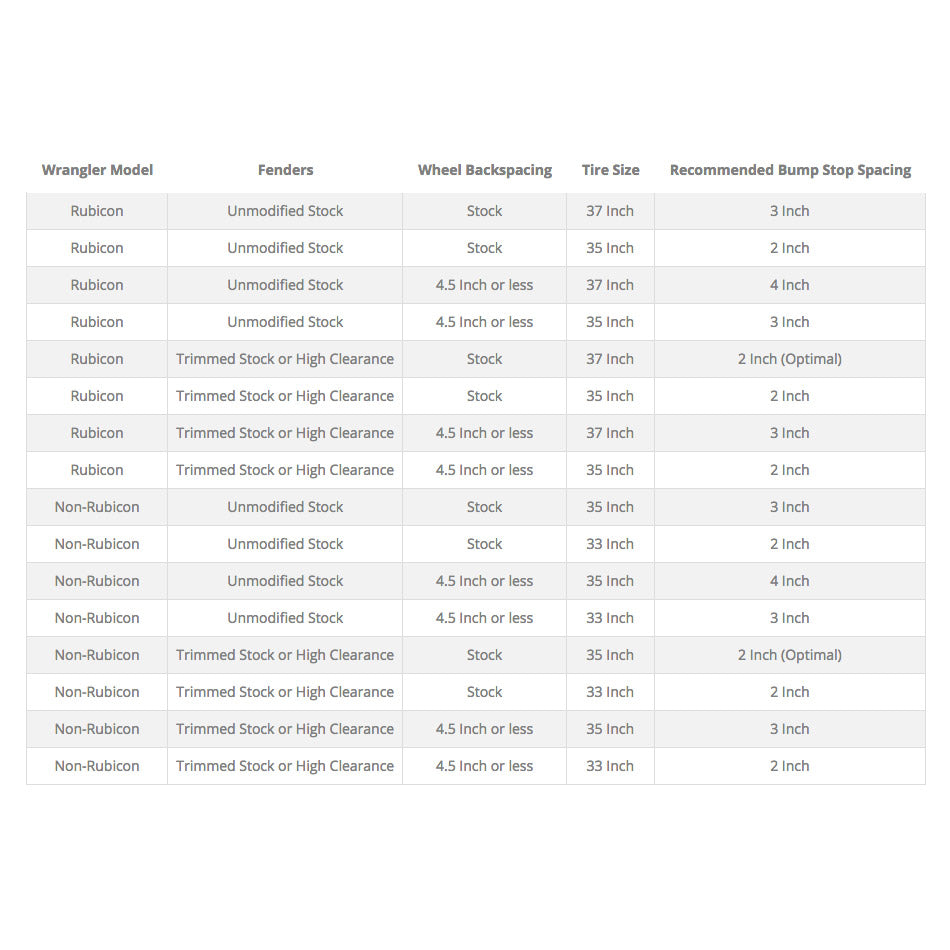

  • Tire fitment is up to 37 inch on Rubicon models and up to 35 inch on non-Rubicon models
  • Best ride quality and performance is achieved when the system is paired with coil spring matched Synergy tuned shocks, sold separately
Warranty

This product is covered by Synergy Manufacturing's Limited Lifetime Warranty against defects in materials and workmanship.

Vehicle Fitment

Part Specifications

  • Part No.
    8822-2000
  • Vendor
    Synergy MFG
  • Shipping Weight
    165.89 lb
  • Placement
    • Front
    • Rear
  • Prop 65
