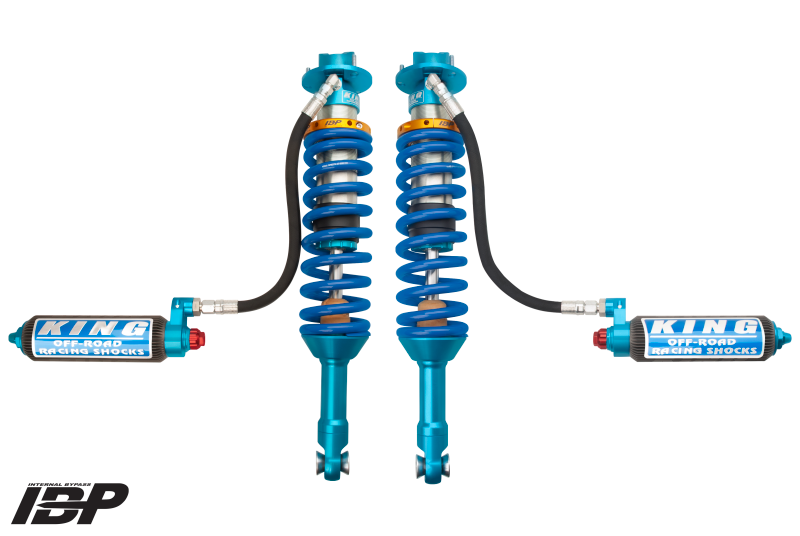

2017-2024 Superduty Front 3.0" Dia Remote Performance Fin Remote Coilover (KIN30001-403)

Engineered specifically for the Ford Raptor, this King OEM Performance Kit delivers next-level control, strength, and tunability in a true bolt-on package. Featuring King’s advanced 3.0 IBP Internal Bypass coilover technology, this system provides velocity-sensitive and position-sensitive damping along with an integrated hydraulic bump stop. The result is exceptional small bump compliance, increased high-speed stability, and superior bottom-out control whether you are pushing hard off road or cruising on pavement.

Features

• Large 3.0" diameter shock bodies increase fluid capacity for smoother, cooler running shocks
• 3.0 IBP internal bypass coilover design with velocity-sensitive and position-sensitive damping
• Integrated hydraulic bump stop for improved bottoming resistance
• Monotube design with full diameter piston and full-size valving
• Built from the same quality materials and precise tolerances as King Pure Race series shocks
• Large 3/4" top bearing and 1" lower bearing for superior strength
• 100% bolt-on installation with no cutting or welding required
• Factory tuned for optimal ride quality
• Extensive dynamometer lab testing and punishing real world testing to develop optimal damping curves and spring rates
• Fully rebuildable, serviceable, and tunable

Specs

• Compressed Length: 21.856 in
• Extended Length: 29.050 in
• Stroke: 7.194 in
• Gas Pressure: 200 PSI
• Drivetrain: 4WD
