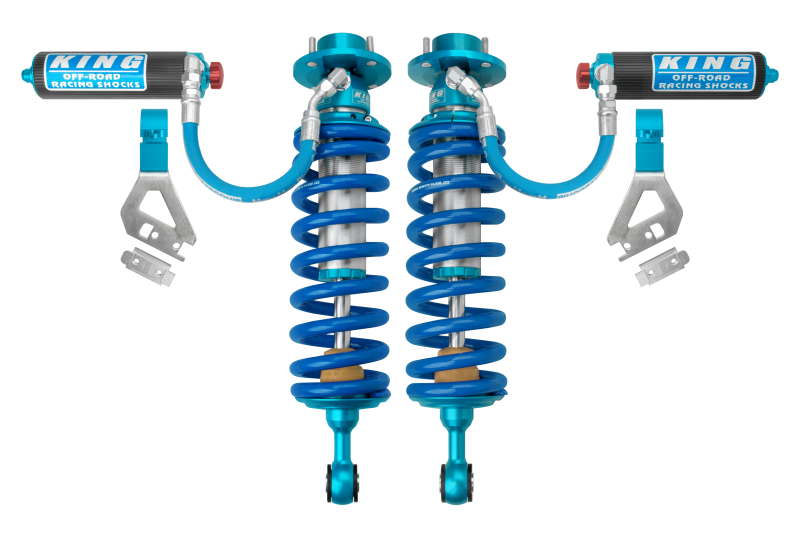

2022-2025 Tundra 2.5" Diameter Front Remote Reservoir Coilovers & Adjuster (KIN25001-396A)

Engineered by King for the 2022+ Toyota Tundra, this front coilover suspension system delivers precision-tuned damping and spring characteristics developed through rigorous field validation. The 2.5-inch diameter remote reservoir design provides superior heat dissipation and consistent performance across demanding driving conditions, while the integrated adjuster allows fine-tuning to match your specific setup requirements. Purpose-built to maximize both capability and comfort on and off-road.

Features

• 100% bolt-on performance.
• Increased wheel travel!
• Adjustable ride height.
• Large 2.5" shock bodies increase fluid capacity for smoother, cooler running shocks.
• Factory tuned for optimal ride quality.
• Extensive dynamometer lab testing and punishing real world testing to develop the optimal damping curves and spring rates for your Toyota.
• Built from the same quality materials and to the same precise tolerances as King’s top of the line Pure Race series shocks.
• Fully rebuildable, serviceable and tunable.
• External reservoirs dramatically increase fluid capacity, heat dissipation and provide sustained damping performance even under the most punishing conditions.
• All new threaded end cap design with new Schrader valve protective cap.
• Made from extruded 6061-T6 aluminum.
• New improved reservoir mounts. No more hose clamps!


Specifications

• COMP LENGTH (IN): 16.277
• DRIVETRAIN: 2WD
• DRIVETRAIN: 4WD
• EXT LENGTH (IN): 22.250
• GAS PRESSURE (PSI): 150.000
• STROKE (IN): 5.973
