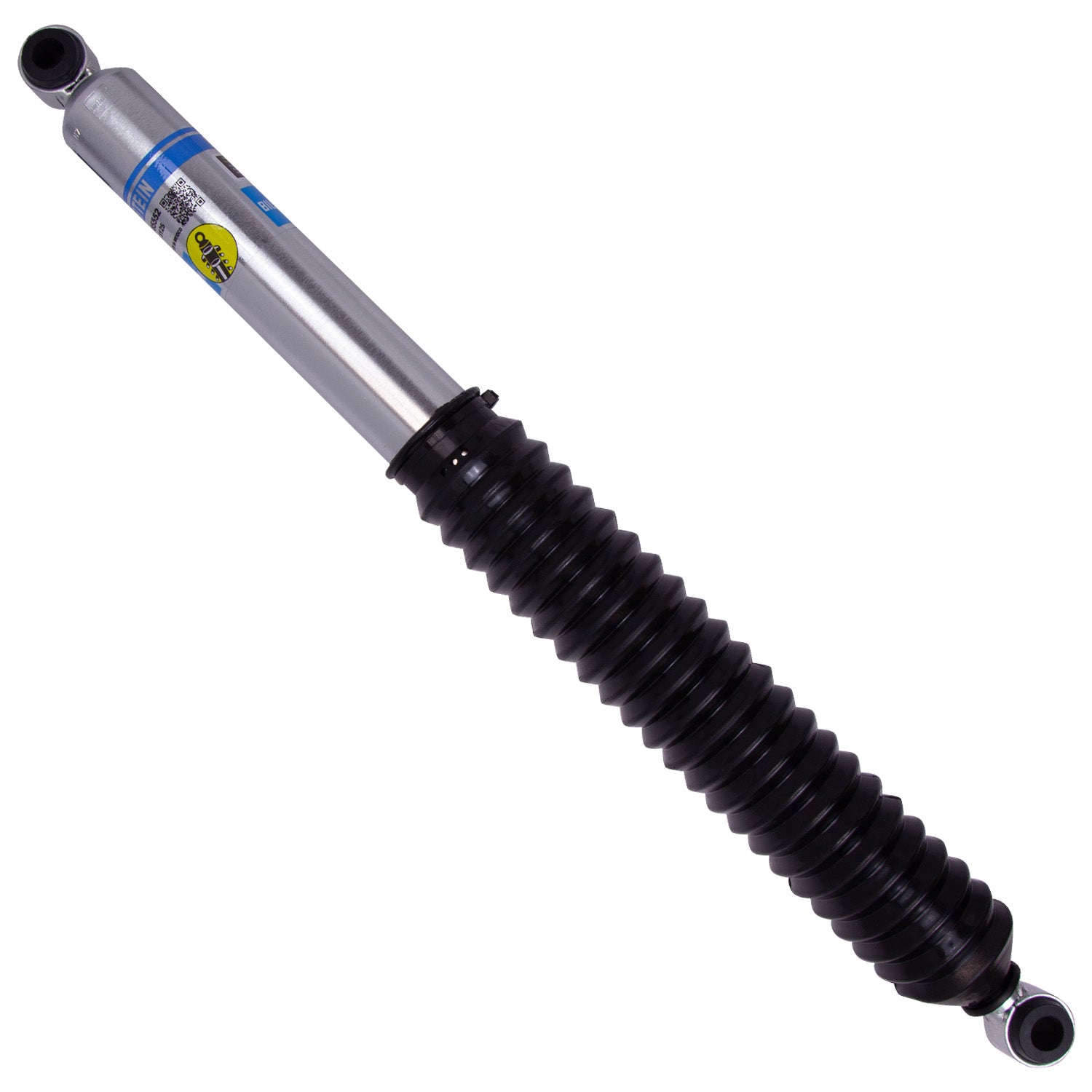

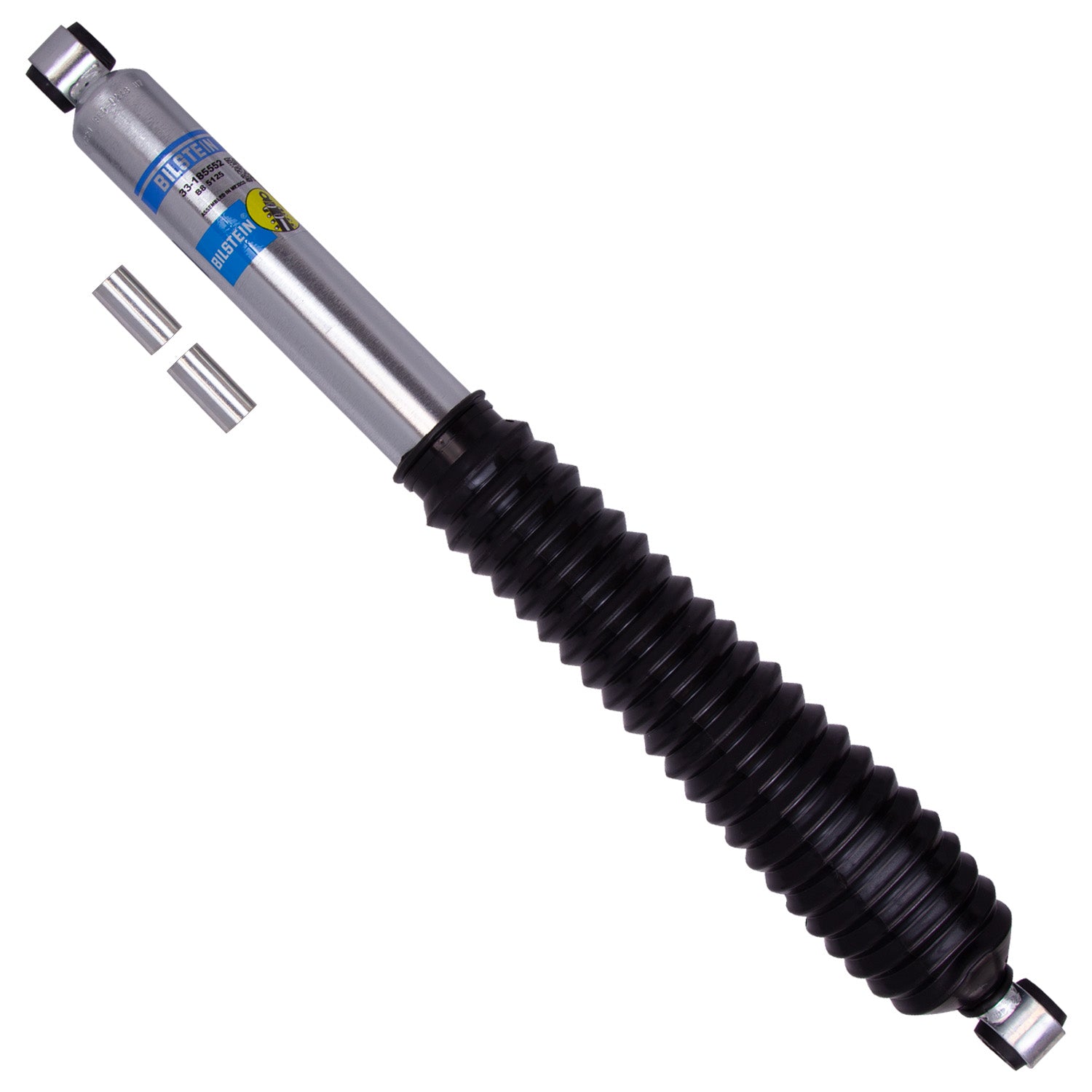

Universal B8 5125 Series 10" Travel Shock (33-185552)

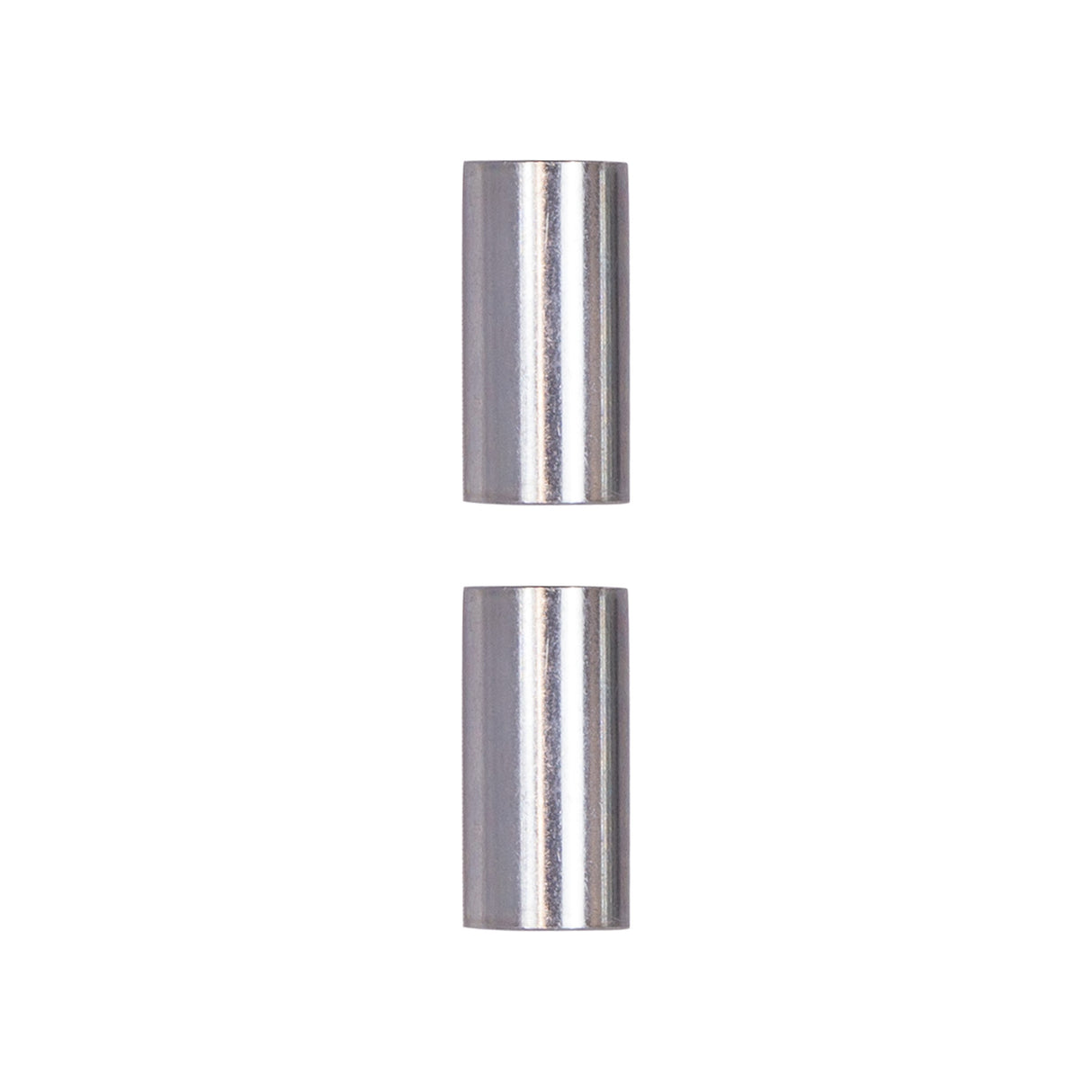

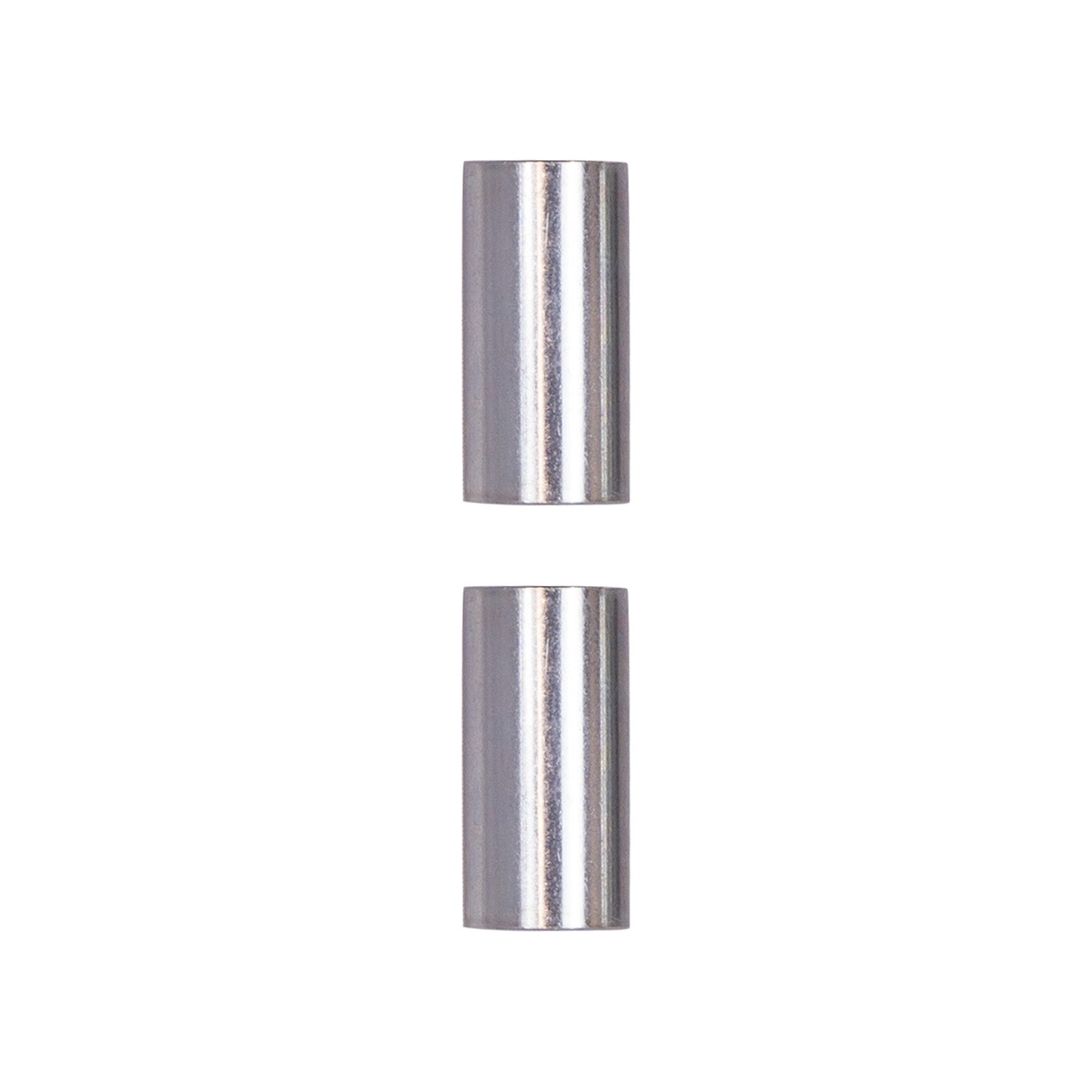

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

• Monotube gas pressure construction
• Self-Adjusting Deflecting Disc Valving
• High-Flow Piston Reduces harshness
• Independent Rebound & Compression Tuning
• Larger Working Piston Area for Exact Damping
• Superior Control for Larger Diameter Tires
• Available by travel lengths for custom applications

Specs

• Collapsed Length (in): 15.91
• Extended Length (in): 25.91
• Stroke/travel Length (in): 10.01
• Compression @0.52m/s: 620
• Rebound @0.52m/s: 2495
• Lower Mount Type: Eye 5/8in
• Upper Mount Type: Eye 5/8in
• Mount Type: Eye-to-Eye
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (od): 2.0 in.
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
