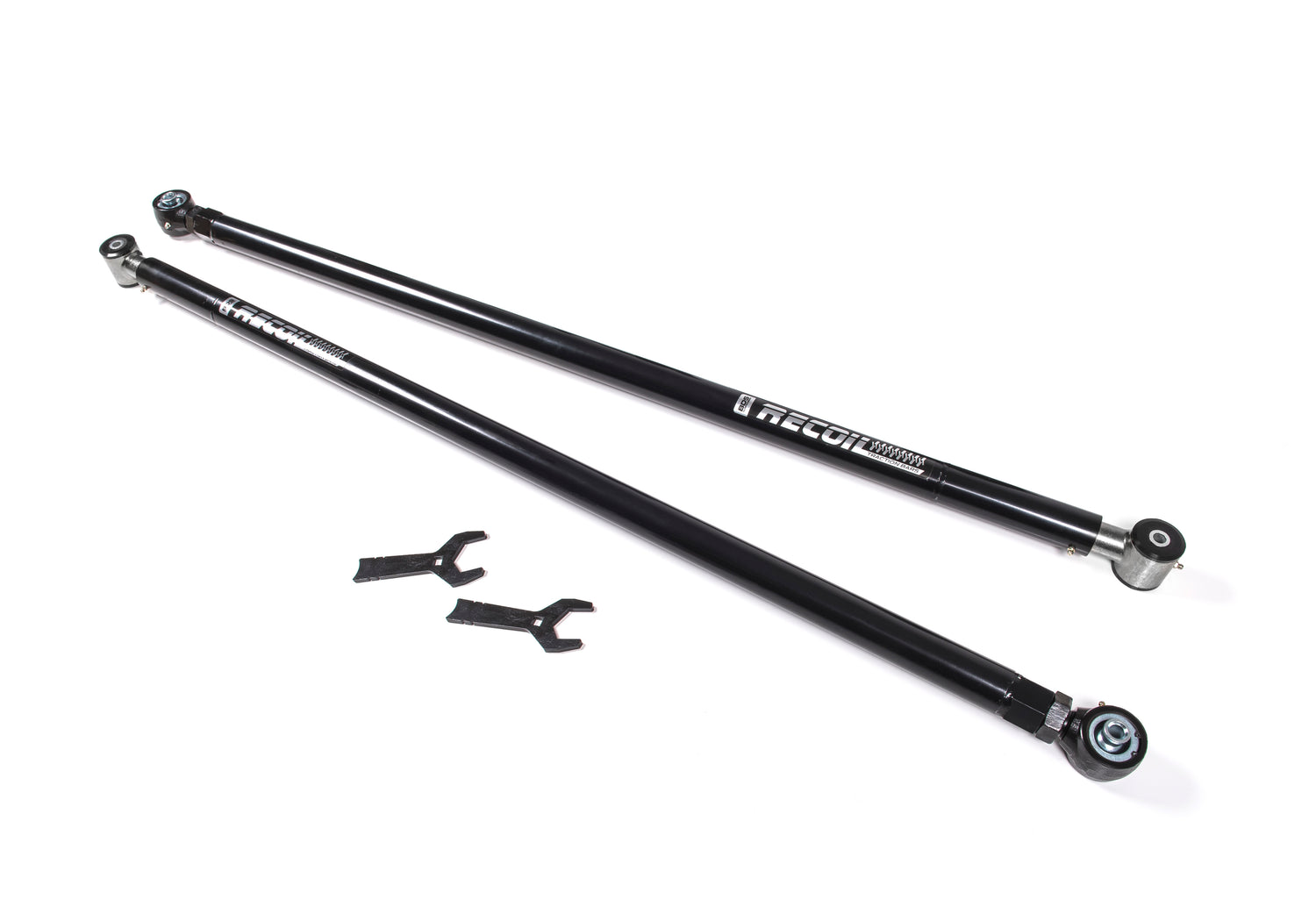

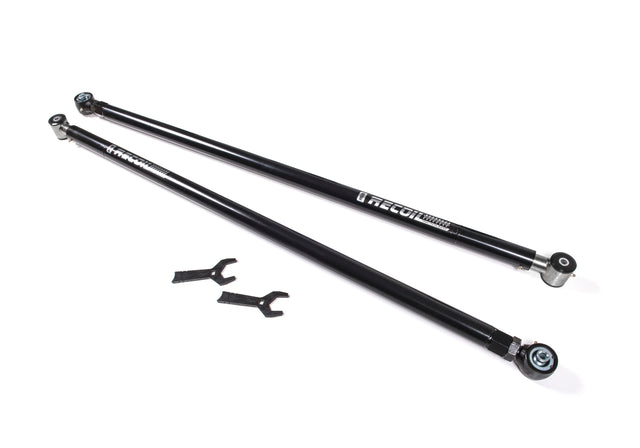

Universal Recoil Traction Bar Box Kit (BDS123409)

The BDS Recoil Traction Bar Box Kit controls axle wrap without limiting wheel travel or suspension articulation. The full floating design with adjustable internal compression springs keeps the bars bind-free, while heavy wall steel tubing, forged flex ends with up to 15 degrees of misalignment, and polyurethane frame-end bushings handle the abuse. It's built to work across a range of lift heights.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design that prevents binding throughout the full range of wheel travel and suspension articulation
• Heavy wall construction fabricated from 2-inch OD x 3/16-inch wall steel tubing
• Internal compression springs that can be loaded or unloaded while installed on the vehicle

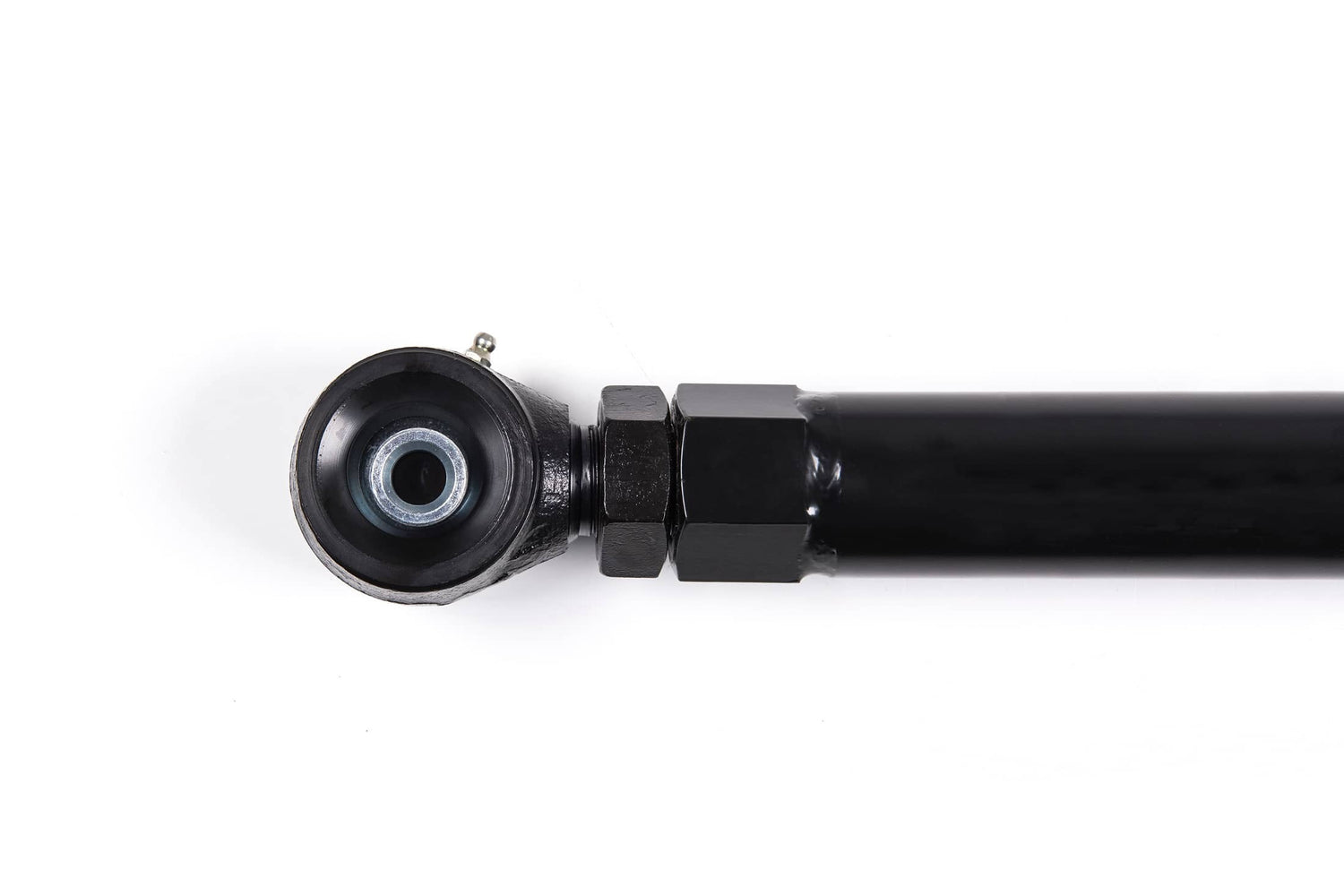

• Axle mount with ultra-durable large-forged flex end and jam nut
• Forged housing with large 1-1/4-inch x 12 threaded shank and single sided snap ring
• Flex ends capable of 15 degrees of misalignment in either direction
• Frame end uses durometer specific polyurethane bushing and free floating bar design with UHMW polyurethane bearings
• Compatible with a range of lift heights
