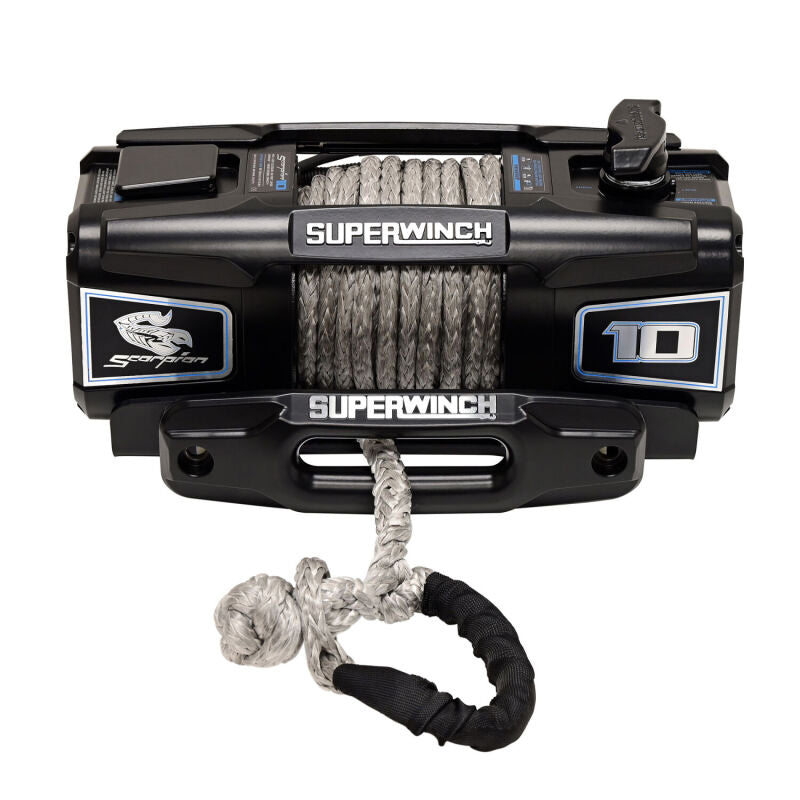

Universal Black Scorpion Series 10000lb 12V DC Winch w/ Synthetic Rope (SUW1155401)

Description

Meet the Scorpion 10000SR - Engineered for those who demand uncompromising strength and reliability when the job gets tough. This powerhouse winch packs a full 10,000 lbs. of pulling capacity into a lightweight, compact design that fits where traditional winches can't, reducing stress on your vehicle without sacrificing performance. Equipped with a high-torque permanent magnet motor and instant dynamic braking, the Scorpion 10,000 features a versatile, clockable 4-stage planetary gearbox with dual-range gearing to delivering unstoppable pulling power. Safety comes standard with a full load-holding brake, integrated overload shut-off, and a 3/8" synthetic rope with soft shackle to eliminate metal-to-metal hazards. A patented drum light ensures superior visibility in low-light recoveries, while low-amp efficiency maximizes performance from a single 12V battery. Designed with convenience in mind, it also includes an ergonomic free-spool clutch and both wired and wireless remotes for ultimate control. When the terrain gets demanding, the Scorpion 10,000 is built to strike-delivering unmatched capability and confidence every time.

Features

• Lightweight, Compact Design - Fits in tighter spaces than traditional 10,000 lb. winches while reducing stress on the vehicle's suspension.
• Permanent Magnet Motor with Dynamic Braking - Provides instant, no-load braking for enhanced safety.
• Internal Control Box - Improves radiator airflow and enhances visibility for camera-equipped vehicles.
• Full Load-Holding Automatic Brake - Securely holds loads up to 10,000 lbs.
• 4-Stage Planetary Gear System - Dual-range gearing: low gear (437:1) for maximum pulling power up to 10,000 lbs., high gear (156:1) for fast line speeds up to 3,500 lbs.
• Clockable Gearbox - Can be positioned in four orientations for flexible installation.
• Low Amp Draw - Delivers maximum winching performance using a single 12V battery.
• Ergonomic Pull-and-Turn Free-Spool Clutch - Enables quick, hassle-free range changes and smooth free-spool operation.
• Patented Drum Light - Ensures superior visibility in low-light conditions.
• 3/8 in. x 54 ft. Synthetic Rope with Integrated Soft Shackle - Eliminates all metal in the winch line for maximum safety.
• Overload Interrupter (OLI) - Automatically shuts off the winch at 10,000 lbs. to prevent potential vehicle damage.
• Multi-Function Wired Remote - Features an integrated, rechargeable flashlight for added convenience.
• Wireless Remote - Ergonomic design with MOLLE loop clip for easy access and storage.

Specifications

• Winch Type: Electric

• Rated Line Pull: 7,500 - 12,500 lbs
• Voltage: 12V DC
• Motor: 1.9 HP, 12V DC
• Gear System: 4-Stage Planetary
• Gear Ratio: High 156:1 / Low 437:1
• Brake System: 100% Full-Load Holding Automatic Mechanical Brake
• Rope Material: Synthetic
• Fairlead: Hawse
• Remote Type: Wired and Wireless
• IP Rating: IP68 Waterproof and Dustproof
• Mounting Bolt Pattern: 10.00in x 4.50in and 6.38in x 4.50in

• Color: Black

• Control Box: Relocatable Die-Cast Aluminum
• Task Lighting: Patented Drum Light
• Drum: Durable Fully Welded Steel Drum
• Winch Hook: Integrated Soft Shackle
