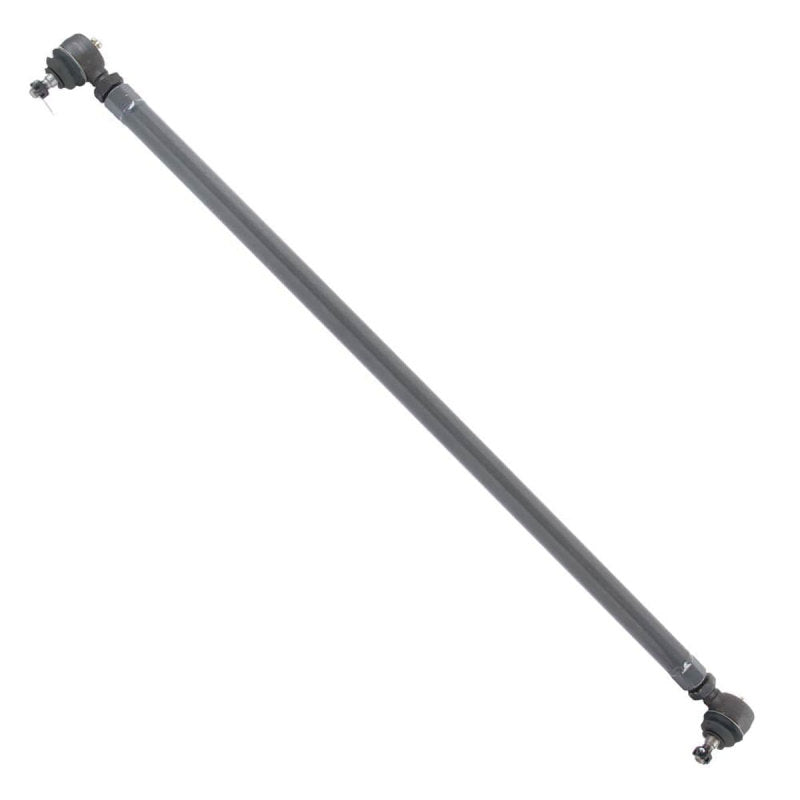

Jeep Heavy Duty Tie Rod (SYN8121-01)

Synergy Jeep TJ/LJ/XJ/ZJ, MJ Heavy Duty Tie Rod made from 1-3/8 inch Heat Treated Chromoly with metal on metal tie rod ends with LH and RH opposing threads to allow adjustment without removing it from vehicle.
Fits:

• 1997-2006 Jeep Wrangler TJ
• 2004-2006 Jeep Wrangler LJ
• 1987-2001 Jeep Cherokee XJ
• 1993-1998 Jeep Grand Cherokee ZJ
• 1987-1992 Jeep Comanche MJ

Details:

• Tie Rod is made from 1-3/8 inch 4130 Chromoly and Heat Treated for maximum strength
• Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4135-R
• Features LH and RH opposing threads to allow adjustment of tie rod length without removal from vehicle
• abrasion-resistant Powdercoat finish for maximum durability and corrosion resistance
• Designed to be used with 8121-02 Drag Link only

Wheel Back Spacing Requirements:

• 15 inch wheel - max 3.75 inch
• 16 inch wheel - max 4.00 inch
• 17 inch wheel - max 4.50 inch

Requirements:

• Minimum of 2 inch front bump stop spacers required
• Fits vehicles with 2-6 inch of lift
• 2-4 inch of Lift must use stock pitman arm
• 4.5 inch-6 inch of Lift must use drop pitman arm
