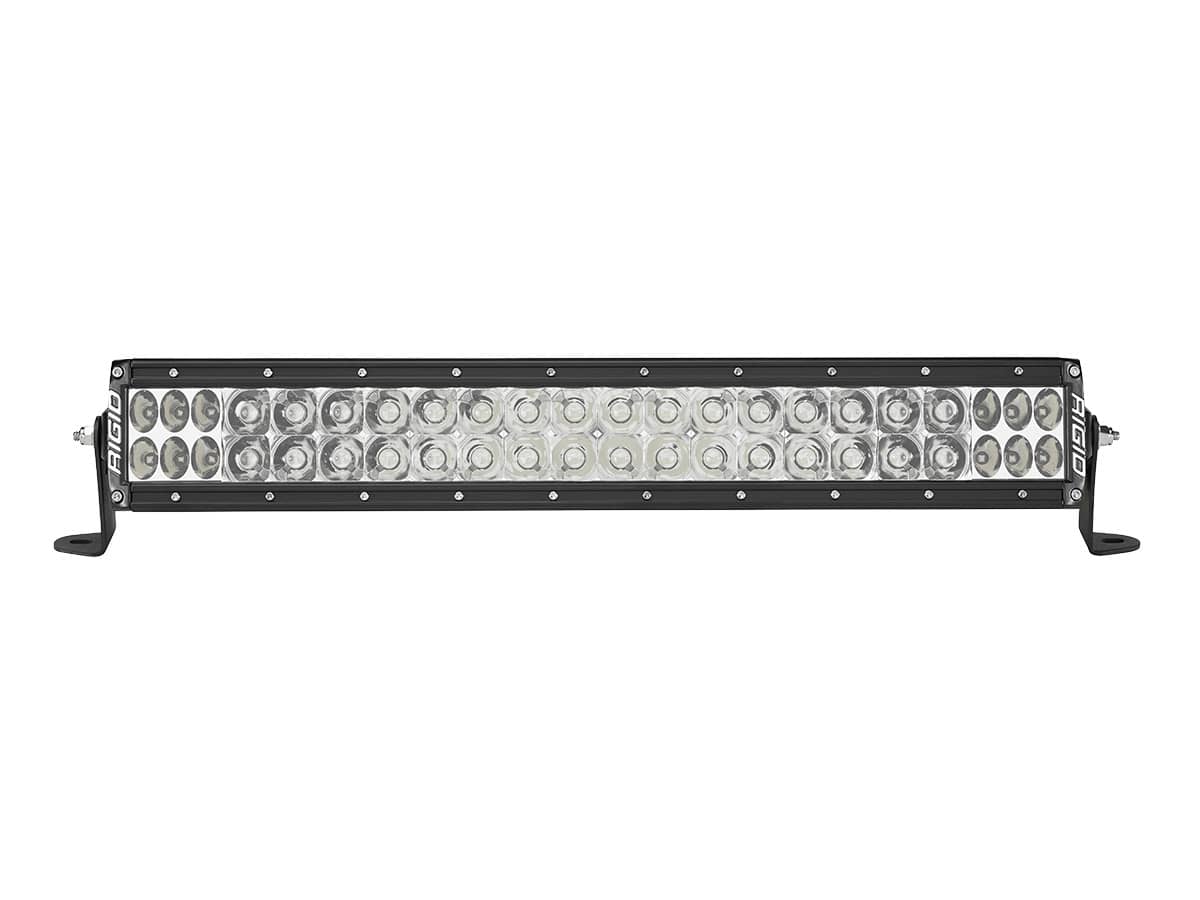

Universal 20" E-Series Pro Spot/Driving Beam Light Bar (122313)

The E-Series PRO 20-Inch Light Bar is the original double-row LED bar, now enhanced with PRO-level light output. It features a versatile Spot and Driving Combo beam pattern to efficiently maximize both long-distance forward illumination and balanced area lighting, making it one of the brightest and toughest bars on the market for a wide range of rugged applications.

Features

• Double-row LED design for high output and broad illumination
• Spot and driving combo beam pattern for both long-distance and wide-area visibility
• Durable UV-resistant powder coat finish for long-lasting protection
• High-grade aluminum housing with integrated thermal management to maintain performance
• Impact-resistant polycarbonate lens for rugged use
• Over/under voltage and reverse polarity protection for electrical safety
• IP68 rated against dust and water ingress for all-weather use
• Engineered for off-road, powersports, marine, automotive, and first responder applications
• Long service life with robust construction and extended LED lifespan

Includes

• Single Light Bar
• Black Powder-Coated L-Shape Brackets
• Harness and Switch w/ Relay
• Mounting Hardware

Specs

• Size: 20"
• Light Shape: BAR
• Mount Type: SURFACE MOUNT
• Beam Category: SPOT DRIVING COMBO
• Voltage Range: 9V - 36V
• Current Draw at 14V (a): 23.1
• Raw Lumens: 34848
• Watts: 319
• Lux @10m: 5480
• Beam Distance @ 1 LUX: 740
• Beam Distance @ .25 LUX: 1481
• Peak Beam Intensity(cd): 548042
• Horizontal Beam Angle: 22
• Vertical Beam Angle: 17
