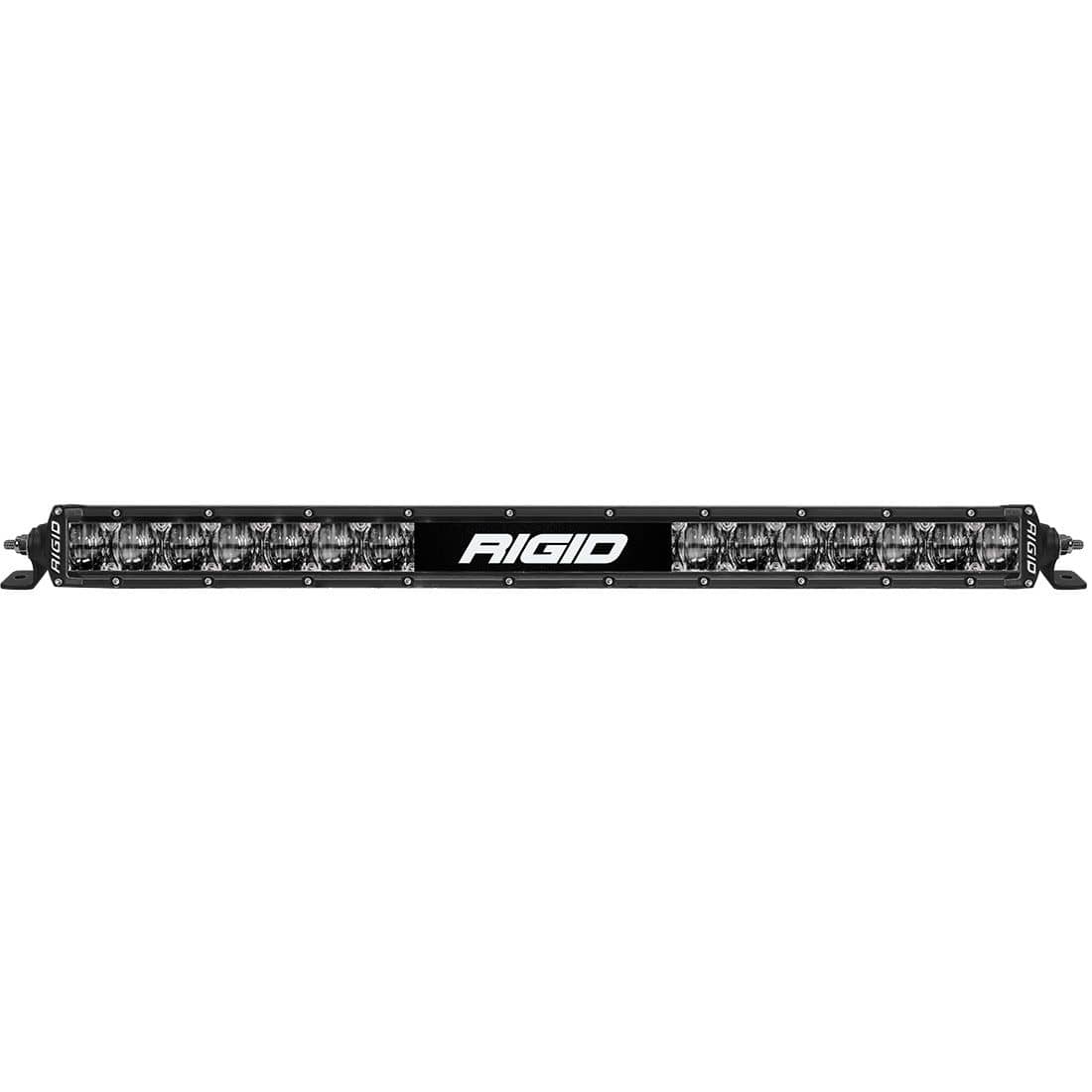

Universal 20" SR-Series Dual Function SAE Beam Light Bar w/ White Backlight (920413)

The SR-Series 20-Inch Dual Function Light Bar provides a street-legal solution for essential on-road visibility. It is designed with SAE-compliant optics to provide a safe, controlled beam pattern that prevents glare for oncoming drivers. This light bar features a sleek, low-profile design that measures under two inches tall, allowing for easy integration into tight spots and delivering high-output performance.

Features

• Low profile, high output, measures under 2" but throws serious light
• Hybrid or Specter optics in beam patterns built for your mission
• Fits where others can’t. Ideal for tight spots and clean installs
• Sleek design for seamless installations

Includes

• Single Light Bar
• Mounting Hardware
• Black Powder-Coated L-Shape Brackets
• Harness and Switch w/ Relay

Specs

• Size: 20"
• Light Shape: BAR
• Mount Type: SURFACE MOUNT
• Beam Category: DRIVING
• Voltage Range: 9V - 36V
• Current Draw at 14V (a): 6.8
• Raw Lumens: 8253
• Watts: 95
• Lux @10m: 342.6
• Beam Distance @ 1 LUX: 185.1
• Beam Distance @ .25 LUX: 370.2
• Peak Beam Intensity(cd): 34263
• Horizontal Beam Angle: 68.7
• Vertical Beam Angle: 10.2
