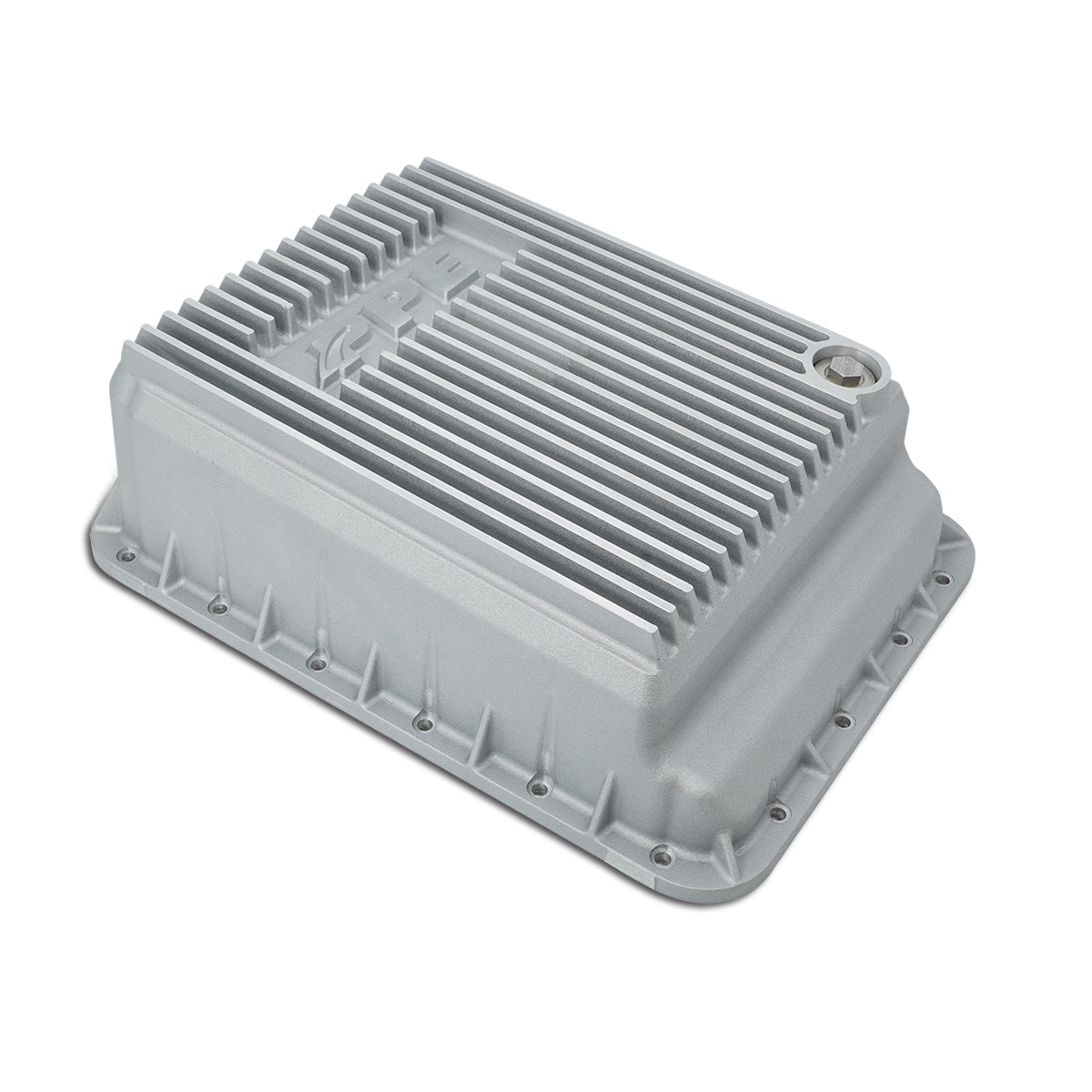

2013-2024 Ram HD 6.7L AS69RC Heavy-Duty Cast Aluminum Transmission Pan Raw (228053200)

Description

PPEs Heavy-Duty Transmission Pans hold extra fluid and are cast from high-strength A356.0-T6 aluminum for optimal heat dissipation. This pan features internal heat sinks and external cooling fins. These features combine to reduce transmission fluid temperatures. Cooler oil lubricates better which helps increase transmission service life and reduce service costs.

The PPE Heavy-Duty Aluminum Transmission Pan also features a high-powered Neodymium magnet-equipped drain plug to keep harmful ferrous metal contaminants out of the transmission internals.

Features

• Premium A356.0-T6 heat-treated cast aluminum alloy - a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases fluid capacity by 4 quarts for higher thermal capacity
• Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance

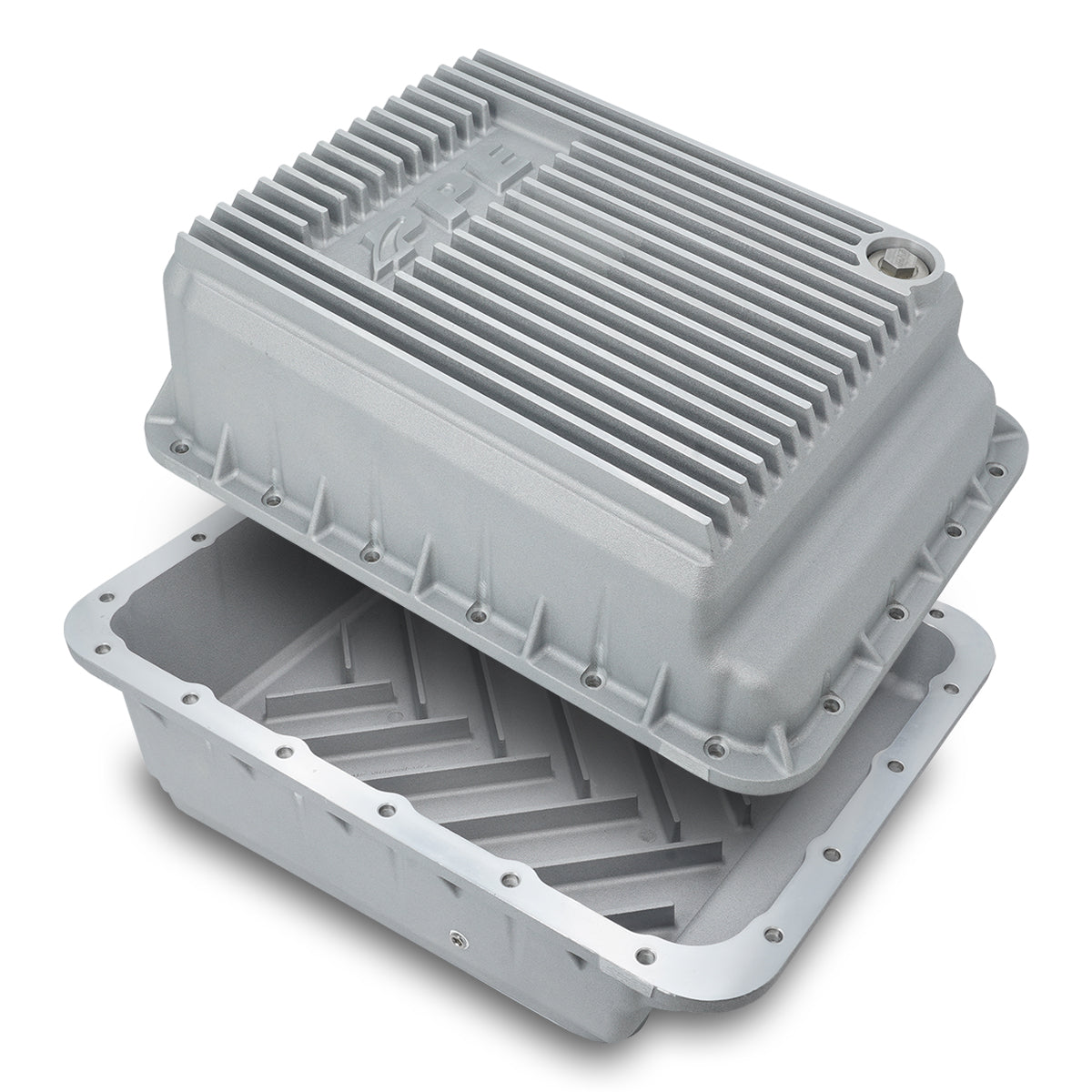

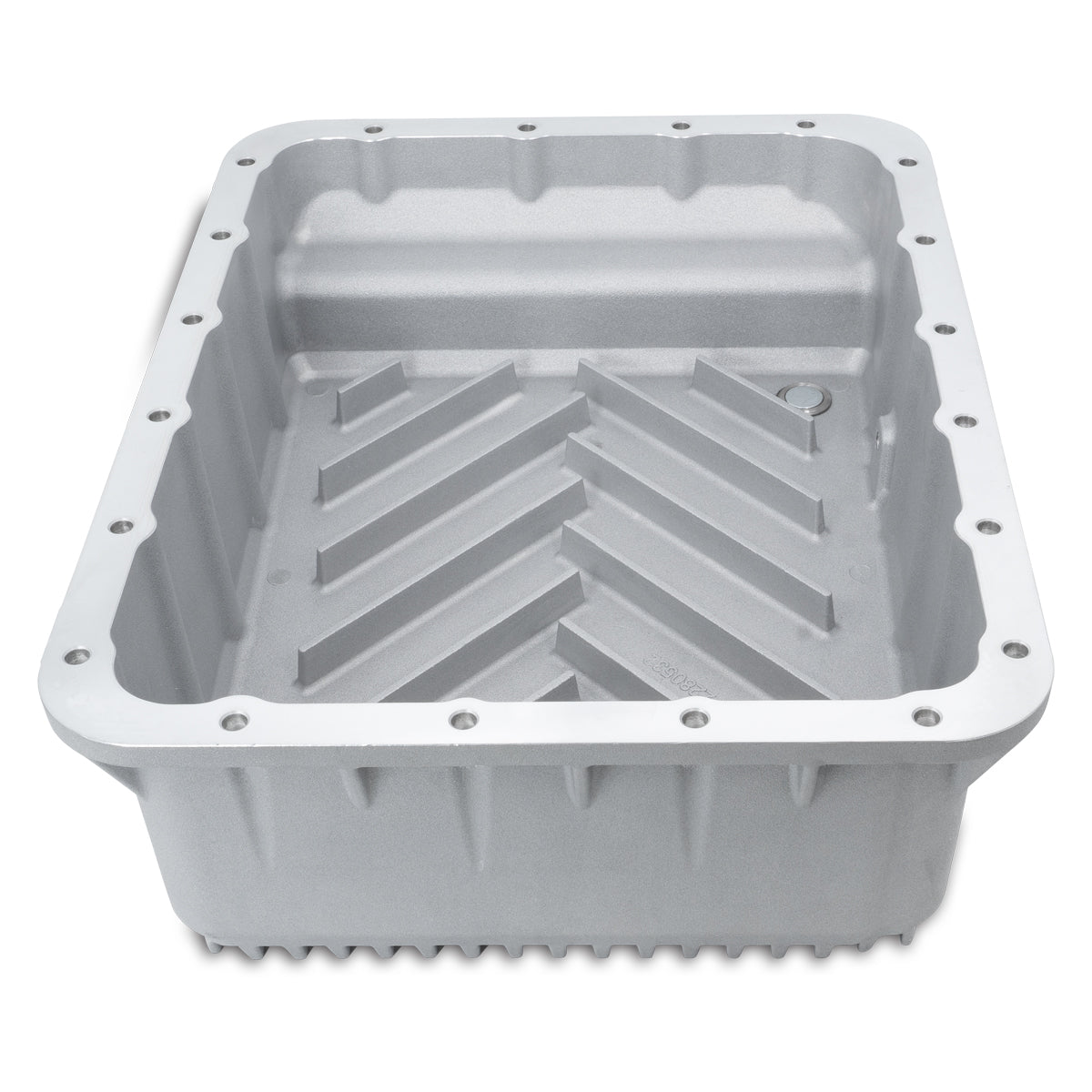

• Deep 3/4-inch internal baffles enhance heat absorption and minimize fluid sloshing
• External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
• Cast-in gussets for additional transmission housing flange support and increased rigidity
• 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug
• Compatible with OEM gasket and filter
