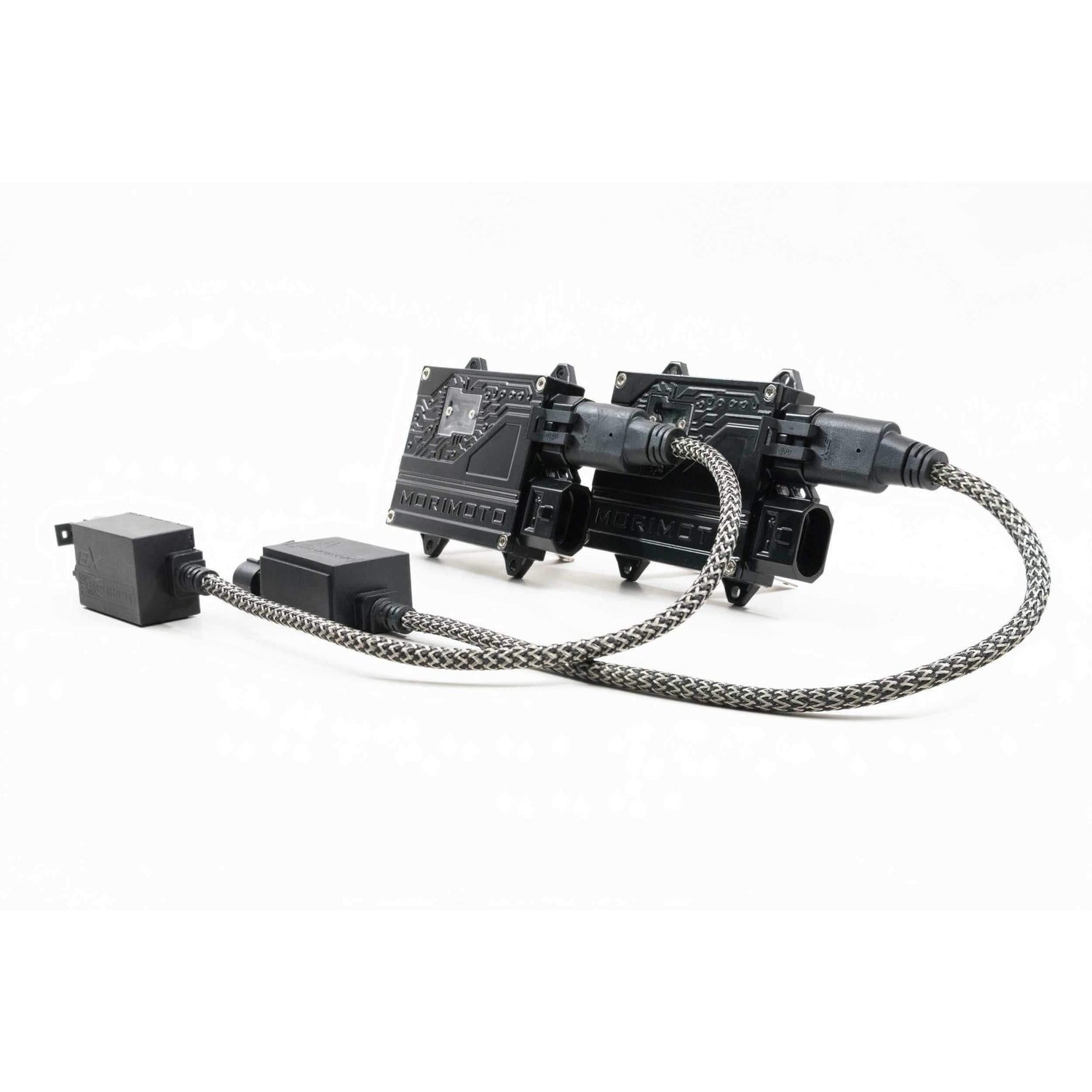

Universal 35w / AMP XB Ballast (BL11)

Name: Universal 35w / AMP XB Ballast (BL11)
Brand: Morimoto Lighting
SKU: BL11
Price: 111.20 CAD
Availability: InStock

(1)

Morimoto Lighting

$139.00 $111.20 CAD

Special Order - Average 2-4 Weeks for Fulfillment

Part Specs

Description

Designed to last for 2500 hours and we're confident they will. The powerful AS15-G4 IC chip recognizes outside system faults such as a loose high voltage connection, and after one misfire will cut power rather than potentially self-destruct. The software is proprietary to this ballast alone.

Power-hungry HID ballast replacements never work well with tricky CanBus systems, but the new Morimoto XB35 2.0 ballast consumes less than HALF of the start current than the previous model did. Far less than Denso, Mitsubishi, or FastBright which makes their ability to reach full intensity a more efficient process.

Part Number: BL11

Features

100% potted circuit board
Little to no EMF interference
Super seal 3 pin connector
Compact 18mm body
Easily change from AMP to D2S or vice-versa

Additional Info

OUTPUT WATTAGE	35W +/- 2%
OUTPUT CURRENT	85V AC
IGNITION VOLTAGE	23KV
INPUT VOLTAGE	9-18V DC
INPUT CURRENT	5A @ Startup
OPEN CIRCUIT	Protected (< 1s)
SHORT CIRCUIT	Protected (< 1s)
CLIMATE RANGE	-40C to +85C
RATED LIFESPAN	2500hours (5-7 years)

What's Included

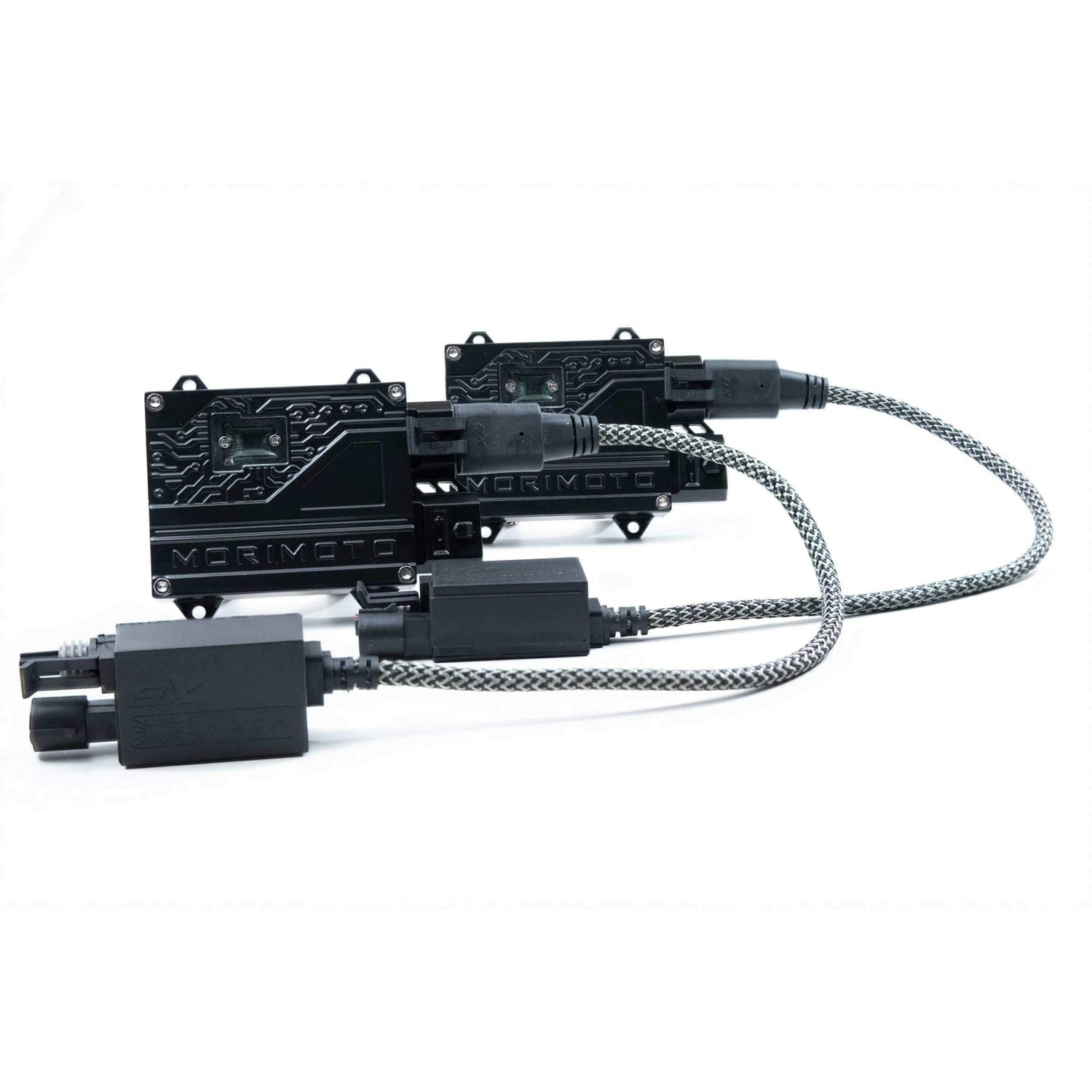

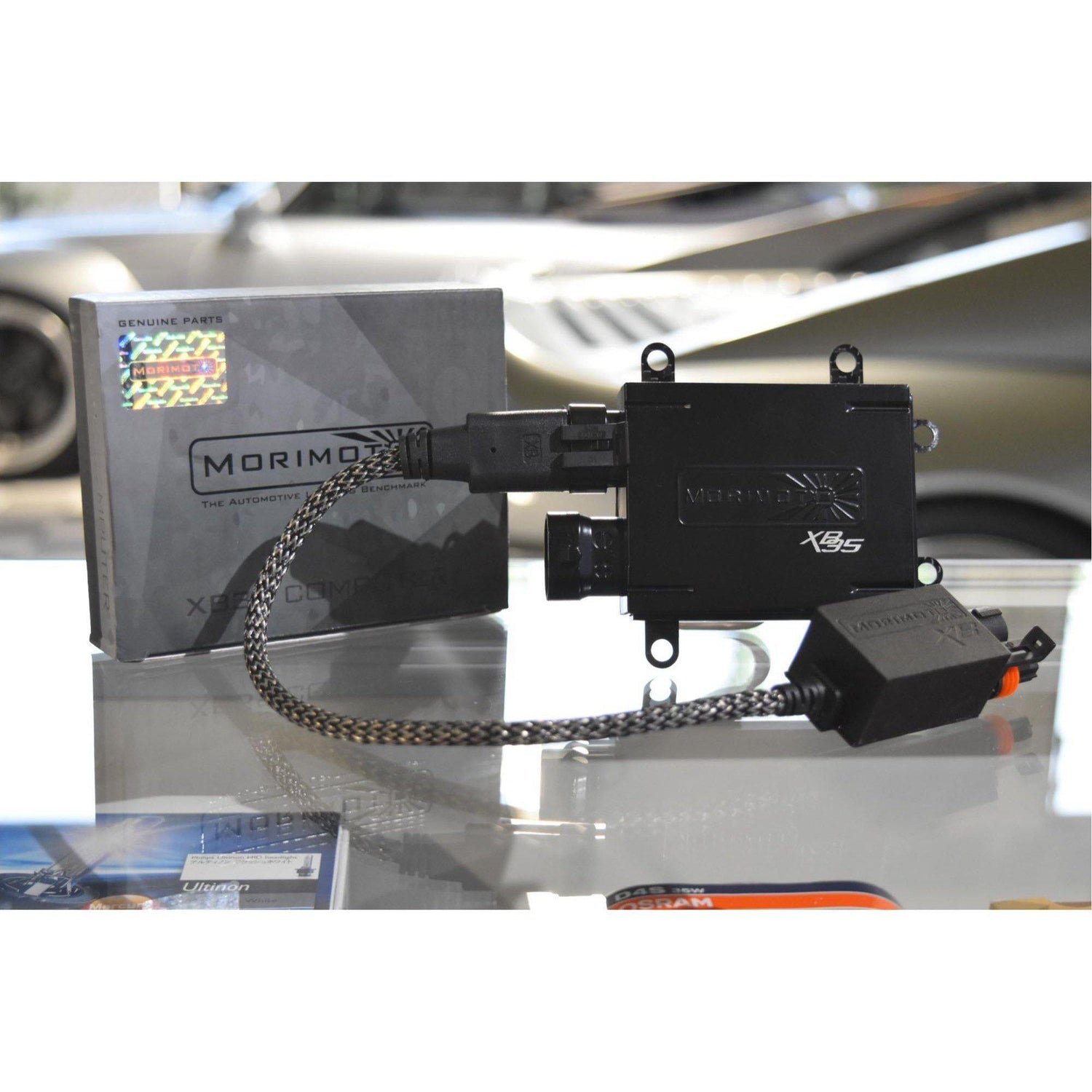

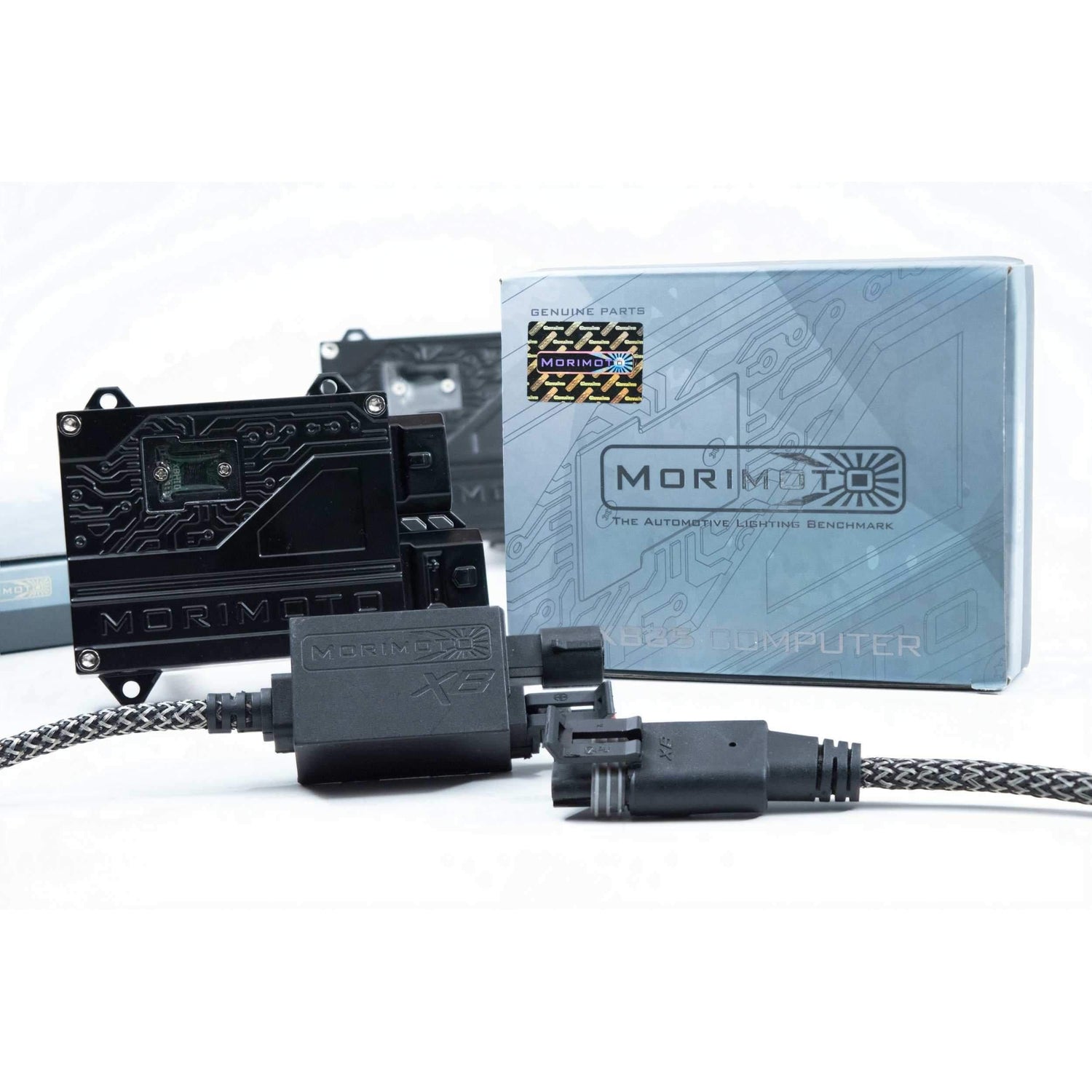

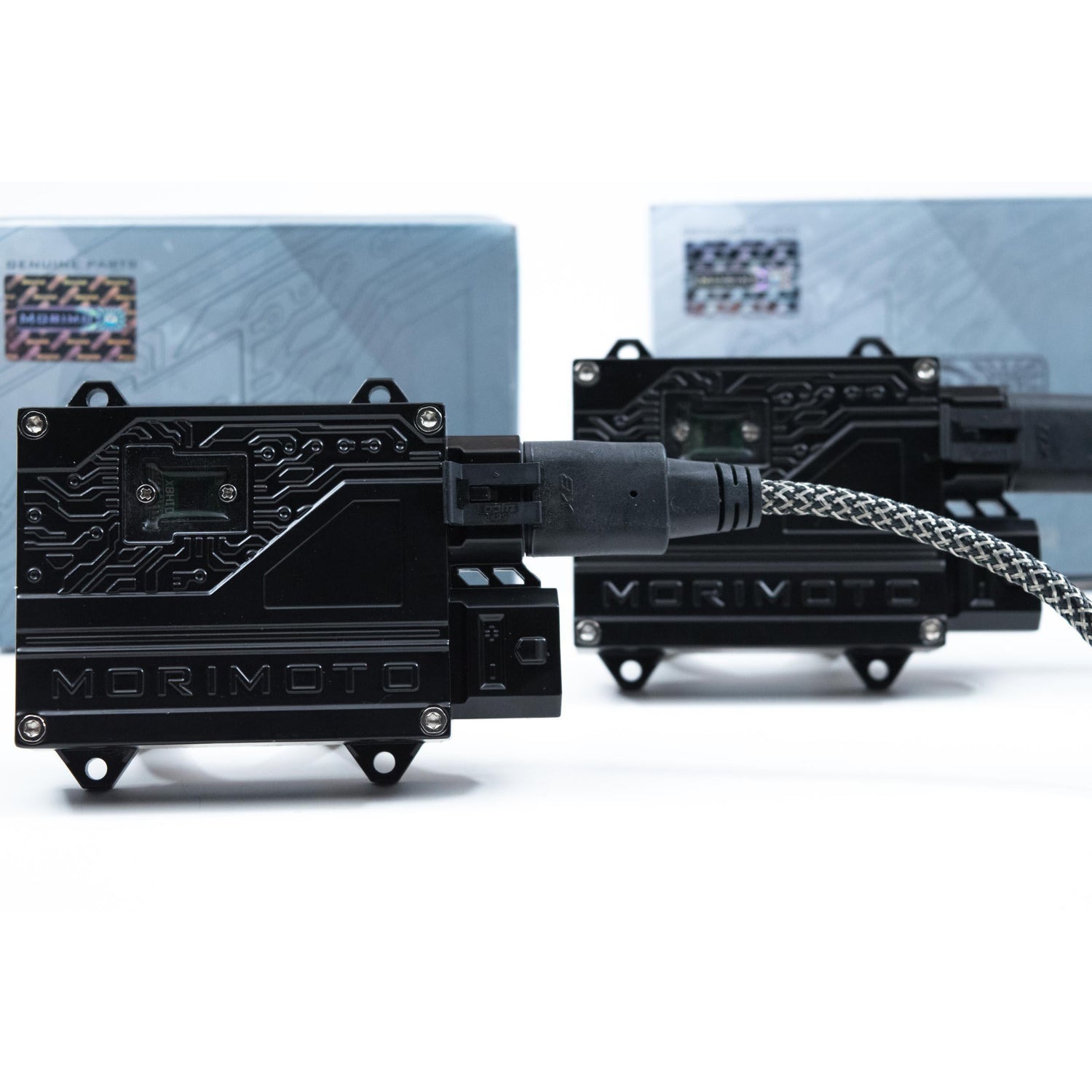

BALLASTS	1x Morimoto XB35 2.0 Computers

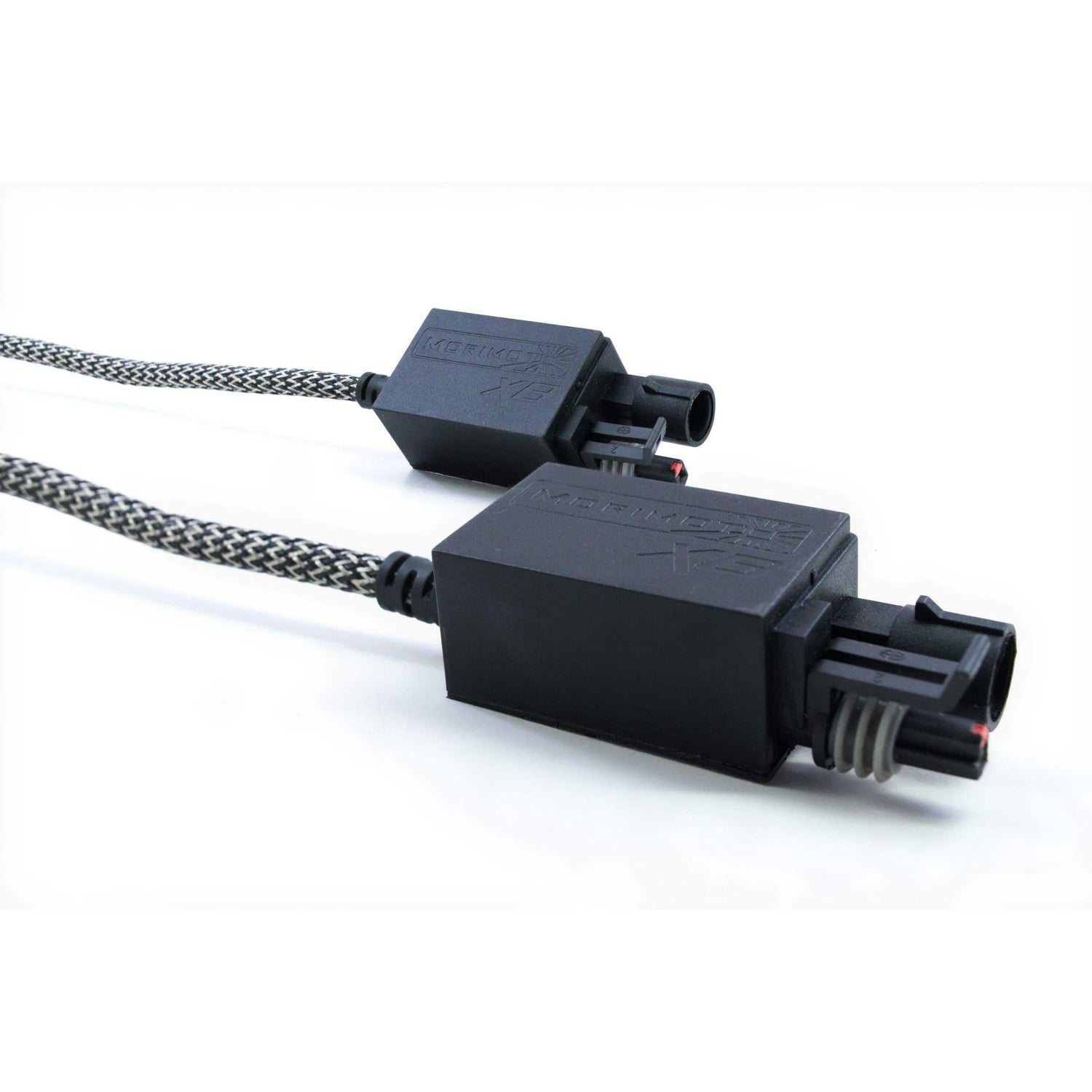

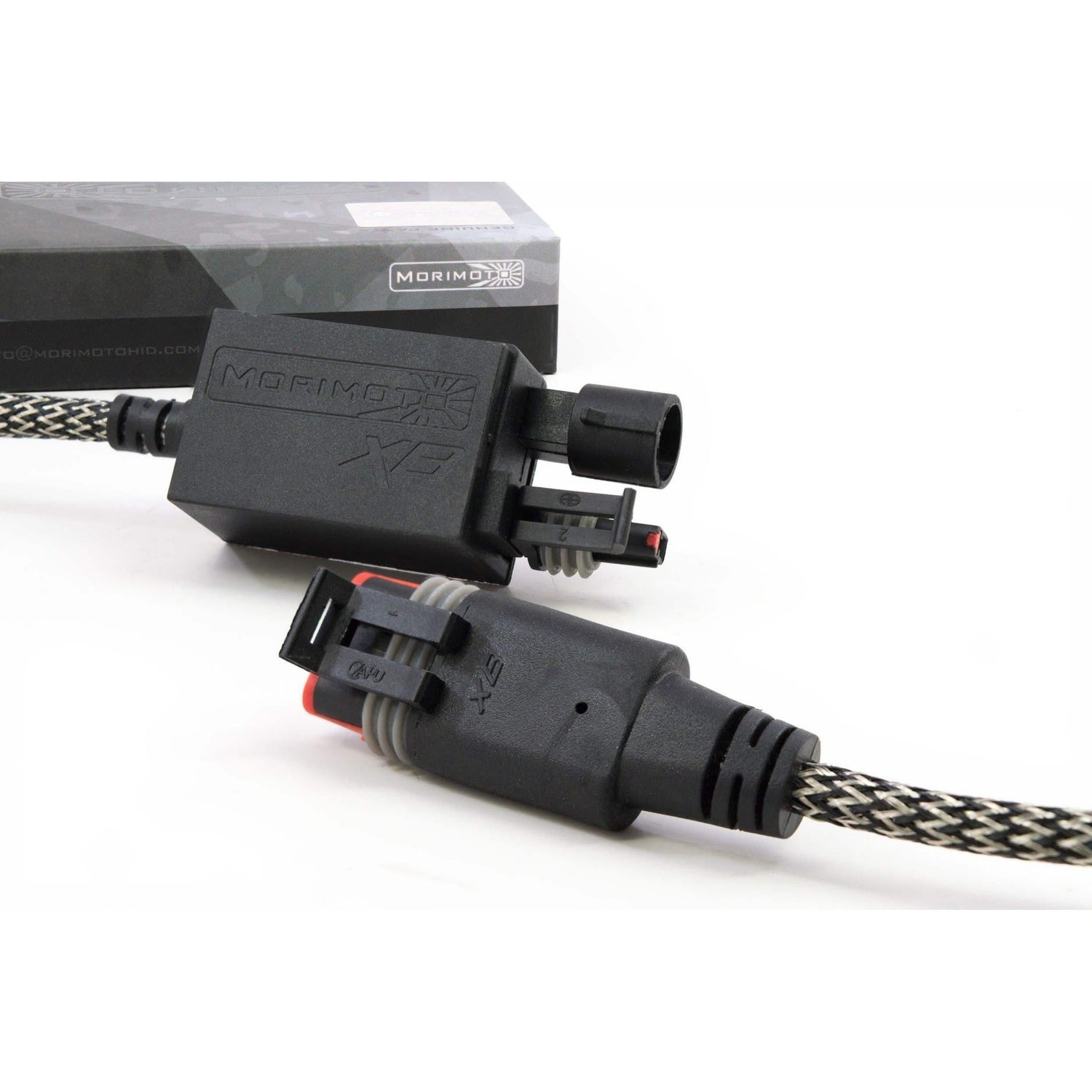

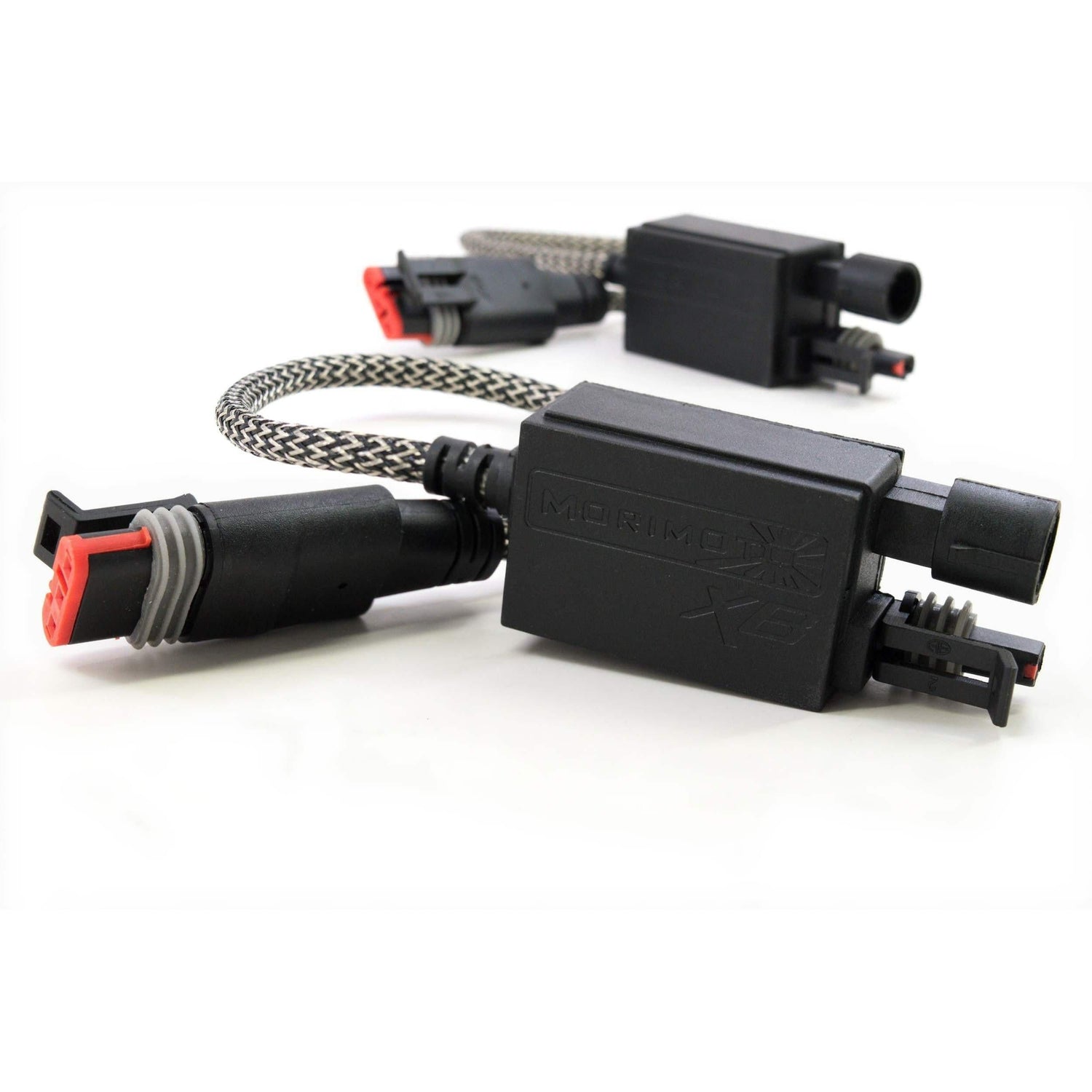

IGNITERS	1x Morimoto XB AMP
WARRANTY	2 Years

Vehicle Fitment

Part Specifications

Part No.

BL11
Cross Reference #

840203300794
Vendor

Morimoto Lighting
Shipping Weight

0.9987 lb
