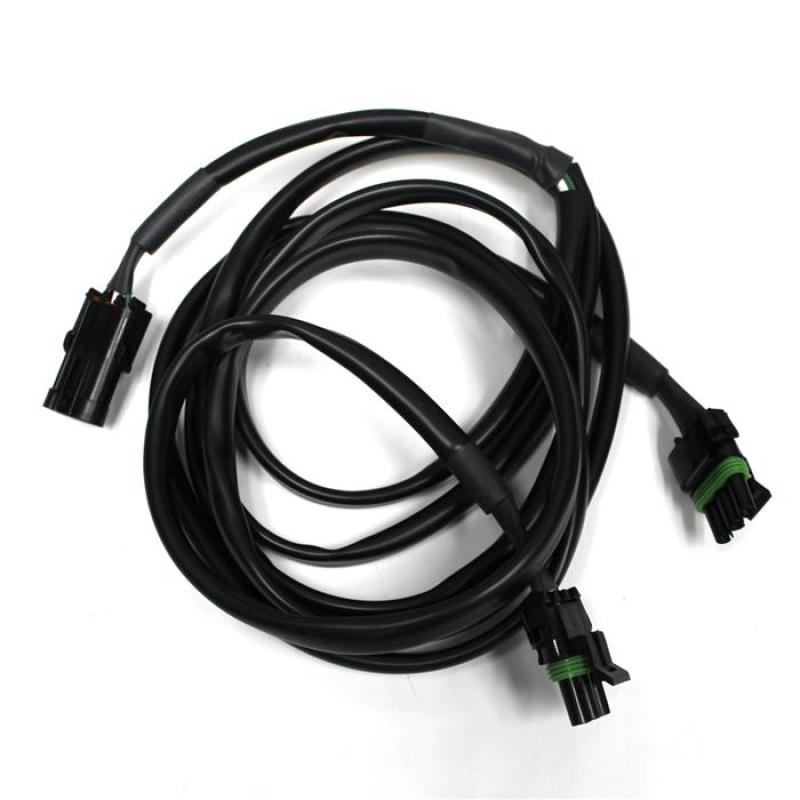

Universal 55" OnX S8 XL Pro Sport Wiring Harness Splitter (BAJ613609)

The OnX6/S8/XL 55-Inch Splitter is a professional-grade wiring extension designed to facilitate the simultaneous operation of two high-performance LED units. Specifically engineered for the OnX6, S8, and XL series, this harness provides an extended 55-inch reach to accommodate complex mounting locations on larger vehicle platforms. The assembly features prefabricated 3-pin weather-resistant connectors and utilizes MoistureBlock technology to prevent water and contaminants from traveling through the wire jacket into the light housing, ensuring long-term electrical integrity in extreme environments.

Features

• Dual-output architecture allows a single primary harness to power two light bars or pods.
• Extended 55-inch length provides flexibility for wide-set or roof-mounted lighting arrays.
• Integrated MoistureBlock technology protects internal optics and electronics from capillary water intrusion.
• Heavy-duty construction optimized for high-amperage draw and consistent power delivery.
• Plug-and-play 3-pin connectors for secure, tool-less integration with compatible light series.

Specifications

• Product Type: 2-Light Splitter Wiring Harness
• Harness Length: 55 Inches
• Terminal Connectors: 2 Three-Pin Connections
• Terminal Type: Splice Connectors
• Durability Standards: IP69K (Submersible to 9ft), IK10 (Impact Resistance)
• Environmental Testing: MIL-STD810G (Mechanical Shock and Vibration)
• Application: OnX6, S8, and XL Series

Notes

• It is recommended that no more than six (6) total LED cells be wired into a single primary wiring harness.
• Verify that the vehicle charging system and main harness fuse rating can support the combined wattage of both connected lights.
• This product is designed for 12V DC systems unless otherwise specified.
• Ensure all connectors are fully seated to maintain the IP69K environmental seal.
