2011-2025 GM HD Extreme-Duty Forged 7/8 Inch Drilled Steering Assembly Kit (158101120)

Description

Give your HD steering system a base that far exceeds the factory design. This complete Extreme-Duty kit is built for trucks running larger wheels and tires, more power, or hard use like drag racing, sled pulling, and off-roading, with everything needed to upgrade the factory 2500/3500 HD steering in one box.

Features

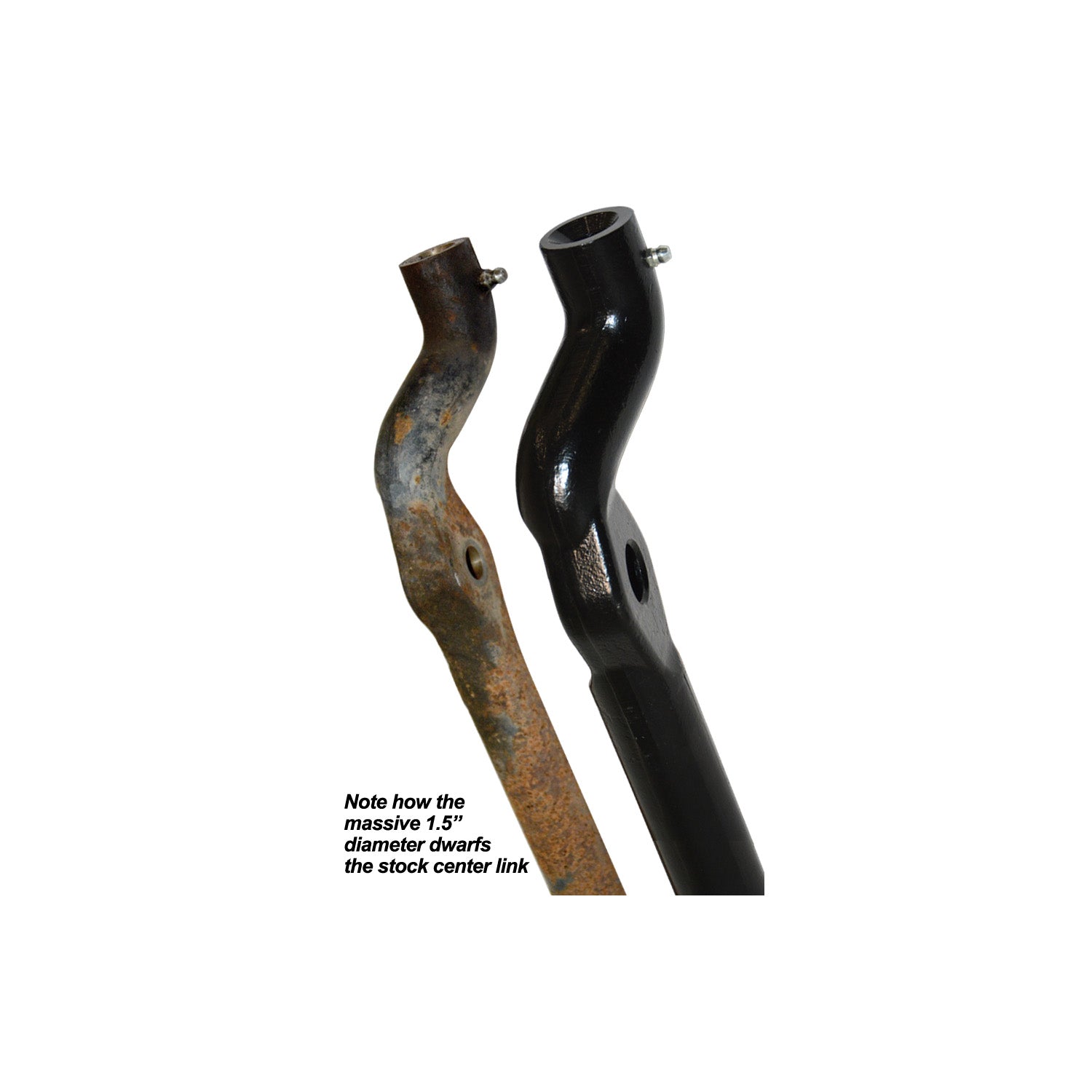

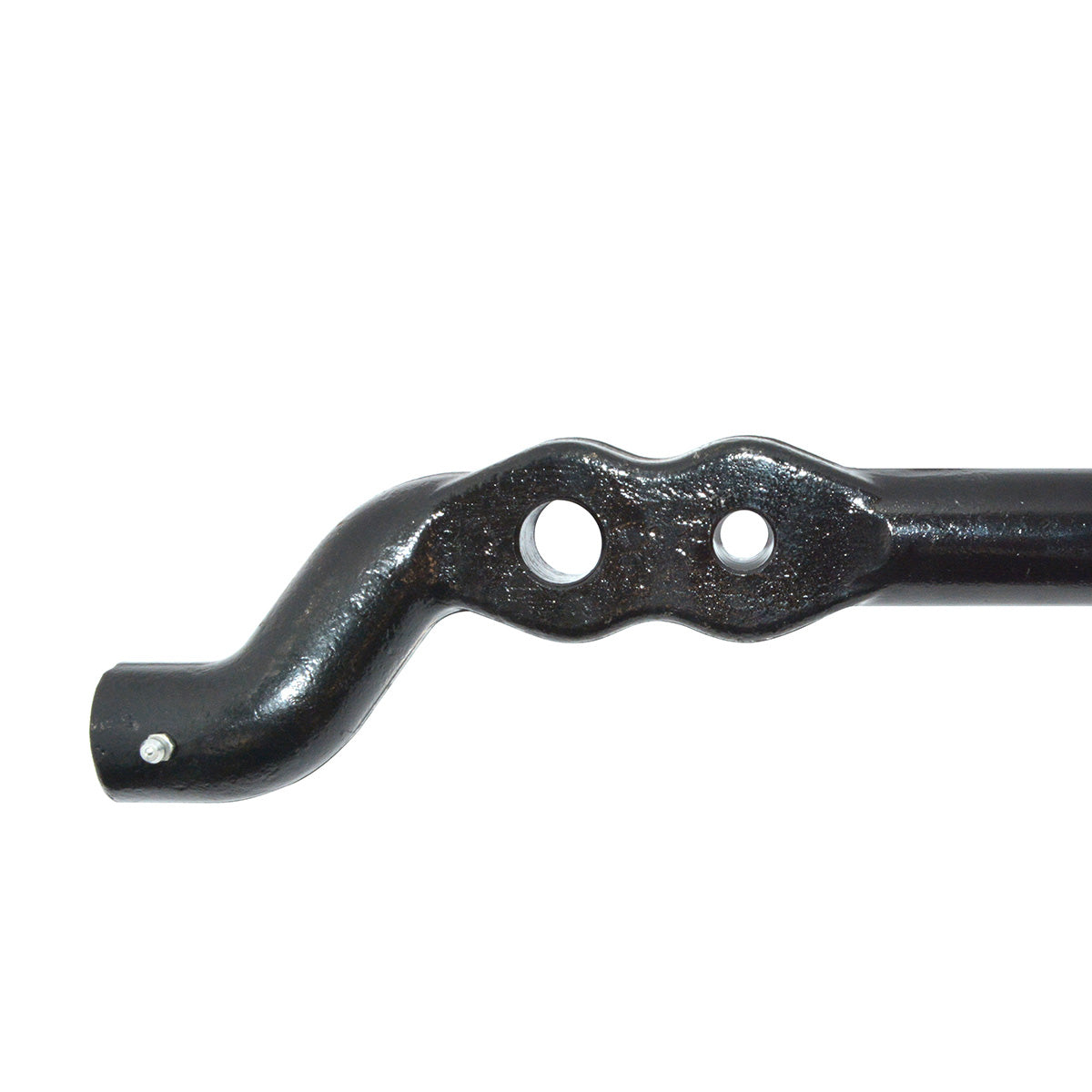

• Forged steel OE-style (dog-leg) center link, 1.5" diameter with a 7/8" drill

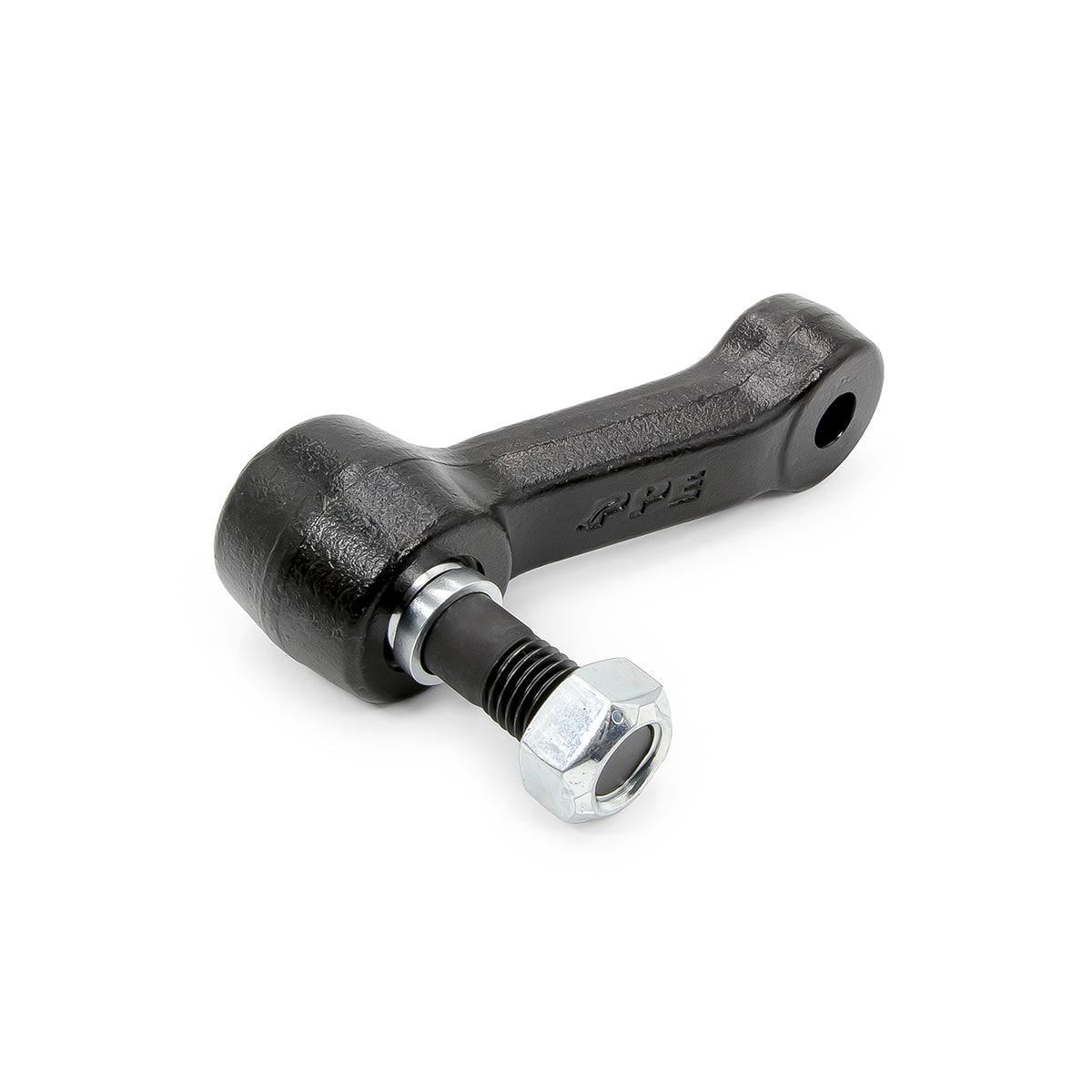

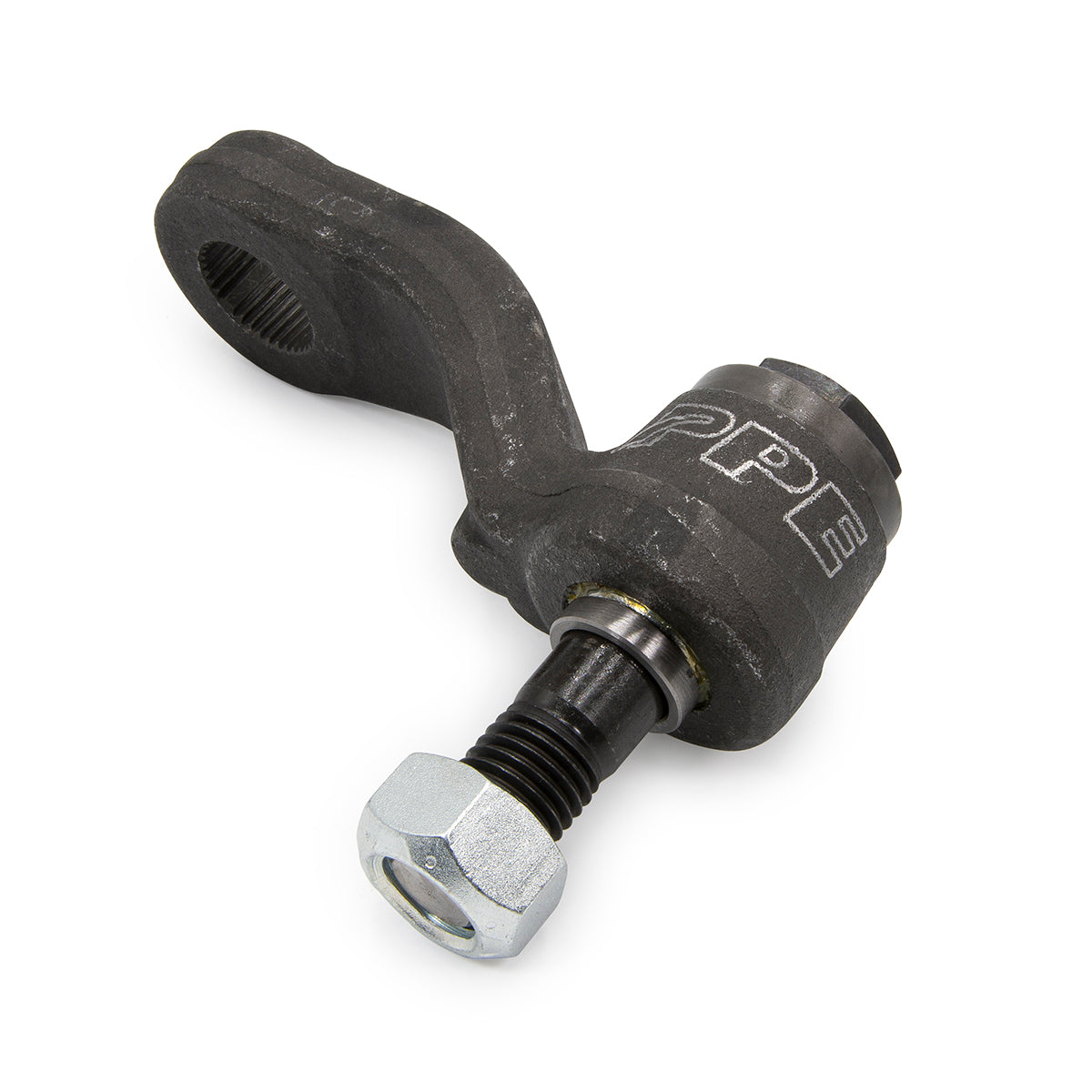

• Extreme-Duty forged pitman arm and idler arm, each with replaceable dual bearings

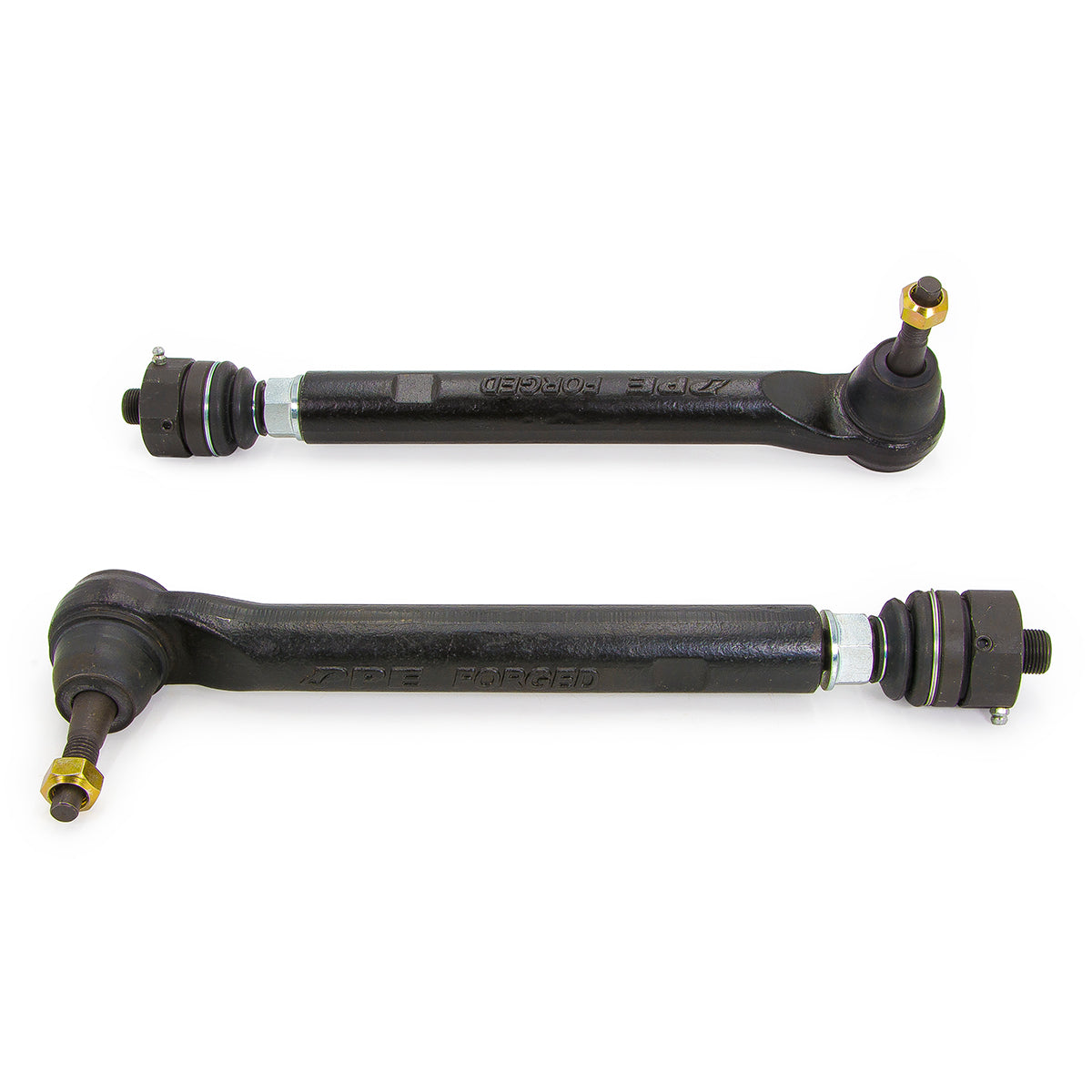

• Pair of Stage 3 forged tie rod assemblies with 1.5" wide rods and 2-1/3" ball joints
• Larger, stronger adjustable inner ball joint
• Spring-loaded gusher-bearing outer tie rod ends for constant pressure
• Includes a pitman arm puller for easy stock center-link removal

Notes

• Do not exceed 500 PSI when applying grease; over-pressuring can damage the grease caps, cause tie rod failure, and void the warranty.
