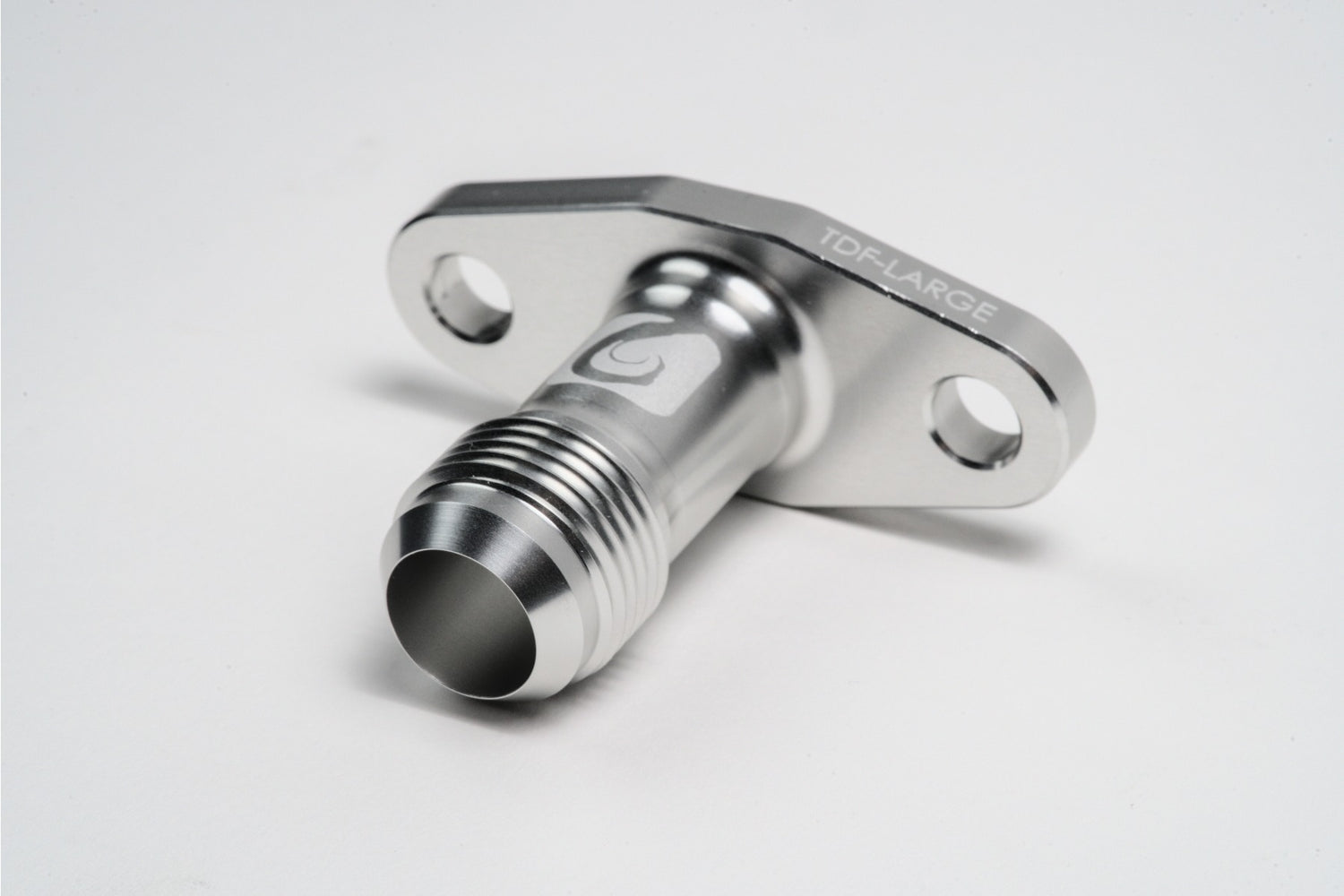

Universal Large Turbo Drain Flange -10AN (FR-TDF-LARGE-10AN-2.00)

The Full-Race -10AN Billet Oil Drain Flange is a high-performance component designed to solve the common issue of turbo oil drain leaks associated with traditional paper gaskets. Computer designed and CNC machined from durable aluminum, this flange features a specially machined O-ring groove that ensures a proper, leak-free seal. It is engineered for use with Precision and large Garrett turbochargers to ensure efficient oil return, which is crucial for turbo longevity.

Features

• Precision CNC manufacturing from 6061 billet aluminum.
• Features an O-ring groove for superior sealing, eliminating the need for paper gaskets or RTV sealant.
• Internal passages feature a gradual transition to optimize oil flow out of the turbo.
• Extended fitting height makes accessing the AN hose end easier for installation.
• Designed and machined in the USA.

Notes

• Kit includes one drain flange, one O-ring, O-ring lubricant, and M8 socket cap screws.
• Can be used with some BorgWarner AirWerks turbochargers by slightly enlarging the mounting holes.

Compatibility Notes

• Universal fit for Precision and Garrett GT40 or larger turbochargers.
• Features 2.00 inch bolt spacing, designed for M8x1.25 screws.

Specs

• Material: 6061 Billet Aluminum
• Fitting Type: -10 AN Male
• Bolt Spacing: 2.00 inches
• Hardware: M8x1.25 Screws
