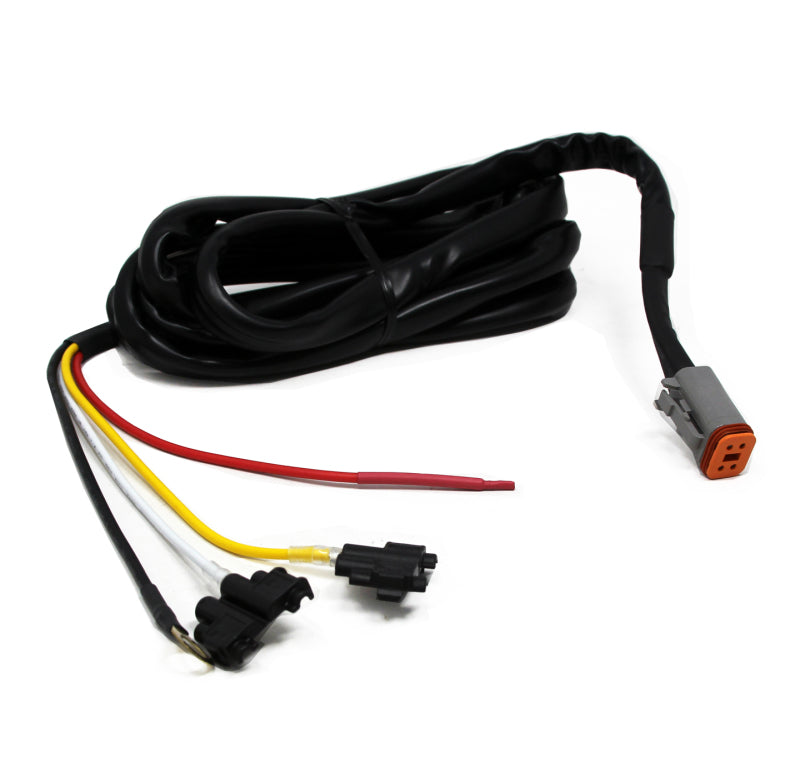

Universal LP4 Series Upfitter Harness Single Light (BAJ640188)

The LP4 Upfitter Single Light Wiring Harness is a specialized electrical solution engineered to integrate a single LP4 series LED light with factory-installed upfitter switches or aftermarket power distribution modules such as sPOD and Switch-Pros. This harness facilitates independent control of all primary LP4 functions, high beam, low beam, and amber backlighting, by providing dedicated leads that can be easily spliced into vehicle auxiliary circuits. Constructed with high-grade 14 AWG to 18 AWG conductors and weather-sealed Deutsch-style connectors, this harness ensures maximum signal integrity and durable performance in demanding off-road environments.

Features

• Designed for seamless integration with OEM upfitter switches and digital power modules.
• Provides independent control leads for high beam, low beam, and amber backlight functions.
• Pre-terminated with a heavy-duty Deutsch connector for a secure, vibration-resistant interface.
• Includes a ground ring terminal and color-coded splice leads for a simplified, professional installation.
• Eliminates the need for custom relay builds when using power-managed switch systems.

Specifications

• Application: LP4 Series LED Lights
• Current Capacity: Up to 11 Amps
• Wire Gauges: 14 AWG (High Beam/Ground), 16 AWG (Low Beam), 18 AWG (Backlight)
• Durability Standards: IP69K (Submersible and Pressure Washable)
• Environmental Resilience: Exceeds MIL-STD810G standards
• Impact Protection: IK10 Compliant
• Configuration: Single Light Control

Notes

• This harness is intended for use with power modules that provide circuit protection; it does not include an inline fuse or mechanical relay.
• Does not feature an internal high/low beam lock-out; if simultaneous circuit protection is required for non-managed systems, use part 640167.
• One harness is required per LP4 light pod.
