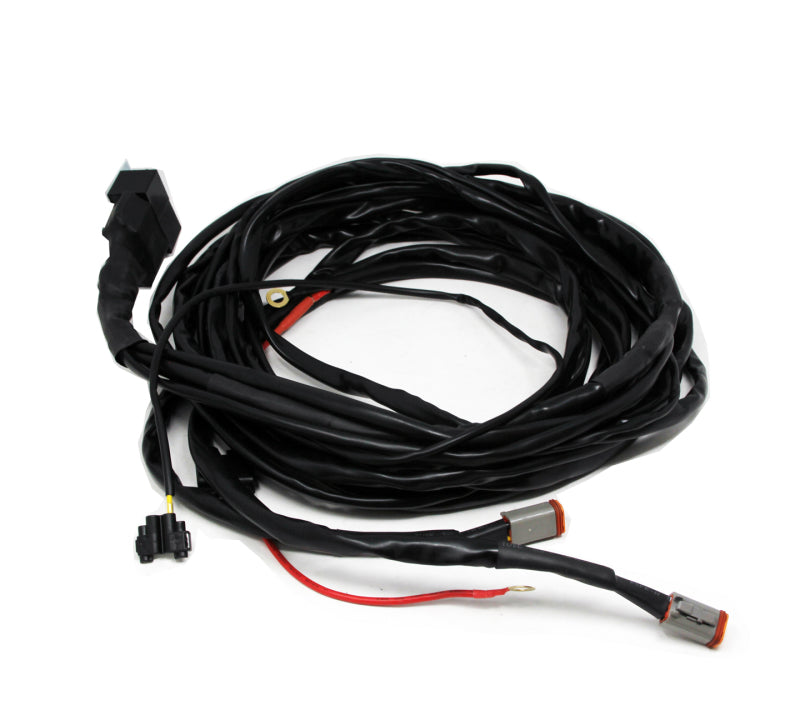

Universal LP6 LP9 Upfitter Lock Out Harness (BAJ640167)

The LP Series Upfitter Lock-Out Wiring Harness is a specialized electrical interface engineered for the safe integration of LP6 and LP9 series lights with factory upfitter switches or aftermarket power controllers like sPOD and Switch-Pros. This harness features integrated logic circuitry designed to prevent the simultaneous activation of high and low beam circuits, protecting the internal LED driver boards from potential damage. By managing the complex multi-function requirements of the LP series, including independent control of the amber backlight, low beam, and high beam, this harness ensures maximum performance and electrical safety for high-draw lighting systems.

Features

• Integrated lock-out protection prevents circuit overlap between high and low beams.
• Designed for seamless use with sPOD, Switch-Pros, and OEM upfitter switch panels.
• Dual-light output supports the synchronization of two LP-series LED pods.
• Heavy-duty construction with high-temperature sheathing for extreme environment durability.
• Plug-and-play connectors for secondary light functions including amber backlighting.
• Streamlined design eliminates the need for complex custom relay builds.

Specifications

• Application: LP4, LP6, and LP9 Series LED Lights
• System Voltage: 12V DC
• Circuit Logic: High/Low Lock-Out Protected
• Water Resistance: IP69K rated connectors
• Durability Standards: Exceeds MIL-STD810G requirements
• Impact Resistance: IK10 Compliant
• Configuration: 2-Light Max

Notes

• This harness is intended for vehicles already equipped with a power distribution system or factory switches; it does not include a standalone toggle switch.
• Using a non-lock-out wiring solution on LP series lights can result in voided warranties if both primary circuits are energized simultaneously.
• Ensure the power distribution system used is rated for the total amperage draw of the connected LP units.
