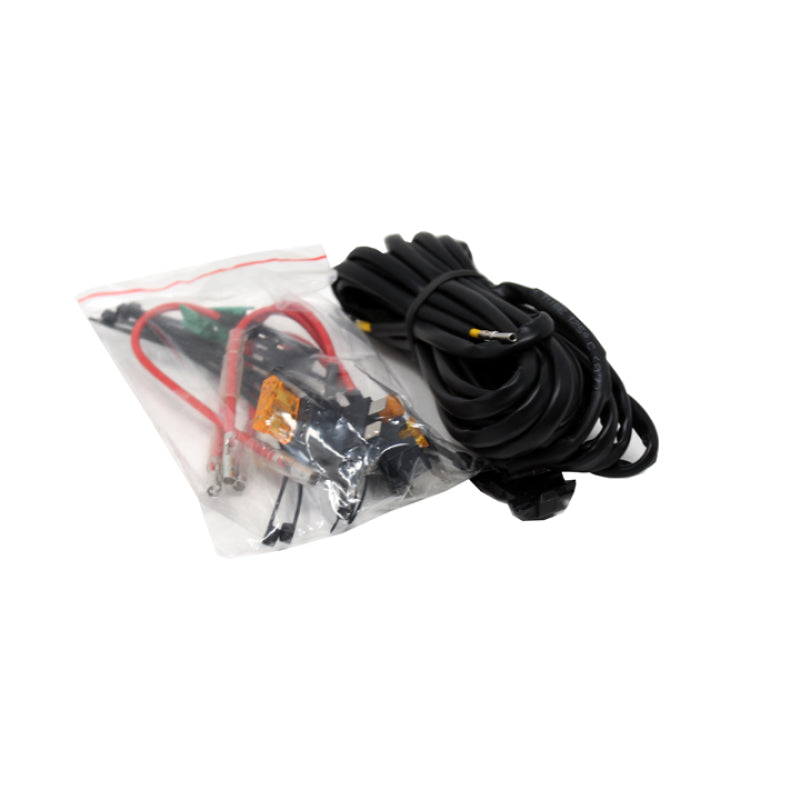

Universal LP9 LP6 LP4 Backlit Add-On Wiring Harness (BAJ640176)

The LP Backlit Add-On Wiring Harness is a specialized electrical accessory designed to enable the signature amber backlighting feature on LP-series lights when using an existing Squadron, S2, or S1 wiring harness. This adapter allows users to integrate the low-draw daytime running light (DRL) circuit without the need to replace their entire existing wiring infrastructure. By bridging the gap between standard 2-pin harnesses and the multi-function requirements of the LP4, LP6, and LP9 series, this add-on provides a clean and professional solution for maintaining aesthetic and functional consistency across a vehicle's lighting setup.

Features

• Enables amber backlighting/DRL functionality on LP-series lights using standard harnesses.
• Plug-and-play integration with existing 2-pin Baja Designs wiring assemblies.
• Weather-sealed connectors ensure a reliable, moisture-resistant electrical bond.
• Heat-resistant protective sheathing designed for engine bay and external environments.
• Simplified installation process avoids complex manual splicing or pinning.

Specifications

• Application: LP4 / LP6 / LP9 Series (All Variations)
• Compatibility: Standard 2-pin Squadron, S2, and S1 Wiring Harnesses
• Connector Type: Specialized LP Multi-pin to 2-pin Adapter
• Voltage: 12V DC compatible
• Water Resistance: IP69K Rated
• Durability Standards: Exceeds MIL-STD810G requirements
• Impact Resistance: IK10 Compliant

Notes

• This add-on is intended to provide power to the backlight circuit only; it does not enable high/low beam switching.
• One add-on harness is required per light pod being converted.
• Ensure the backlight trigger wire is connected to a switched ignition source or a dedicated dash switch to prevent parasitic battery drain.
• This will not work with LP Series Sport Models.
