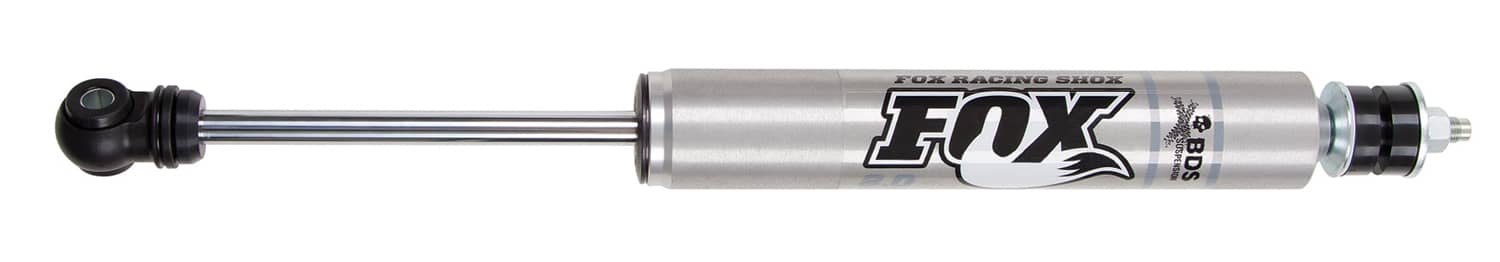

2019-2023 Ranger Fox 2.0 Performance Series Rear 2.5" Lift Shock (FOX98224880)

Upgrade the on-road comfort and off-road control of your 2019-2023 Ford Ranger 4WD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 2.5" lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

Features

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design


Specs

• Adjustable Damping : No
• Compressed Length : 16.75
• Extended Length : 26.35
• Finish : Clear-anodized
• Gas Charged : Yes
• Lower Mount Code : EB1
• Lower Mount Type : Eyelet
• Shaft Diameter : 5_8
• Travel Length : 9.6
• Type : Smooth Body
• Upper Mount Code : EB1
• Upper Mount Type : Eyelet
